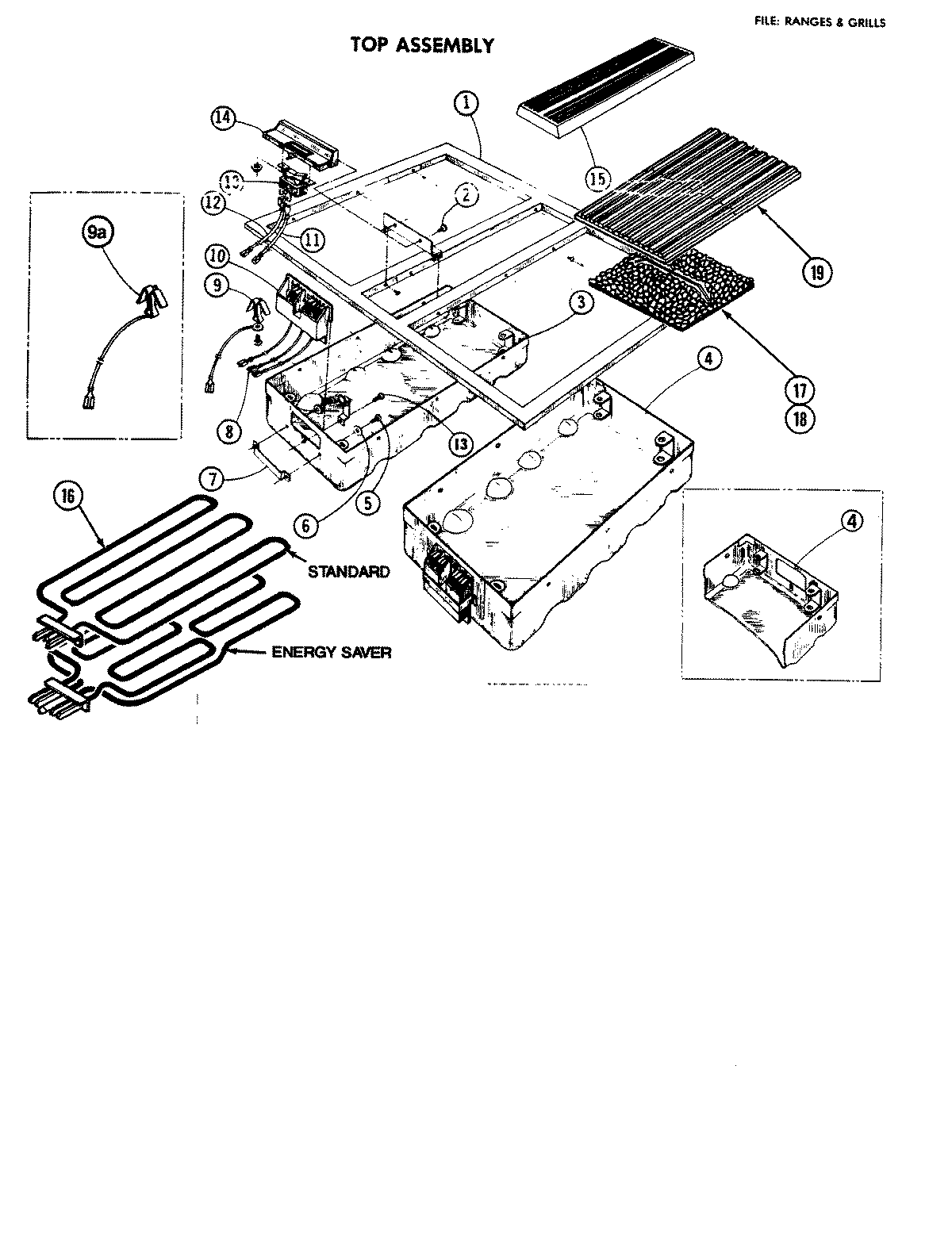

4770 07 – TOP ASSEMBLY

4770 07 – TOP ASSEMBLY

Written by

in

4770 07 – TOP ASSEMBLY

Products

PositionProduct
1TOP ASSEMBLY
1FILLER BRACKET
2SCREW
3GRILL PAN ASSEMBLY (LT)
4WP210720 Whirlpool Rivet
4GRILL PAN ASSEMBLY (RT)
474004835 Whirlpool Clip
5WP59002061 Whirlpool Microwave Screw
6WASHER
7BRACKET
8WIRE, YELLOW
8WIRE, RED
8GRILL PAN WIRE
8WIRE, BLACK
8WIRE, BLUE
9WP489128 Whirlpool Refrigerator Screw
9RECEPTACLE CONTACTS
9CONTACT ASSEMBLY
10RECEPTACLE
11WIRE, RED
12WIRE, BLUE
13SWITCH, FAN
14LOGO (KIT)
147103P166-60 Whirlpool Nut
15AIR GRILL
17PLATE, ROCK
18700819 Whirlpool Oven Element Support
19GRATE
