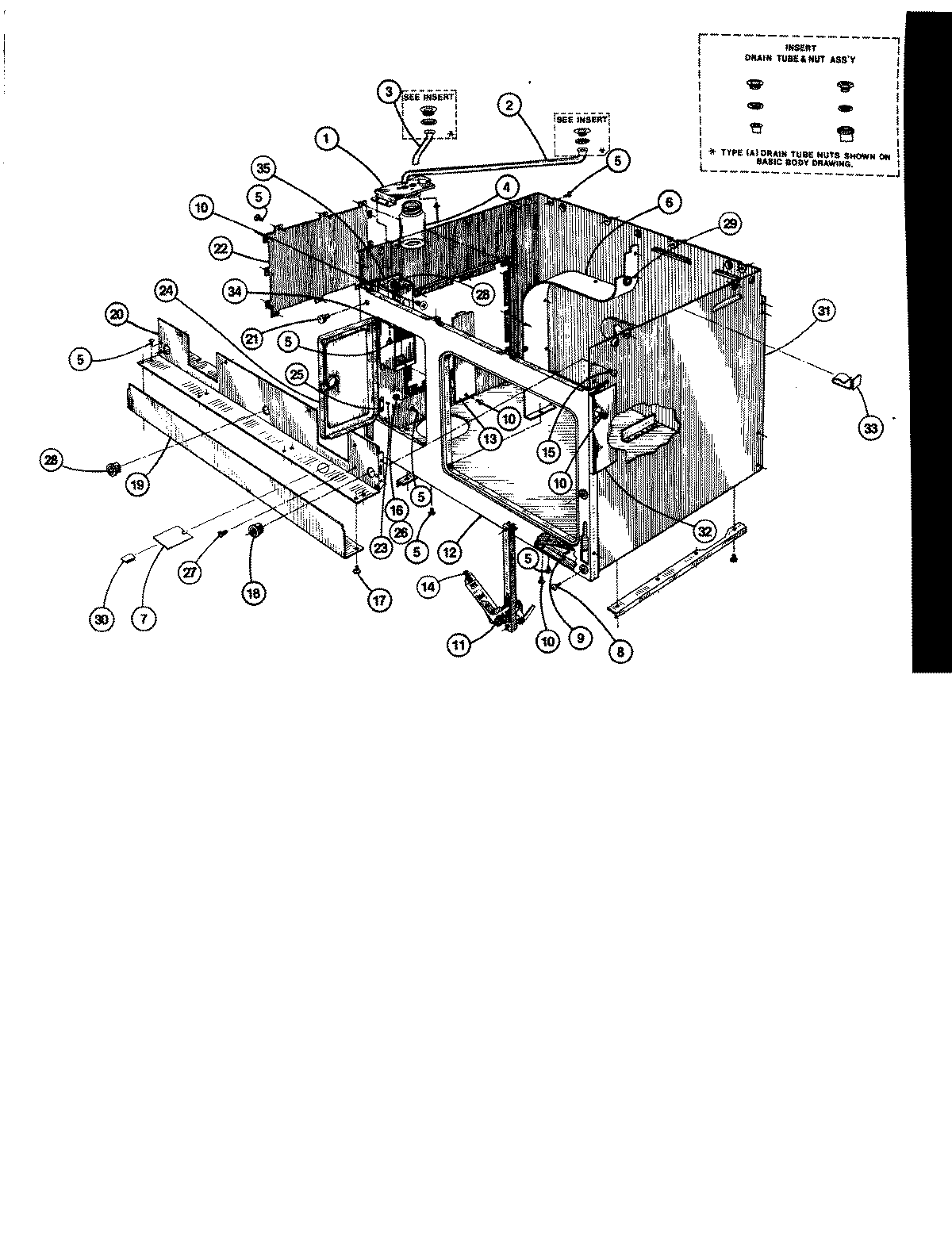

| 1 | JAR LID BRACKET ASSEMBLY |
| 2 | DRAIN TUBE ASSEMBLY |
| 3 | DRAIN TUBE NUT |
| 3 | O-RING |
| 3 | DRAIN TUBE (LEFT) |
| 4 | WPY707869 Whirlpool Drain Jar |
| 5 | SCREW |
| 6 | DIVIDER WALL |
| 7 | COVER |
| 8 | SCREW |
| 9 | FRONT SUPPORT |
| 10 | WP90767 Whirlpool Screw |
| 11 | NEW HINGE |
| 12 | FRONT CLOSURE |
| 13 | BOX COVER |
| 14 | SCREW 8A |
| 15 | SCREW |
| 16 | CATCH, DOOR |
| 18 | BUSHING |
| 19 | FEATURE PANEL ASSEMBLY |
| 20 | NO LONGER AVAILABLE |
| 21 | BUMPER, BUTTON |
| 22 | MOTOR ACCESS COVER |
| 23 | SCREW |
| 24 | NO LONGER AVAILABLE |
| 25 | TINNERMAN |
| 26 | NUT |
| 27 | WP71001171 Whirlpool Screw |
| 28 | BUSHING |
| 29 | GROMMET |
| 30 | J TINNERMAN |
| 31 | UNIT WRAP |
| 31 | SUPPORT RAIL |
| 31 | SCREW |
| 32 | SIDE TRIM |
| 35 | NOT REQUIRED PART OR SEE NOTE |
| 35 | WIRING GROMMET |
| 36 | SUPPORT RAIL |
