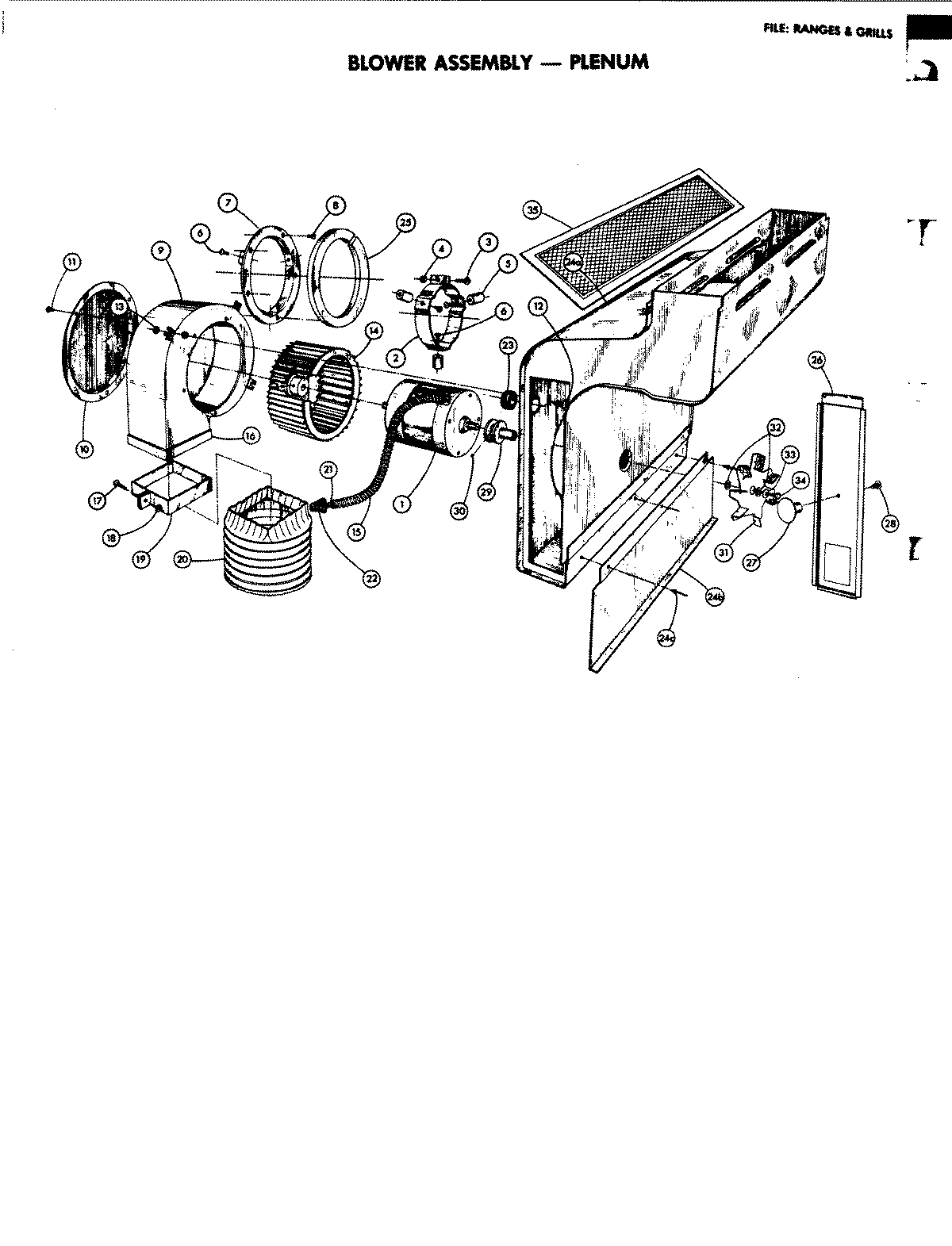

4775 02 – BLOWER ASSEMBLY/PLENUM

Products

Position	Product
1	MOTOR
2	3415F003-51 Whirlpool Motor Band
3	SCREW
5	ISOLATOR
7	INLET RING
8	SCREW
9	NO LONGER AVAILABLE
11	NOT REQUIRED PART OR SEE NOTE
12	SCREW
13	NUT
14	BLOWER WHEEL—-NA
15	CONDUIT
16	FOAM TAPE
17	SCREW
18	J TINNERMAN
19	NO LONGER AVAILABLE
20	DUCT, FLEX
21	BUSHING
22	CONNECTOR, CONDUIT
23	GROMMET
24	PLENUM ASSEMBLY
24	NO LONGER AVAILABLE
24	WP210720 Whirlpool Rivet
25	GASKET
26	PLENUM DOOR
27	DOOR KNOB
28	SCREW
29	CONVECTION WHEEL
30	SCREW, 1/4X20ST
31	COUPLING
31	CONVECTIVE WHEEL
32	FLAT WASHER
33	LOCK WASHER
34	CAP SCREW
35	WP71002111 Whirlpool Grease Filter
