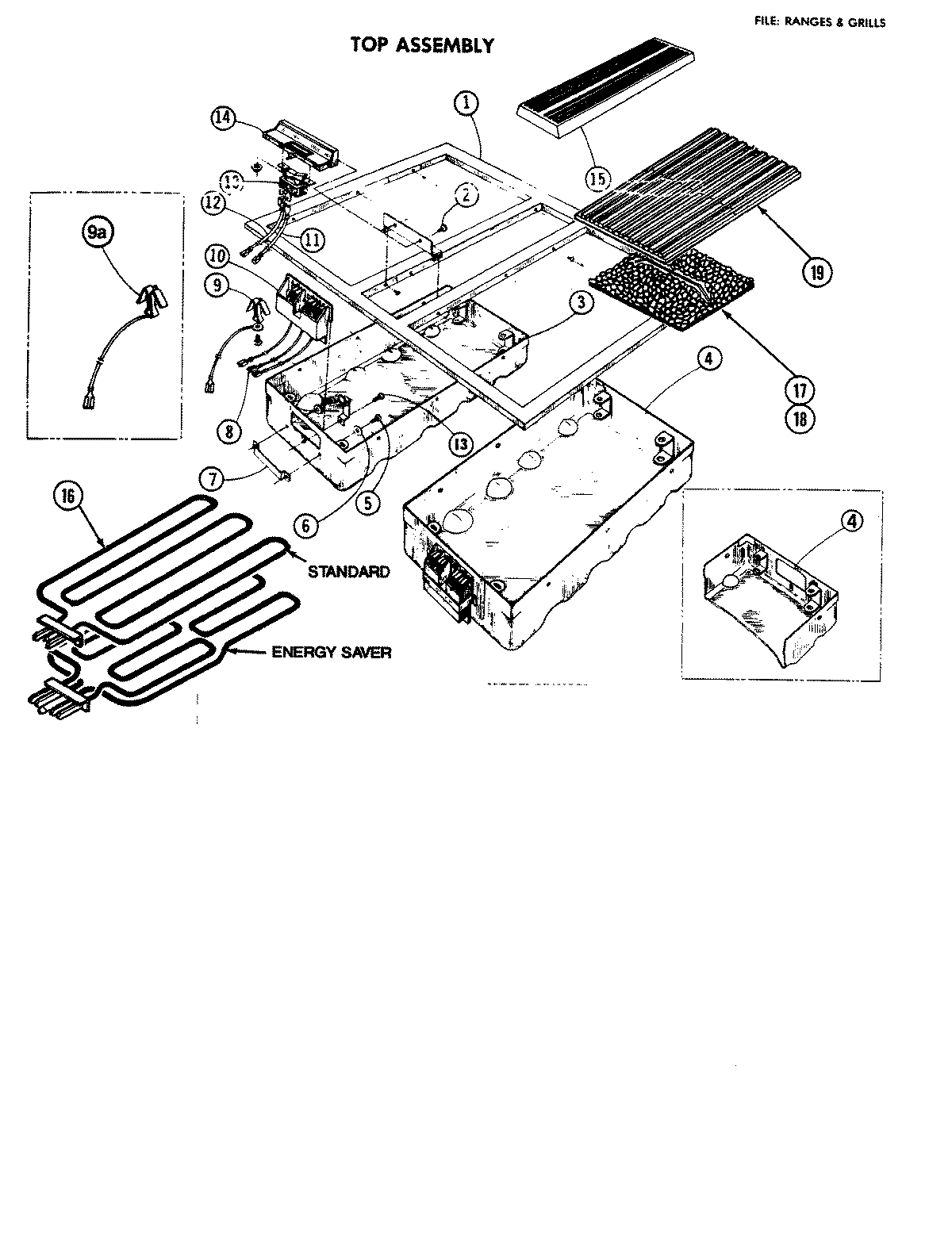

4790 06 – TOP ASSEMBLY

Products

Position	Product
1	TOP ASSEMBLY
1	FILLER BRACKET
2	SCREW
3	GRILL PAN ASSEMBLY (LT)
4	WP210720 Whirlpool Rivet
4	GRILL PAN ASSEMBLY (RT)
4	74004835 Whirlpool Clip
5	WP59002061 Whirlpool Microwave Screw
6	WASHER
7	BRACKET
8	WIRE, RED
8	WIRE, YELLOW
8	GRILL PAN WIRE
8	WIRE, BLUE
8	WIRE, BLACK
9	RECEPTACLE CONTACTS
9	CONTACT ASSEMBLY
9	WP489128 Whirlpool Refrigerator Screw
10	RECEPTACLE
11	WIRE, RED
12	WIRE, BLUE
13	SWITCH, FAN
14	7103P166-60 Whirlpool Nut
14	LOGO (KIT)
15	AIR GRILL
16	NOT REQUIRED PART OR SEE NOTE
17	PLATE, ROCK
18	700819 Whirlpool Oven Element Support
19	GRATE
