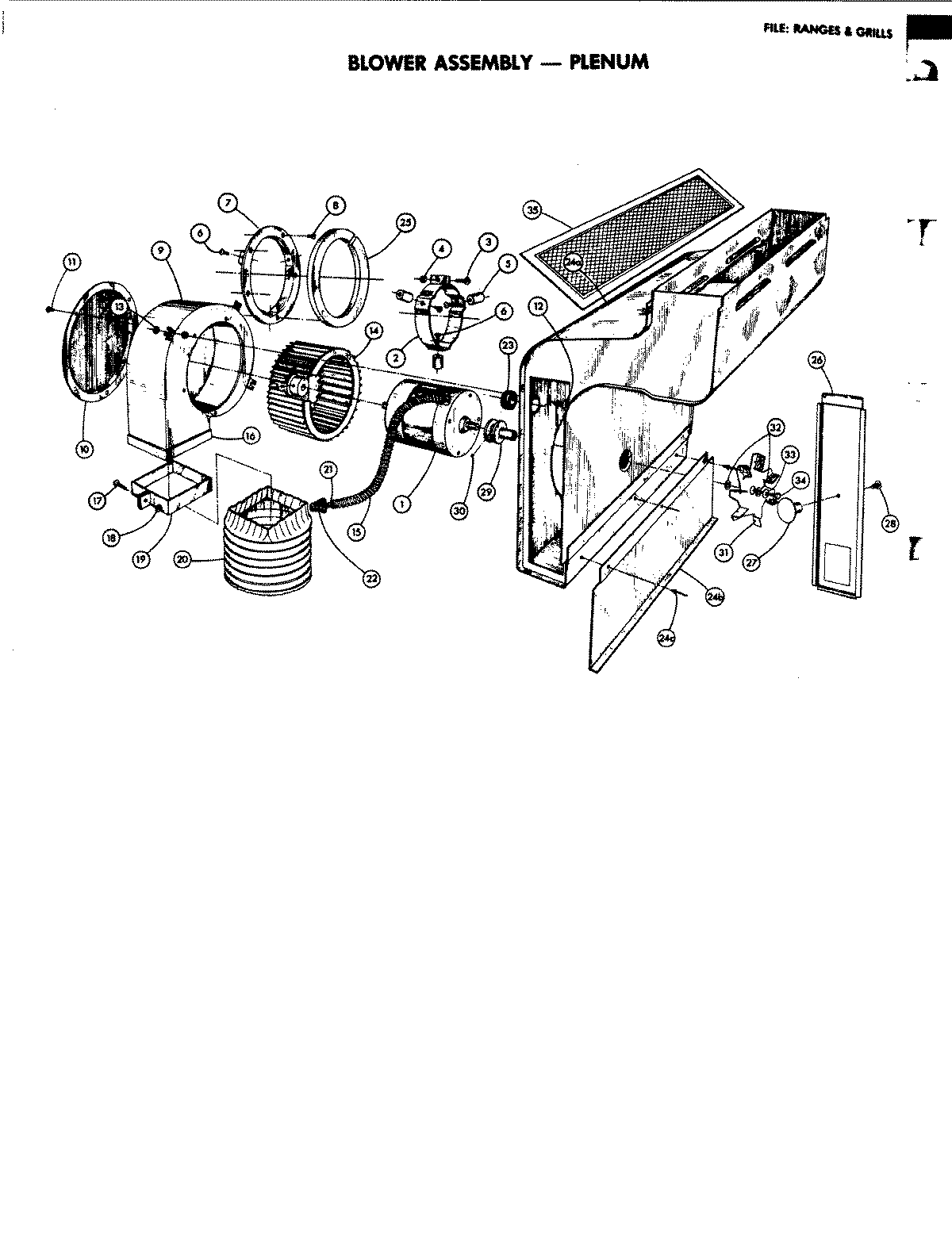

4860 01 – BLOWER ASSEMBLY

Products

Position	Product
1	MOTOR
2	3415F003-51 Whirlpool Motor Band
3	SCREW
5	ISOLATOR
7	INLET RING
8	SCREW
9	NO LONGER AVAILABLE
11	NOT REQUIRED PART OR SEE NOTE
12	SCREW
13	NUT
14	BLOWER WHEEL----NA
15	CONDUIT
16	FOAM TAPE
17	SCREW
18	J TINNERMAN
19	NO LONGER AVAILABLE
20	DUCT, FLEX
21	BUSHING
22	CONNECTOR, CONDUIT
23	GROMMET
24	NO LONGER AVAILABLE
24	LOWER PLENUM
24	PLENUM ASSEMBLY
24	WP210720 Whirlpool Rivet
25	GASKET
25	PLENUM DOOR
26	DOOR
27	DOOR KNOB
28	SCREW
28	CONVECTION WHEEL
29	COUPLING
29	COUPLING
30	SET SCREW
30	SCREW, 1/4X20ST
31	CONVECTIVE WHEEL
32	FLAT WASHER
33	LOCK WASHER
34	CAP SCREW
35	WP71002111 Whirlpool Grease Filter
