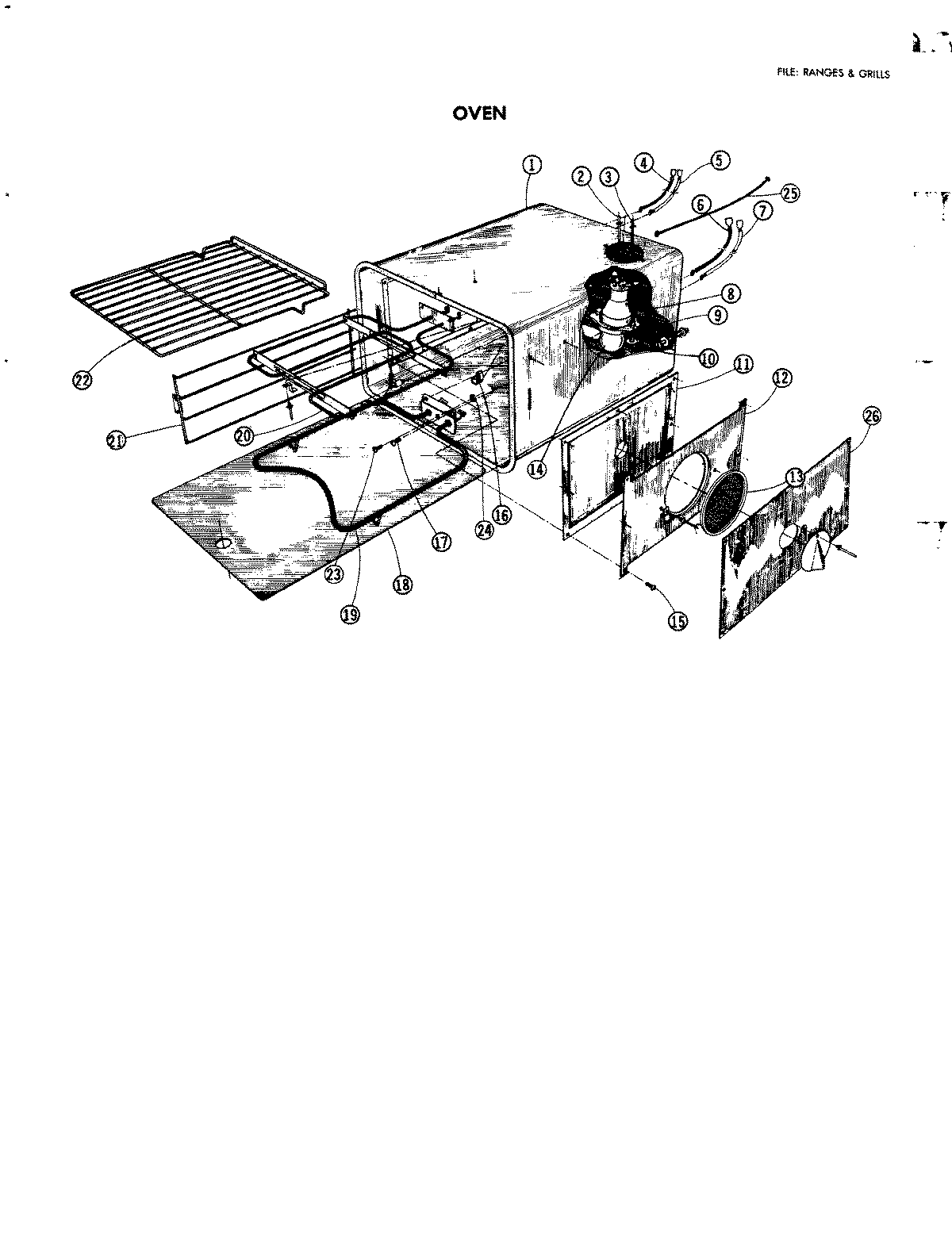

4860 04 – OVEN

Products

Position	Product
1	OVEN ASSEMBLY
1	FILTER RETAINER CLIP
1	SUPPORT BRACKET
1	WASHER (TEFLON)
1	OVEN BOLT
1	SPACER
1	NUT, TEE
2	WIRE, WHITE
3	WIRE, BLACK
4	WIRE, RED
5	WIRE, YELLOW
6	WIRE, BROWN
7	WIRE, BLUE
8	RECEPTACLE, LIGHT
9	7101P345-60 Whirlpool M Screw Assembly
10	WASHER
14	RANGE ONLY 40W 120V APPL BULB
15	SCREW
16	WP7112P004-60 Whirlpool Thermal Clip
17	WP179051 Whirlpool Screw
18	OVEN BOTTOM
19	WP715269 Whirlpool Bake Element
20	ELEMENT, BROIL
21	RACK SUPPORT
22	OVEN RACK
23	SCREW
24	M0282005 Whirlpool Nut
25	WIRE, GREEN
26	OVEN PANEL ASSEMBLY
26	TEFLON WASHER
26	VENT PLATE
26	WP210720 Whirlpool Rivet
26	INSULATION WRAP
26	INSULATION BACK
27	4396923 Whirlpool Broil Pan Set Gray Porcelain
