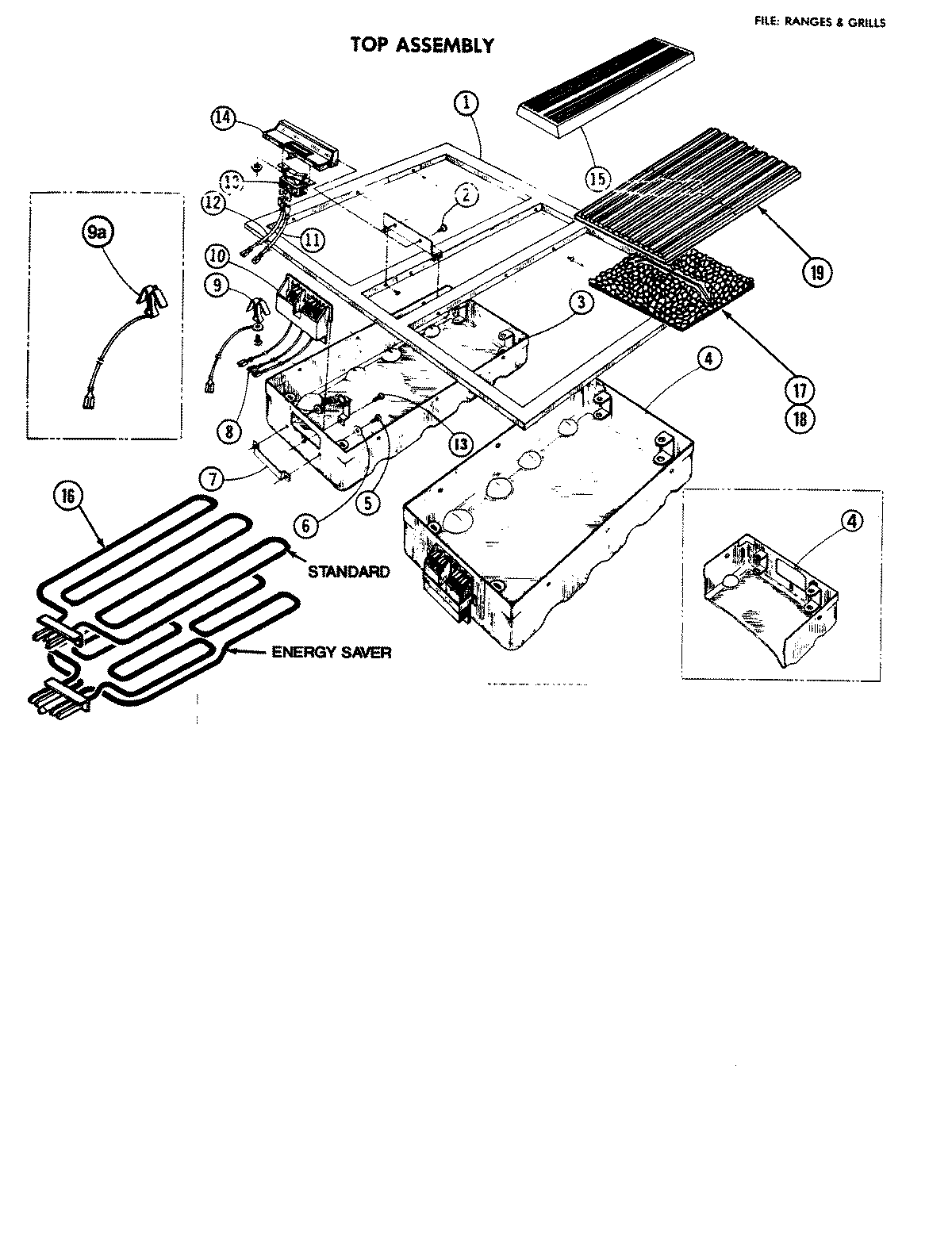

4860 07 – TOP ASSEMBLY

Products

Position	Product
1	FILLER BRACKET
1	TOP ASSEMBLY
2	SCREW
3	GR PAN BROWN
4	SCREW
4	GRILL PAN
4	74004835 Whirlpool Clip
4	REVERSE PAN
4	INS TERM BLK
4	WP210720 Whirlpool Rivet
5	WP59002061 Whirlpool Microwave Screw
6	WASHER
7	BRACKET
8	WIRE, RED
8	GRILL PAN WIRE
8	WIRE, YELLOW
8	WIRE, BLACK
8	WIRE, BLUE
9	WIRE, RED
9	WIRE, BLACK
9	RHWR ASY KT
9	LHWR ASY KT
9	LN BLUE WR ASSY 4800
9	WP5708M008-60 Whirlpool Dishwasher Wire Harness
9	WP5708M007-60 Whirlpool Wire Harness
9	WP489128 Whirlpool Refrigerator Screw
9	WP5708M005-60 Whirlpool Wire Harness
9	WP5708M081-60 Whirlpool Wire Harness
9	CONTACT ASSEMBLY
9	RECEPTACLE CONTACTS
10	RECEPTACLE
11	WIRE, RED
12	WIRE, BLUE
13	SWITCH, FAN
14	7103P166-60 Whirlpool Nut
14	LOGO (KIT)
15	AIR GRILL
15	AIR GRILL
16	ELEMENT, GRILL
16	ELEMENT COMPLETE, 240V
17	PLATE, ROCK
18	700819 Whirlpool Oven Element Support
19	GRATE
