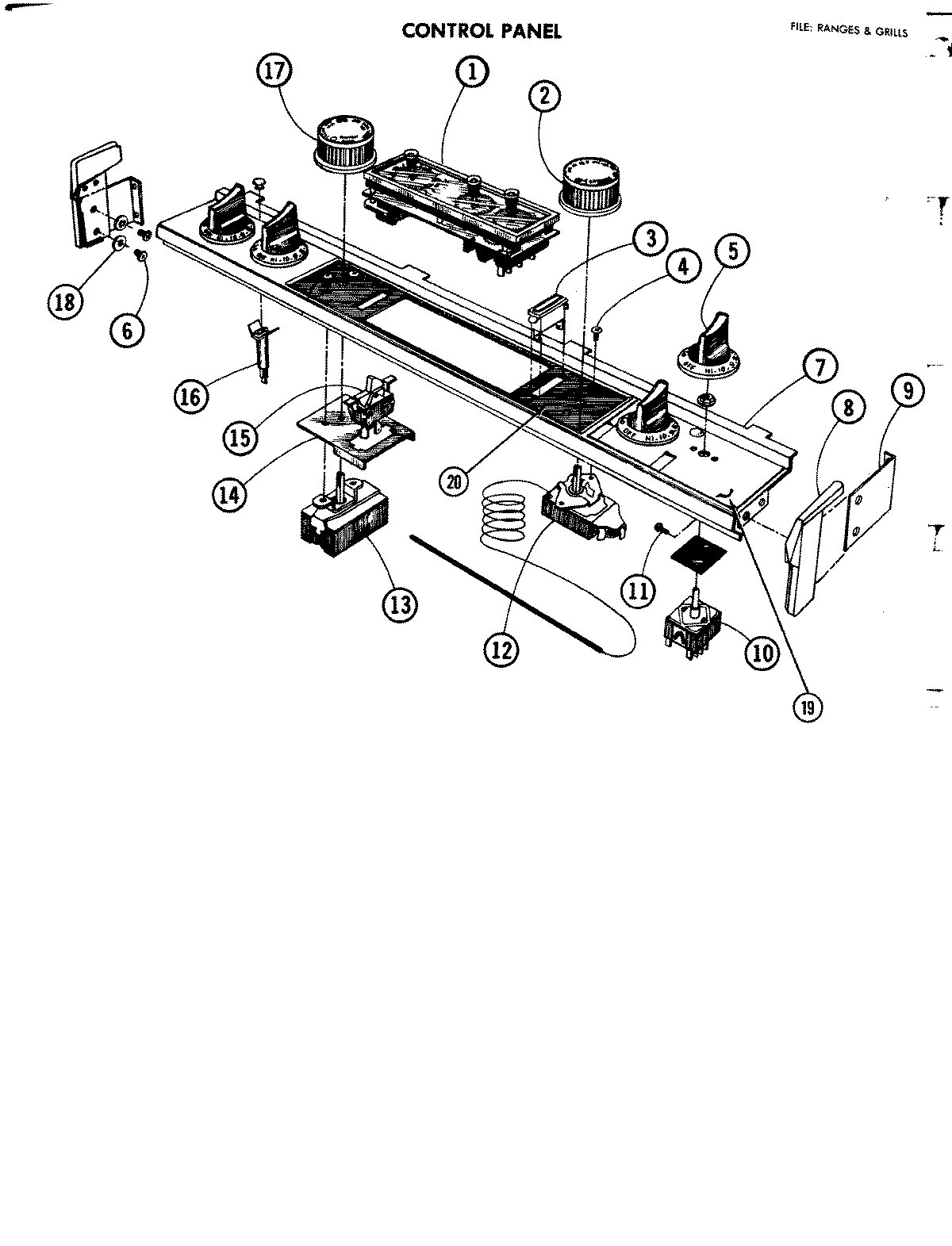

4870 03 – CONTROL PANEL

Products

Position	Product
1	KNOB
1	CLOCK 7
1	CLOCK GLASS
1	CLOCK BEZEL
2	KNOB THERMO
3	PILOT LIGHT—-NA
4	SCREW
5	WPY700854 Whirlpool Oven Burner Knob
7	CONTROL PANEL
7	SCREW
7	FEATURE PANEL
8	END CAP LH
8	END CAP RH
9	BRACKET
10	WP3188425 Whirlpool Seal Switch
10	WP489128 Whirlpool Refrigerator Screw
10	700855K Whirlpool Oven Cooktop Burner Switch
12	THERMOSTAT
13	SELECTOR SWITCH
14	BRACKET
15	SWITCH, FAN
16	715396K Whirlpool Indicator Light Kit
17	WIRE LABEL
17	WIRING LABEL
17	WIRE HARNESS
17	KNOB SELECTOR SWITCH
17	LABEL 88369
18	WASHER, LOCK
19	DECAL INFINITE SWITCH
20	DECAL, CONTROL PANEL
20	DECAL, CONTROL PANEL
20	RED WIRE, JUCTION BOX
20	BLACK WIRE, JUNCTION BOX
