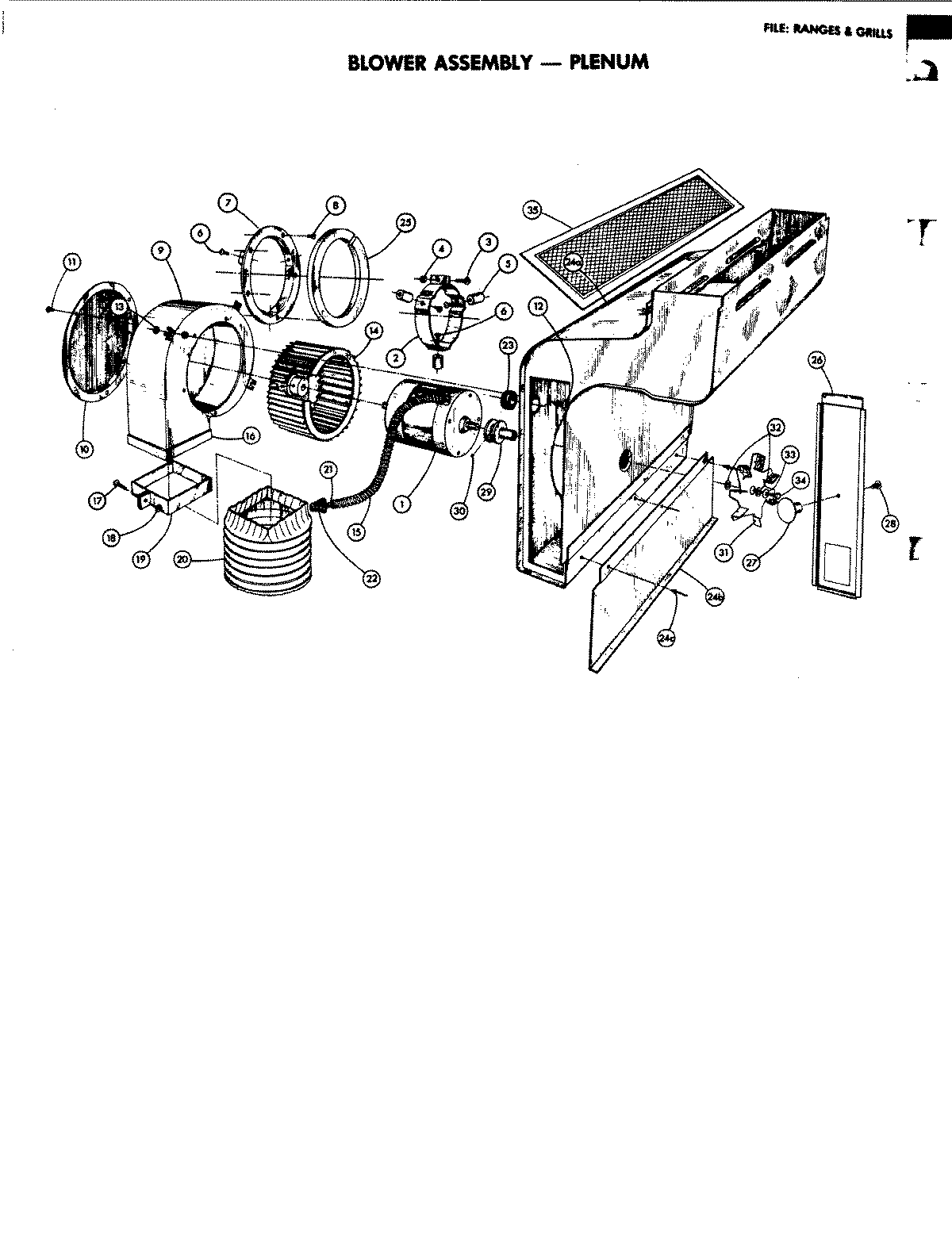

4890 02 – BLOWER ASSEMBLY/PLENUM

Products

Position	Product
1	MOTOR
2	BAND, MOTOR
3	SCREW
5	ISOLATOR
7	INLET RING
9	SCROLL
10	COVER-BLOWER HSG. COVER
11	SCREW
12	SCREW
13	NUT
14	WHEEL, BLOWER
15	CONDUIT
16	FOAM TAPE
17	SCREW
18	J TINNERMAN
19	NO LONGER AVAILABLE
20	DUCT, FLEX
21	BUSHING
22	CONNECTOR, CONDUIT
23	GROMMET
24	LOWER PLENUM
24	WP210720 Whirlpool Rivet
24	NO LONGER AVAILABLE
24	PLENUM ASSEMBLY
25	GASKET
26	PLENUM DOOR
26	DOOR
27	DOOR KNOB
28	SCREW
29	COUPLING
30	SET SCREW
31	CONVECTIVE WHEEL
32	FLAT WASHER
33	LOCK WASHER
34	CAP SCREW
35	WP71002111 Whirlpool Grease Filter
