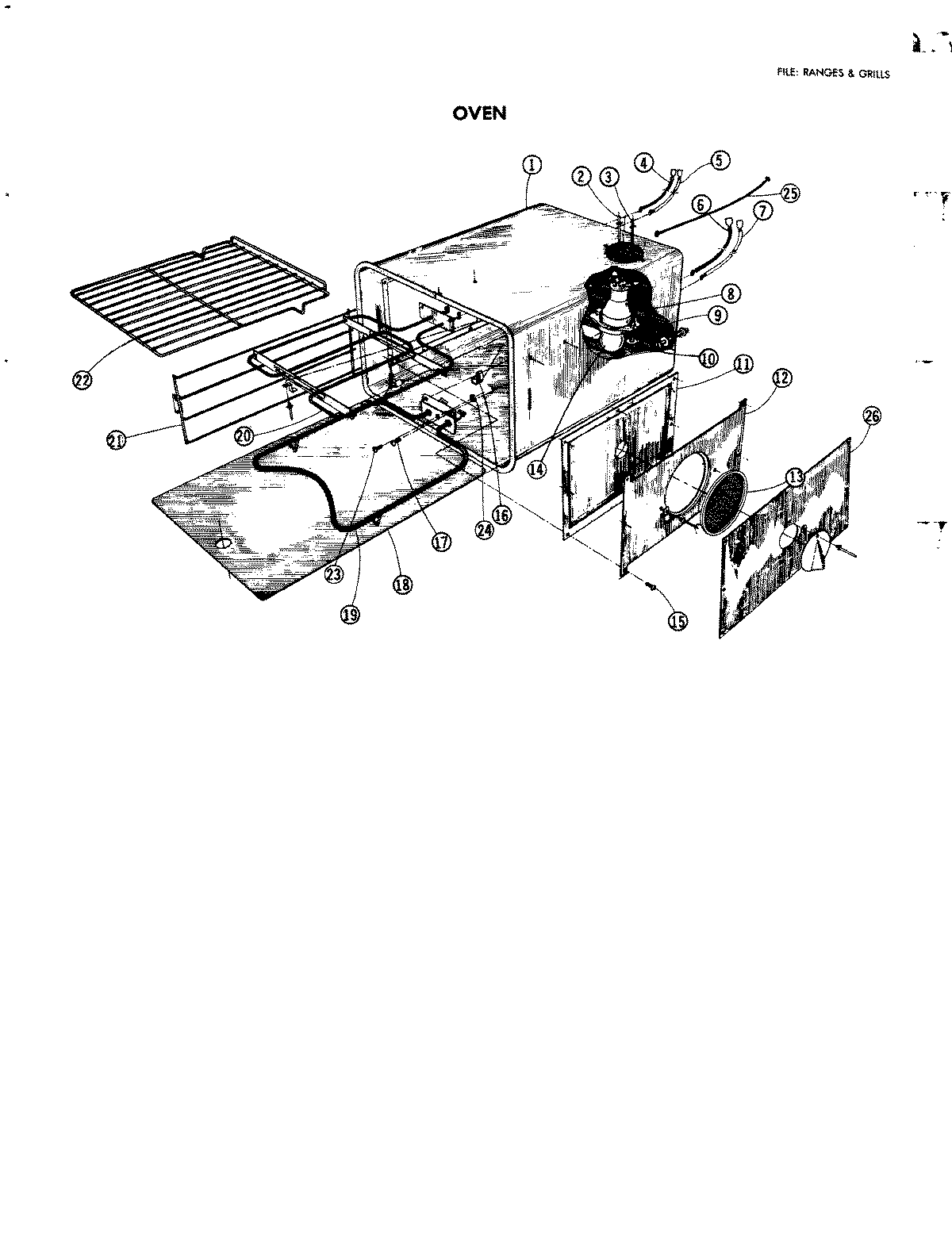

4890 04 – OVEN

Products

Position	Product
1	NUT, TEE
1	SPACER
1	OVEN ASSEMBLY
1	OVEN BOLT
1	SUPPORT BRACKET
3	WIRE, WHITE
4	WIRE, BLACK
5	WIRE, RED
6	WIRE, YELLOW
7	WIRE, BROWN
8	WIRE, BLUE
9	RECEPTACLE, LIGHT
10	WASHER
10	7101P345-60 Whirlpool M Screw Assembly
11	SPLITTER
11	BLOWER HOUSING ASSEMBLY
12	FILTER RETAINER CLIP
12	CONTROL PANEL ASSEMBLY
12	WASHER (TEFLON)
12	WP210720 Whirlpool Rivet
13	CONVECTIVE FILTER
14	RANGE ONLY 40W 120V APPL BULB
15	SCREW
16	WP7112P004-60 Whirlpool Thermal Clip
17	WP179051 Whirlpool Screw
18	OVEN BOTTOM
19	WP715269 Whirlpool Bake Element
20	ELEMENT, BROIL
21	RACK SUPPORT
22	OVEN RACK
23	SCREW
24	M0282005 Whirlpool Nut
25	WIRE, GREEN
26	INSULATION WRAP
26	INSULATION BACK
27	4396923 Whirlpool Broil Pan Set Gray Porcelain
