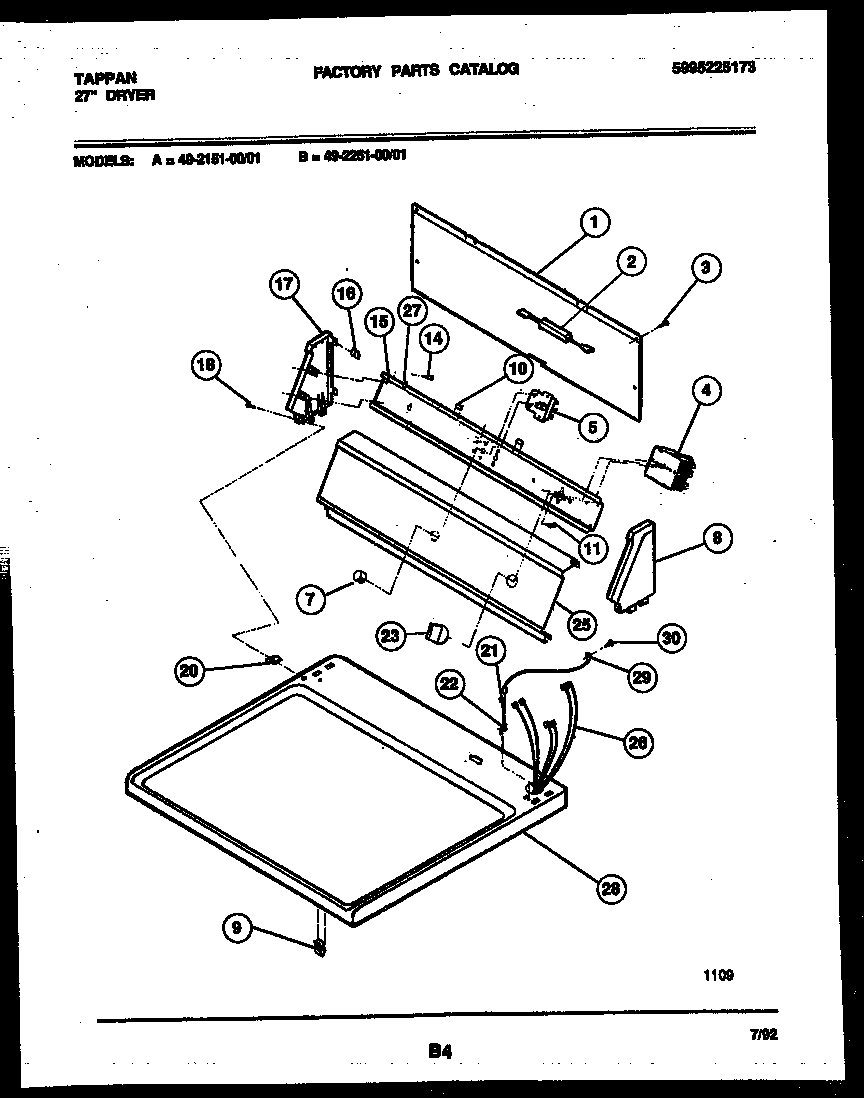

49-2151-23-01 04 – CONSOLE AND CONTROL PARTS

49-2151-23-01 04 – CONSOLE AND CONTROL PARTS

Written by

in

49-2151-23-01 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
4WCI 5303290977
5SWITCH – START
7WCI 3201220
8WCI 3205978
93205821 Frigidaire Clip
10PAD (2)
11218359202 Frigidaire Refrigerator Screw
145303015671 Frigidaire Bracket Termination Screw
15WCI 5303285145
16CLIP (8)
17WCI 3205979
18WCI 5303289526
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 5303270992
25WCI 131029500
26A5303303590 Frigidaire Dryer 4.0" Cable Tie
26WCI 131005400
27WCI 3281200
29WCI 3201308
30SCREW (2)
