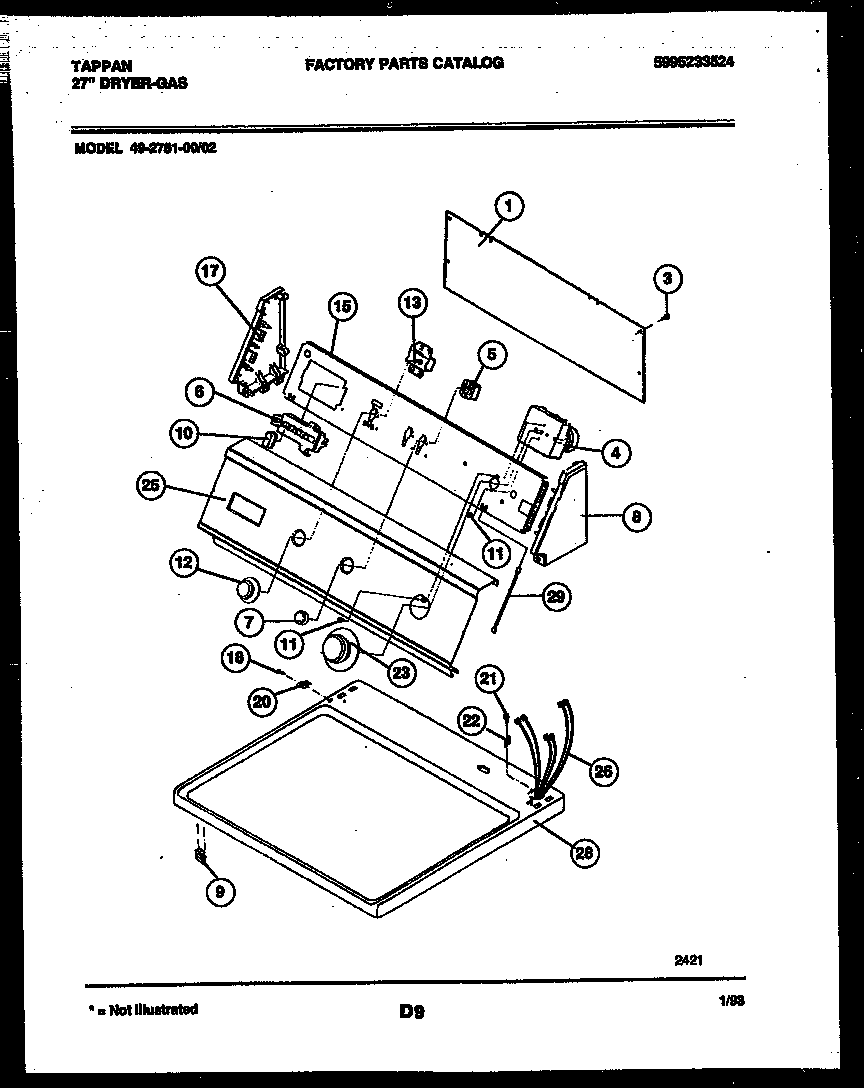

49-2751-00-02 04 – CONSOLE AND CONTROL PARTS

49-2751-00-02 04 – CONSOLE AND CONTROL PARTS

Written by

in

49-2751-00-02 04 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
1COVER-BACK
3131205100 Frigidaire Screw
4WCI 131062700
5WCI 131048000
6WCI 131048200
7WCI 131032901
8WCI 5303291351
93205821 Frigidaire Clip
10PUSHBUTTON (4)
11218359202 Frigidaire Refrigerator Screw
12WCI 131032501
13WCI 131048300
15WCI 5303291355
17WCI 5303291343
18WCI 3205820
20CLIP
21131243800 Frigidaire Screw
22WCI 5379171000
23WCI 131030801
25WCI 131059200
26WCI 131017800
28PANEL-TOP-WHITE
29WCI 3201385
