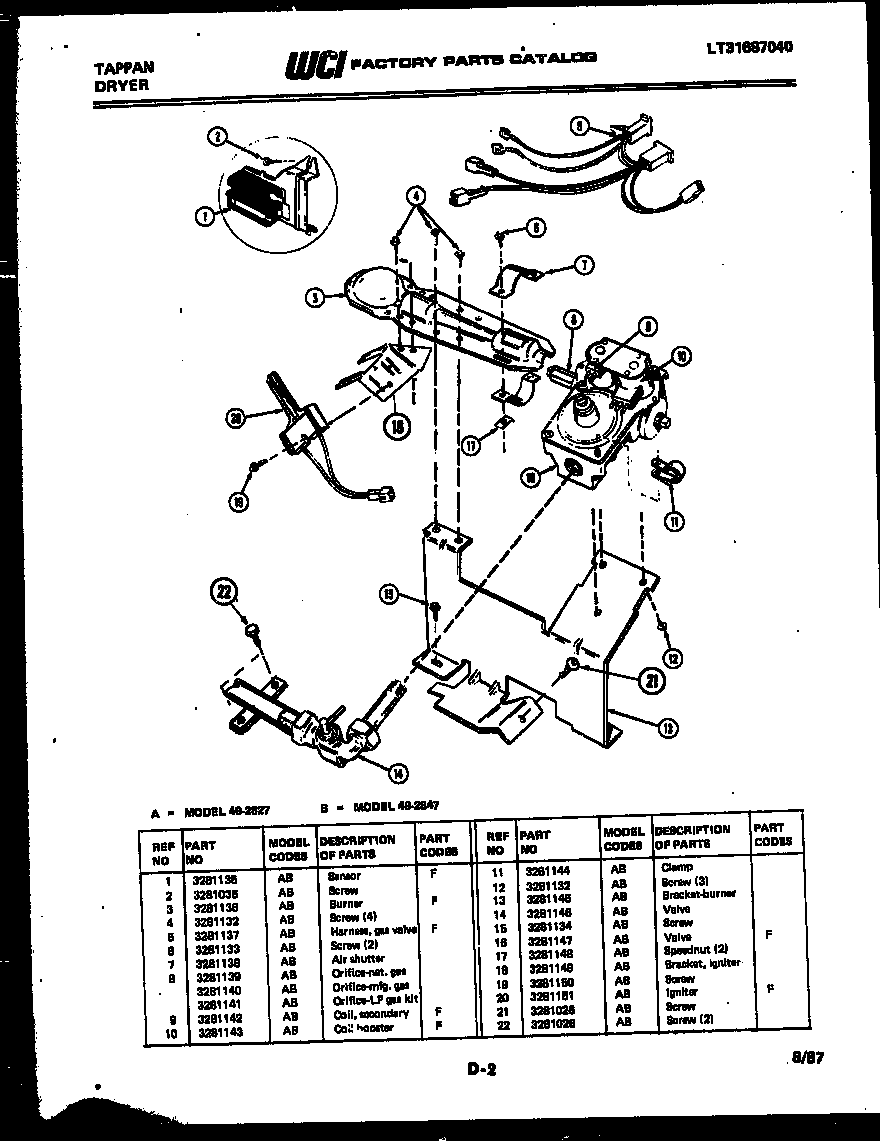

49-2847-00-01 05 – BURNER, IGNITER AND VALVE

49-2847-00-01 05 – BURNER, IGNITER AND VALVE

Written by

in

49-2847-00-01 05 – BURNER, IGNITER AND VALVE

Products

PositionProduct
15303281135 Frigidaire Gas Dryer Flame Sensor Radiant
2SCREW (2)
3134264900 Frigidaire Burner
5HARNESS (1)
6WCI 3281133
7AIR SHUTTER (2)
8AWCI 3281140
8WCI 3281139
8BWCI 3281141
95303931775 Frigidaire Dryer Coil Kit
11240396801 Frigidaire Refrigerator Tube Clamp
12131243800 Frigidaire Screw
13WCI 3281145
14ANGLE VALVE (1)
15SCREW
16VALVE (1)
17NUT (2)
18BRACKET-IGNITOR (1)
19SCREW (1)
205303937186 Frigidaire Dryer Flat Igniter Assembly
22SCREW-VALVE
