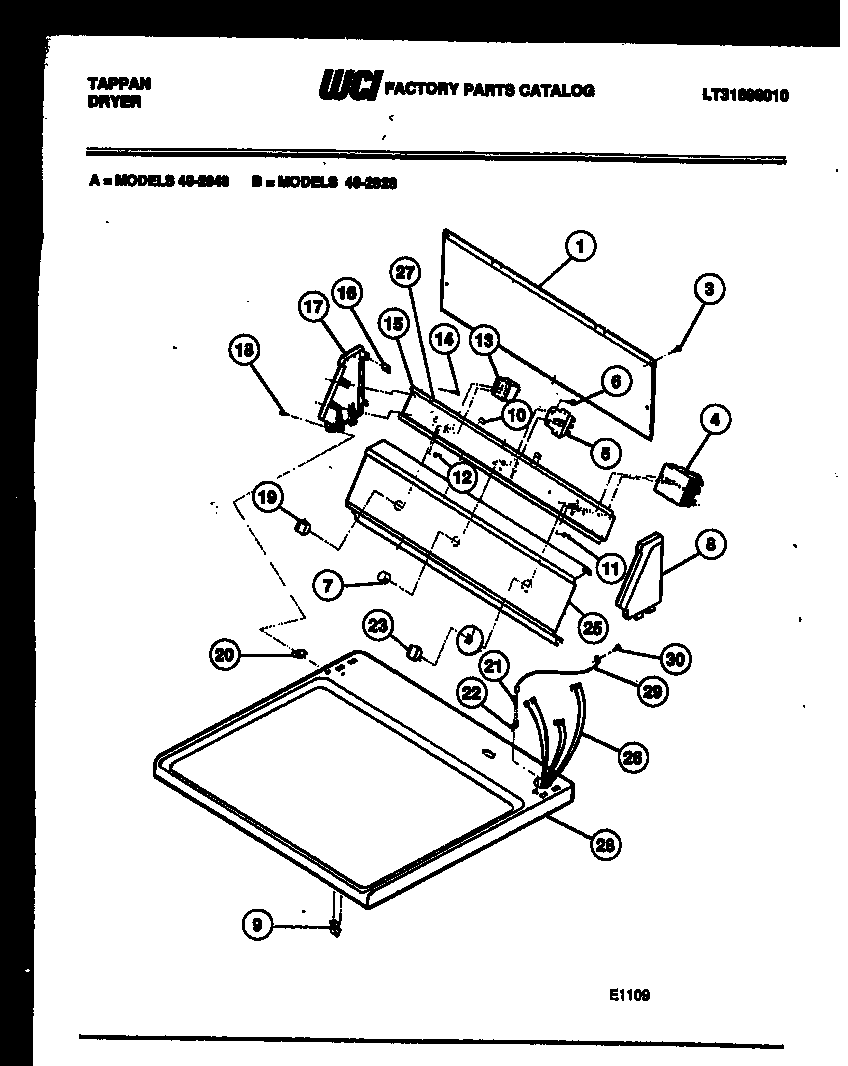

49-2848-00-01 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	SCREW
4	WCI 3201958
5	SWITCH – START
6	WCI 08001544
7	WCI 3201220
8	WCI 3281191
9	SPRING CATCH
10	PAD
11	SCREW (2)
12	WCI 3281101
13	SWITCH-SELECTOR
14	SCREW (2)
15	BRACKET-MOUNTING
16	WCI 08014350
17	WCI 3281189
18	SCREW (2)
19	KNOB, TEMP SW
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 3161198
23	WCI 3281195
25	WCI 3281196
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
26	WCI 3201229
27	CLIP-GROUND
28	PANEL-TOP WHITE
29	WIRE-GROUND
29	SCREW (2)
