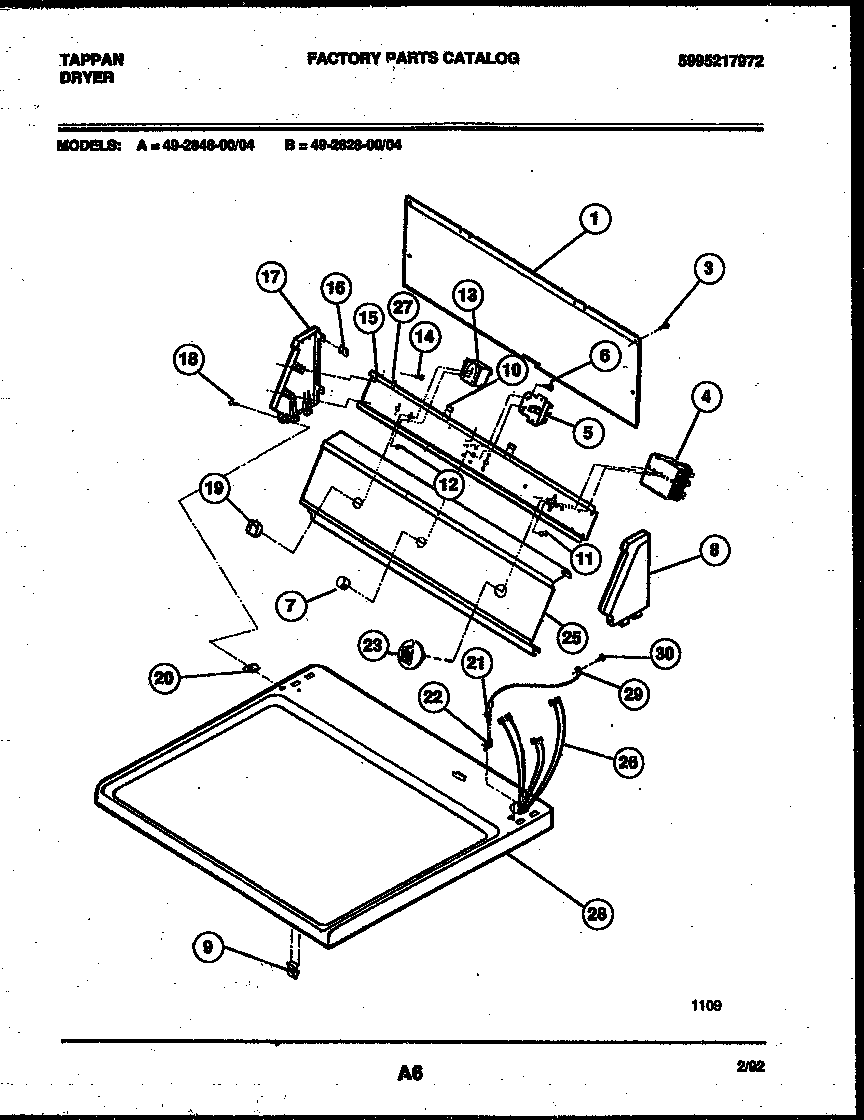

49-2848-00-04 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
1	COVER-BACK
3	SCREW
4	WCI 5303283994
4	WCI 3201658
5	SWITCH – START
6	WCI 08001544
7	WCI 3201220
8	WCI 3205978
9	3205821 Frigidaire Clip
10	PAD (2)
11	SCREW (2)
11	218359202 Frigidaire Refrigerator Screw
12	WCI 3281101
13	SWITCH-SELECTOR
14	SCREW (2)
15	WCI 3205841
16	WCI 08014350
17	WCI 3205979
18	SCREW (2)
19	KNOB, TEMP SW
20	WCI 3281192
21	131243800 Frigidaire Screw
22	WCI 3161198
23	WCI 3205843
25	WCI 3205980
25	WCI 3205981
26	WCI 5303270857
26	WCI 5303270855
26A	5303303590 Frigidaire Dryer 4.0" Cable Tie
27	WCI 3281200
28	PANEL-TOP-WHITE
29	WIRE-GROUND
29	SCREW (2)
