4ACE07LD0 01 – UNIT, LITERATURE

4ACE07LD0 01 – UNIT, LITERATURE

Written by

in

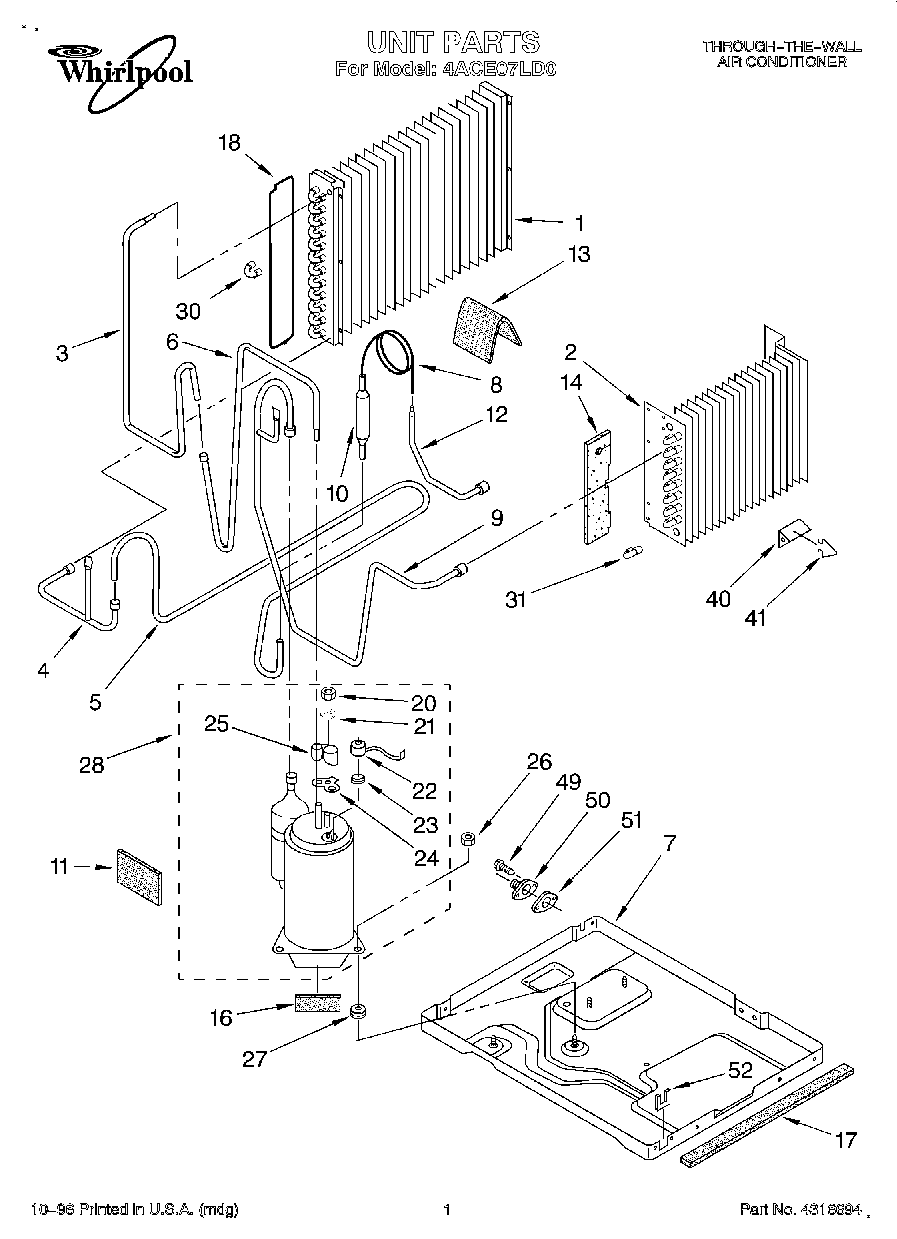

4ACE07LD0 01 – UNIT, LITERATURE

Products

PositionProduct
1Condenser
2Evaporator
3Tube, Discharge (Condenser)
4Tube, Process
5Tube, Wet Loop
6Tube, Discharge (Compressor)
7Base
8Tube, Restrictor
9Tube, Suction
10Strainer
11Seal, Compressor
12Tube, Evaporator Inlet
13WPL 1162650
14Seal, Tube
16Seal, Anti-Rub
17Seal
18Cover, Return Bend (Condenser)
20WP950027 Whirlpool Mounting Nut
21Gasket, Nut
22Protector, Overload
23Spring, Overload
24WP950035 Whirlpool Cover Gasket
25WP950036 Whirlpool Cover Assembly
26Nut, 8MM
27Grommet, Compressor Mounting
28Compressor
30Bend, Return Condenser (10)
31WP855199 Whirlpool Bend Return
40Anticipator
41Clip, Anticipator
49Screw No.8 x 1
50Drain Plug
51Gasket, Drain Plug
52Wiring Diagram
52Deluxe Remote Owners Manual
52Protector, Cord
52Owners Manual/ Installation Instructions
