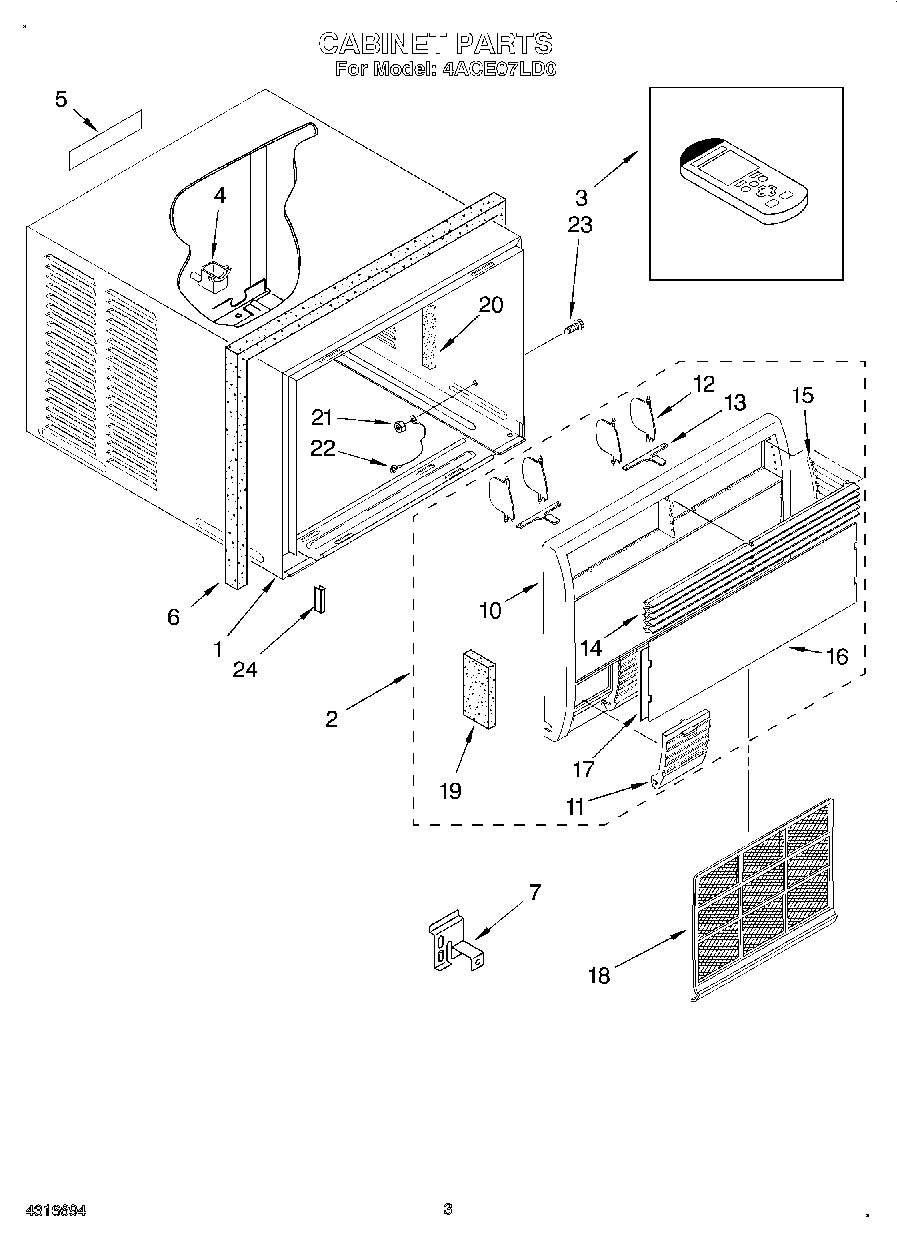

| 1 | Cabinet (Order Cabinet Seals Also) |
| 2 | Front (Complete) |
| 3 | Remote, Deluxe |
| 4 | Cup, Drip |
| 5 | Label, Cabinet |
| 6 | Seal, Insulation |
| 7 | Bracket, Front Mounting |
| 10 | Frame, Front |
| 11 | Door, Control |
| 12 | Louver, Vertical (4) |
| 13 | Link, Vertical Louver |
| 14 | Louver, Horizontal (5) |
| 15 | Link, Horizontal |
| 16 | Cover, Clear |
| 17 | Paper, Decorative |
| 18 | Filter |
| 19 | Seal, Front (3) |
| 20 | Seal, Cabinet (Left Side) |
| 20 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 21 | WP486255 Whirlpool Air Conditioner Nut |
| 22 | Wire, Ground |
| 23 | Screw |
| 24 | Guard, Edge |
