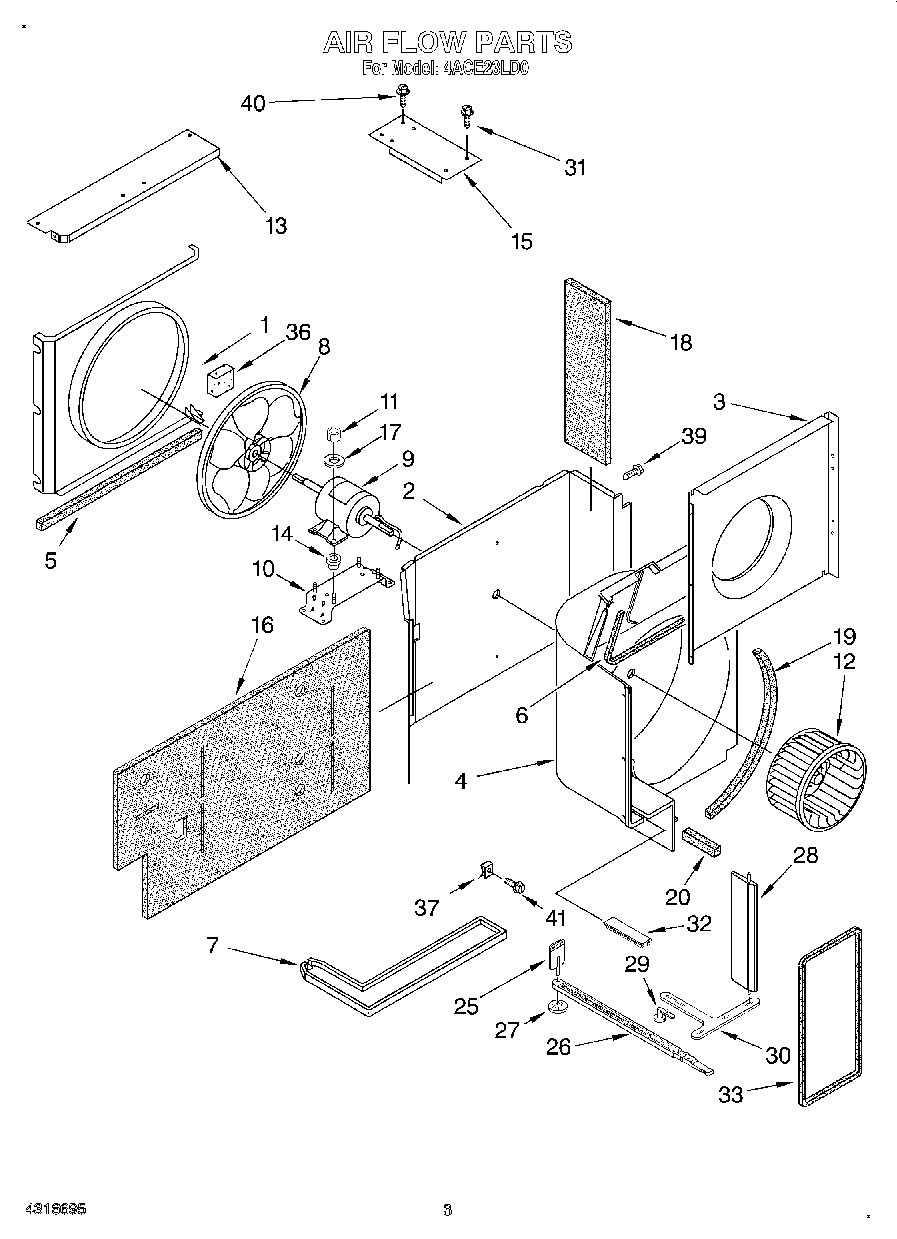

4ACE23LD0 02 – AIRFLOW

Products

PositionProduct
1Shroud, Condenser
2Wall, Dividing
3Shroud, Evaporator
4Housing, Air
5Seal
6WP854334 Whirlpool Air Conditioner Sealing Strip
7Pan, Drain
8Blade, Fan
9Motor, Fan
10Bracket, Motor Mount
11Nut, Hex 5MM
12Wheel, Blower
13Cover, Condenser Top
14Grommet, Fan Motor
15Support, Unit
16Insulation, Dividing Wall
17Washer, Bonded
18Insulation (Side)
20Seal
25Door, Exhaust
26Linkage, Exhaust Door
27Retainer, Linkage
28Louver, Verticle (3)
29Crank, Verticle Louver
30Link, Verticle Louver
31WP1163283 Whirlpool Air Conditioner Screw
31Screw, 8-18 x 3/8
32Cover, Slot
36Seal, Condenser Shroud (Bottom)
37Clip, Cabinet Front (2)
39Screw
40Screw No.8 x 1
41489392 Whirlpool Refrigerator Screw
