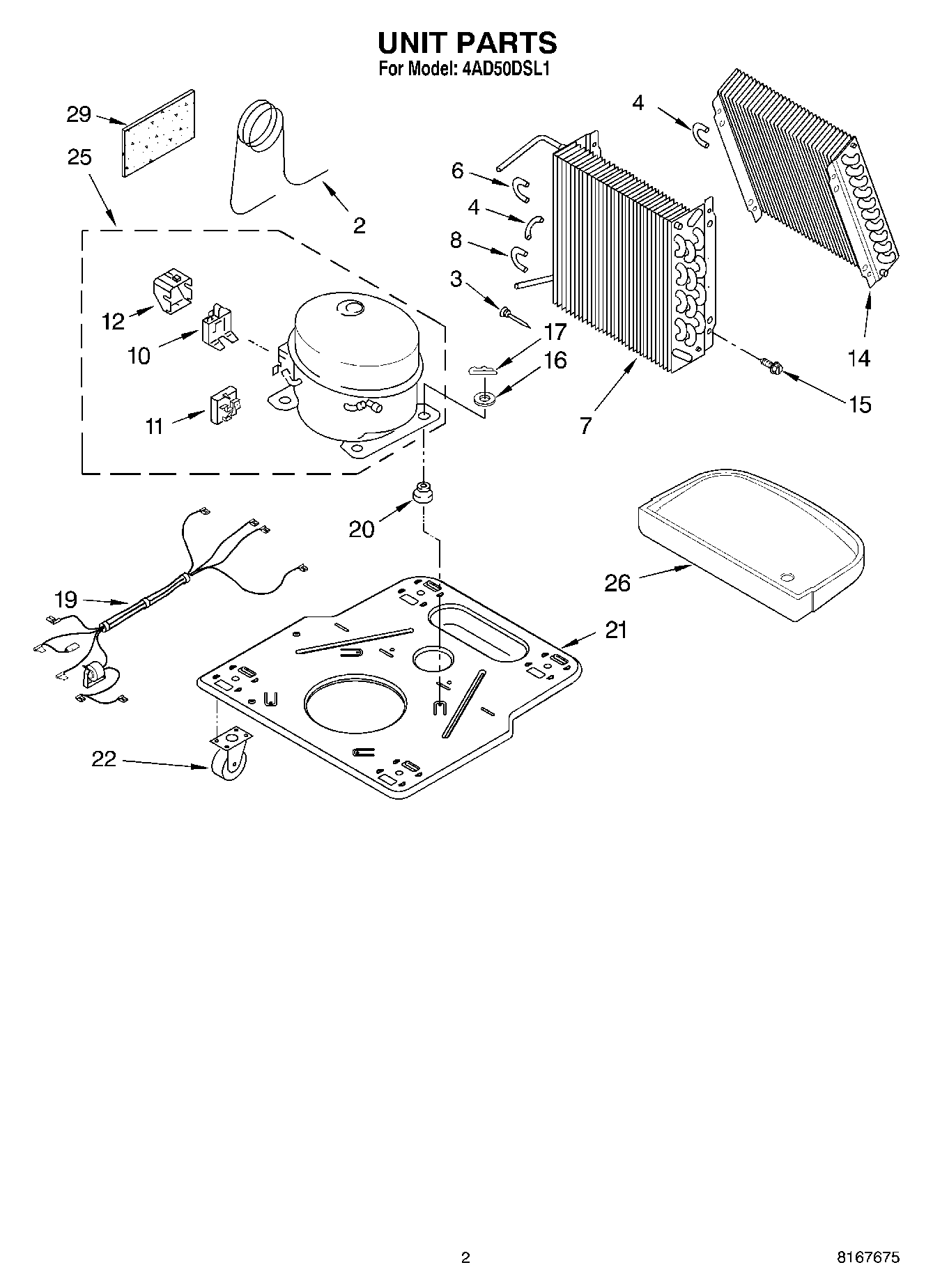

4AD50DSL1 02 – UNIT PARTS

4AD50DSL1 02 – UNIT PARTS

Written by

in

4AD50DSL1 02 – UNIT PARTS

Products

PositionProduct
2WPL 1168734
3WP1162526 Whirlpool Air Conditioner Strainer
4Bend, Return Condenser (10)
6Bend, Return Condenser (4)
7WPL 1184770
8Bend, Return Evaporator (4) Condenser (4)
10WP61006295 Whirlpool Refrigerator Overload
11Relay, Start
12WPL 1182781
14WPL 1185204
15WP489069 Whirlpool Compactor Screw
16Washer
17Clip, Compressor
19Harness, Wire
20WPL 1168722
21WPL 1168654
22WPL 1164241
25Compressor, (Complete Assembly)
26WPL 1168761
29Seal, Restrictor Tube
29REFRIGERANT CHARGE 13.0 oz.
