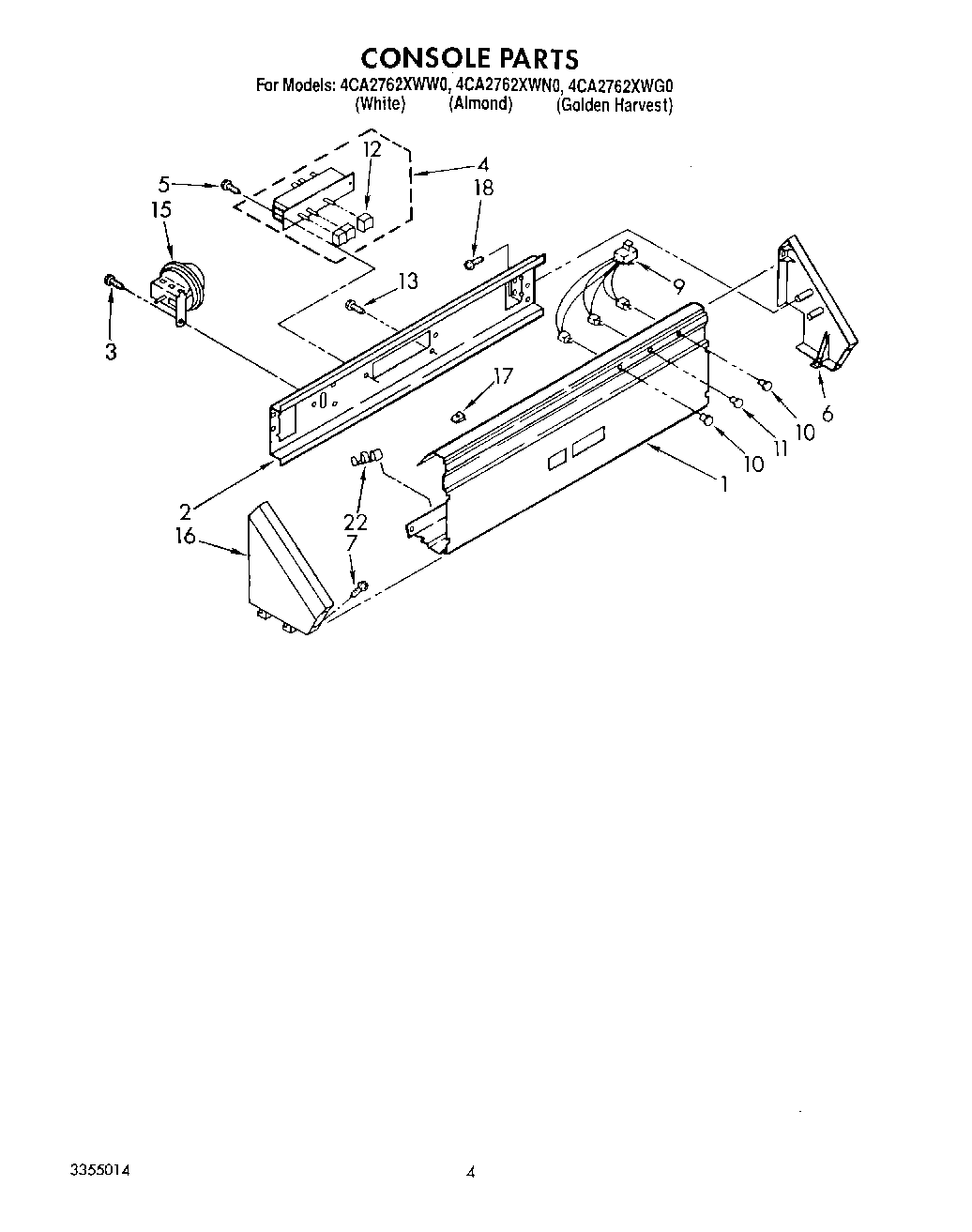

4CA2762XWW0 02 – CONSOLE

Products

Position	Product
1	Panel, Console
2	Bracket, Control
3	WP90767 Whirlpool Screw
4	Switch, Cycle Selector (Includes Illus. No. 12)
5	WP965173 Whirlpool Dishwasher Screw
6	End Cap (R.H.)
7	WPL 64211
9	Lights, Indicator
10	WP3348109 Whirlpool Light Lens
11	WP3348110 Whirlpool Light Lens
12	Button (4)
13	WP3390631 Whirlpool Screw
15	Switch, Water Level
16	Cap, End (L.H.)
17	WP689559 Whirlpool Nut
18	WPL 355326
22	W10113937 Whirlpool Clamp
