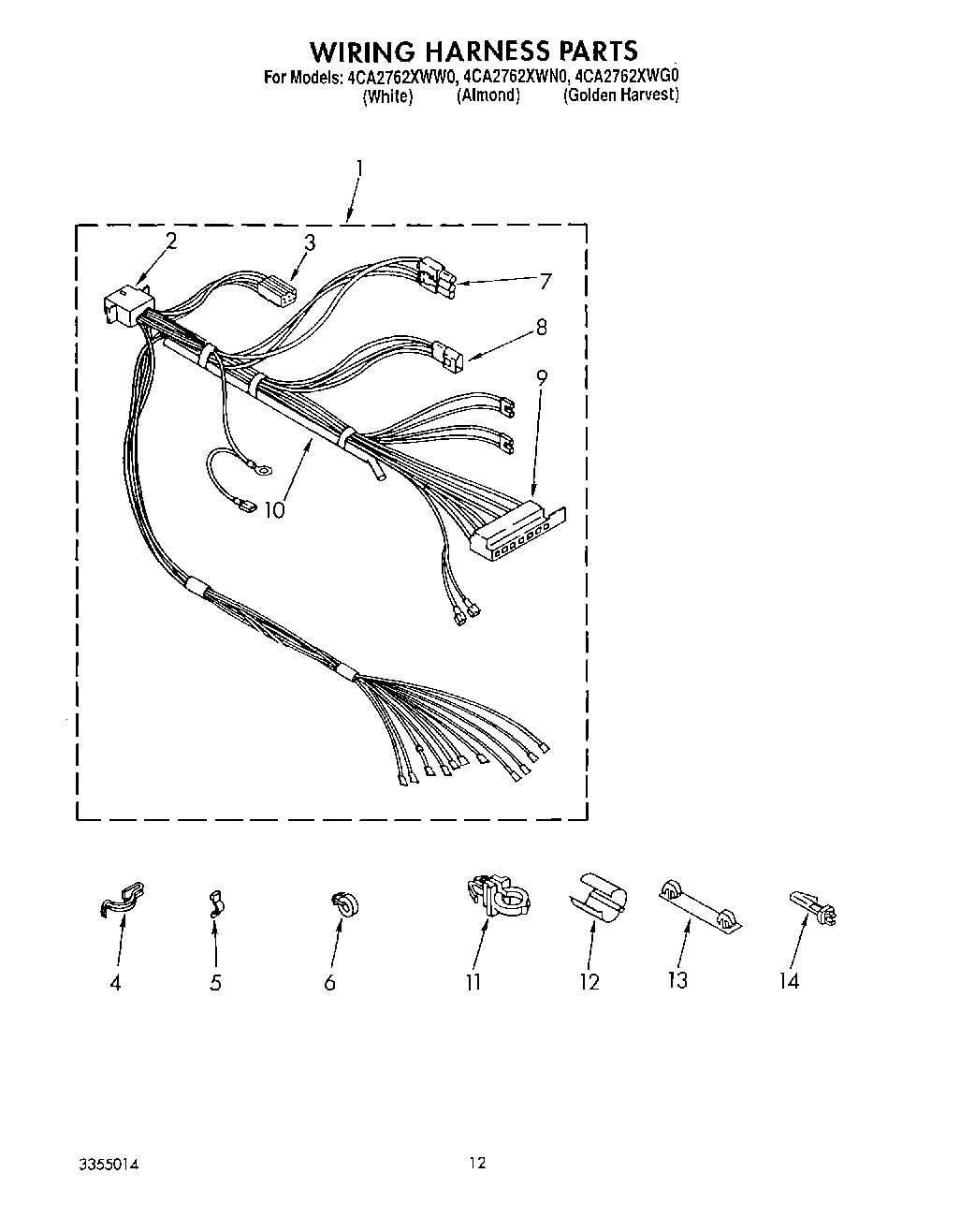

4CA2762XWW0 09 – WIRING HARNESS

Products

Position	Product
1	Harness, Base & Pressure Switch Hose
2	Plug, Terminal (15 Way)
3	Plug, Terminal (6 Way)
5	8528351 Whirlpool Clip
6	8559320 Whirlpool Clip
7	WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
8	353424 Whirlpool Connector
9	WP62505 Whirlpool Connector
10	WP353244 Whirlpool Hose
11	Clip, Harness
12	Protector, Harness
13	WP389379 Whirlpool Retainer
14	Clip, Harness
