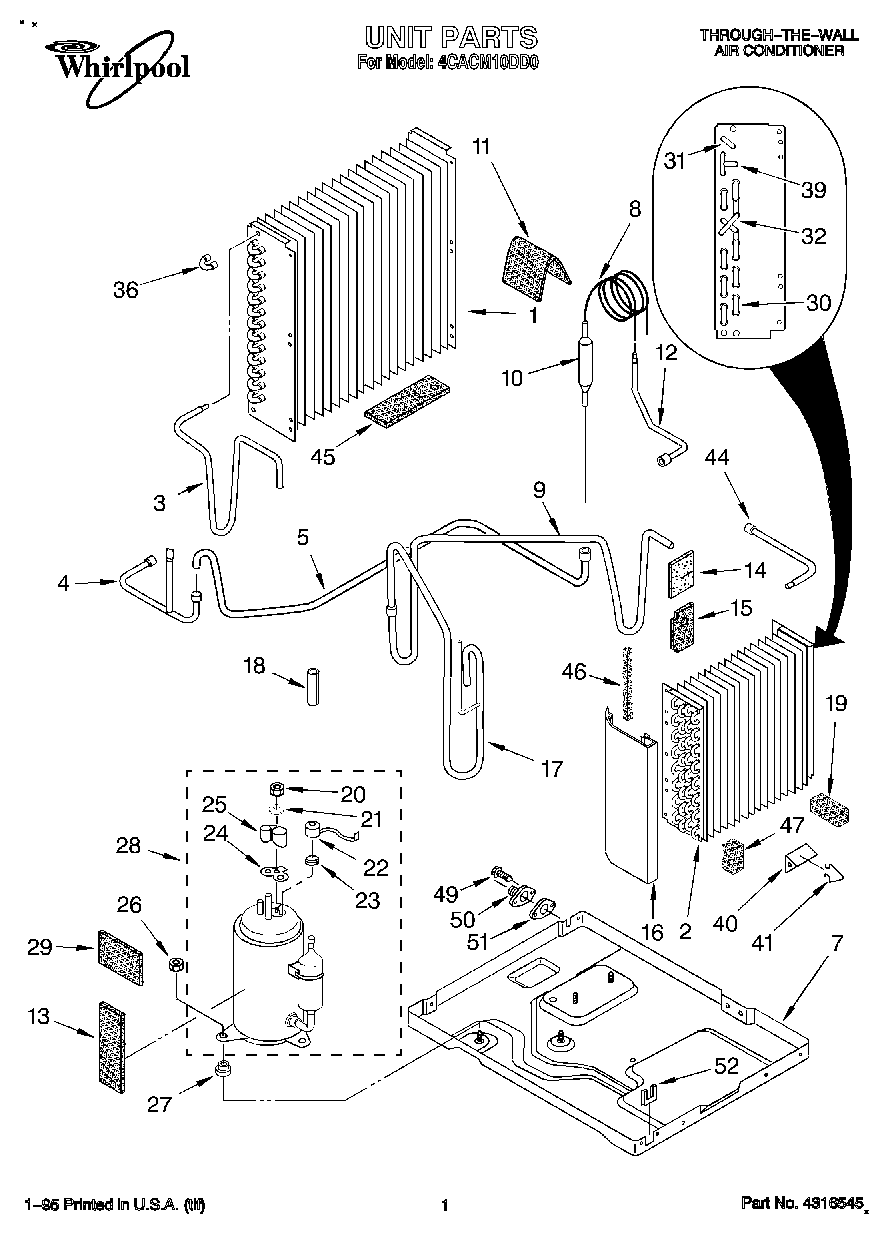

4CACM10DD0 01 – UNIT, LITERATUREadmin2025-04-26T13:05:20+00:004CACM10DD0 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| 1 | Condenser |
| 2 | Evaporator |
| 3 | Tube, Discharge |
| 4 | Tube, Process |
| 5 | Tube, Wet Loop |
| 7 | Base |
| 8 | Tube, Restrictor (2 Required) |
| 9 | Tube, Suction/Evaporator |
| 10 | Strainer |
| 11 | WPL 1162650 |
| 12 | Tube, Inlet (Row 2) |
| 12 | Tube, Inlet (Row 1) |
| 13 | Seal, Anti-Rub |
| 14 | Seal, Suction Tube |
| 15 | Seal, Inlet Tube |
| 16 | Cover, Hair Pin |
| 17 | Tube, Suction/Compressor |
| 18 | Dampener |
| 19 | Seal, Strip (Top Rear) |
| 20 | WP950027 Whirlpool Mounting Nut |
| 21 | Gasket, Nut |
| 22 | Overload |
| 23 | Spring, Overload |
| 24 | WP950035 Whirlpool Cover Gasket |
| 25 | WP950036 Whirlpool Cover Assembly |
| 26 | Nut, 8MM |
| 27 | WP950021 Whirlpool Grommet |
| 28 | Compressor |
| 29 | Seal, Compressor |
| 30 | Bend, Return Evaporator (11) |
| 31 | WP855199 Whirlpool Bend Return |
| 32 | Bend, Return |
| 36 | Bend, Return Condenser (10) |
| 39 | Bend, Return 3-Way |
| 40 | Anticipator |
| 41 | Clip, Anticipator |
| 44 | Tube, Outlet |
| 45 | Deflector, Water (Foam) |
| 46 | Seal, Hairpin (Cover) |
| 47 | Seal, Hairpin (Lower) |
| 49 | Screw No.8 |
| 50 | Drain Plug |
| 51 | Gasket, Drain Plug |
| 52 | Owners Manual/Installation Instructions |
| 52 | Deluxe Remote Owners Manual |
| 52 | Wiring Diagram |
| 52 | Protector, Cord |
