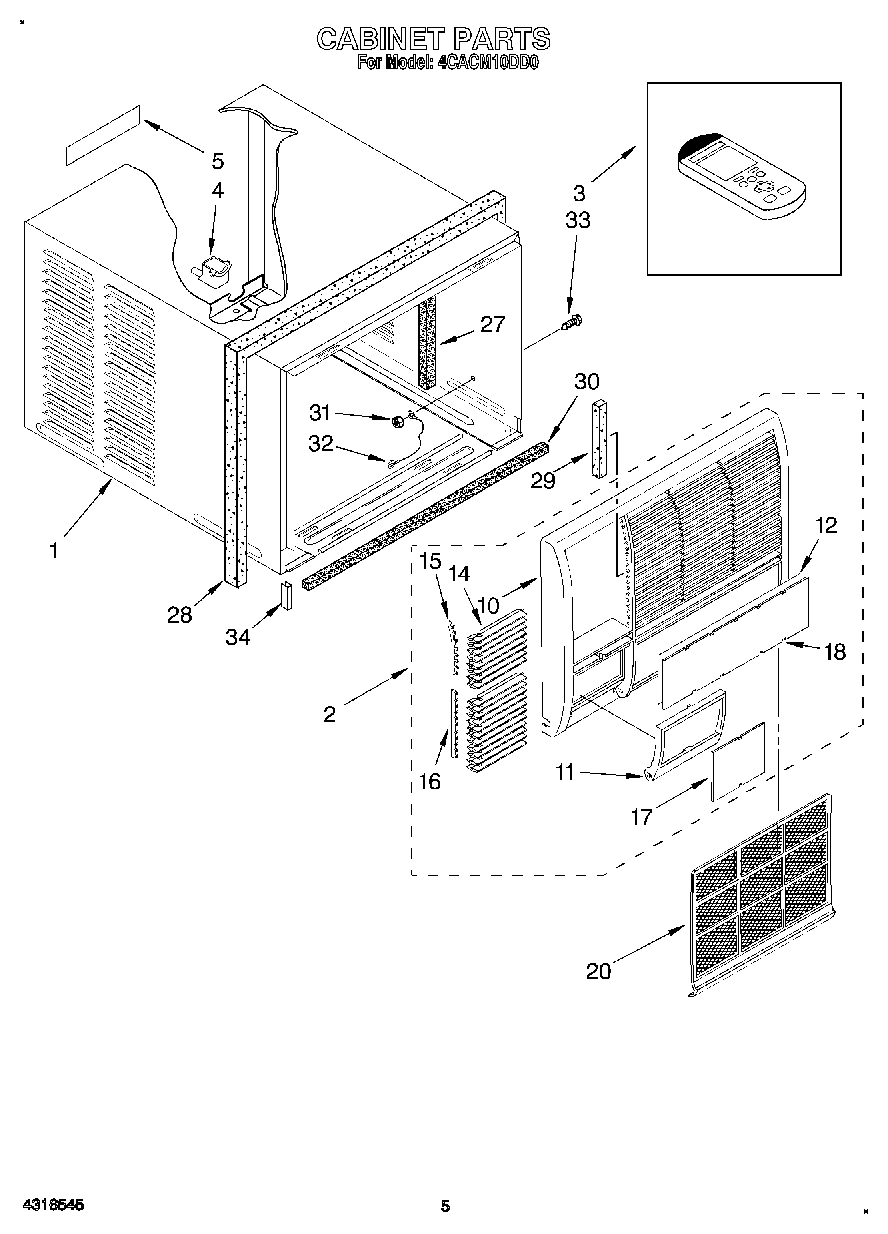

| 1 | Cabinet |
| 2 | Front (Complete) |
| 3 | Remote, Deluxe |
| 4 | Cup, Drip |
| 5 | Label, Cabinet |
| 10 | Frame, Front |
| 11 | Door, Control |
| 12 | Paper, Decorative (Control Door) |
| 12 | Paper, Decorative (Front) |
| 14 | Louver, Horizontal (15 Required) |
| 15 | Link, Horizontal Louver (Top) |
| 16 | Link, Horizontal Louver (Bottom) |
| 17 | Cover, Clear (Control Door) |
| 18 | Cover, Clear |
| 20 | Filter |
| 27 | Insulation, Cab. |
| 28 | Seal, Insulation |
| 29 | Seal, Front (Right Side) |
| 29 | Seal, Front (Bottom) |
| 29 | Seal, Front (Left Side) |
| 30 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 31 | WP486255 Whirlpool Air Conditioner Nut |
| 32 | Wire, Ground |
| 33 | WP488234 Whirlpool Air Conditioner Screw |
| 34 | Guard, Edge |
