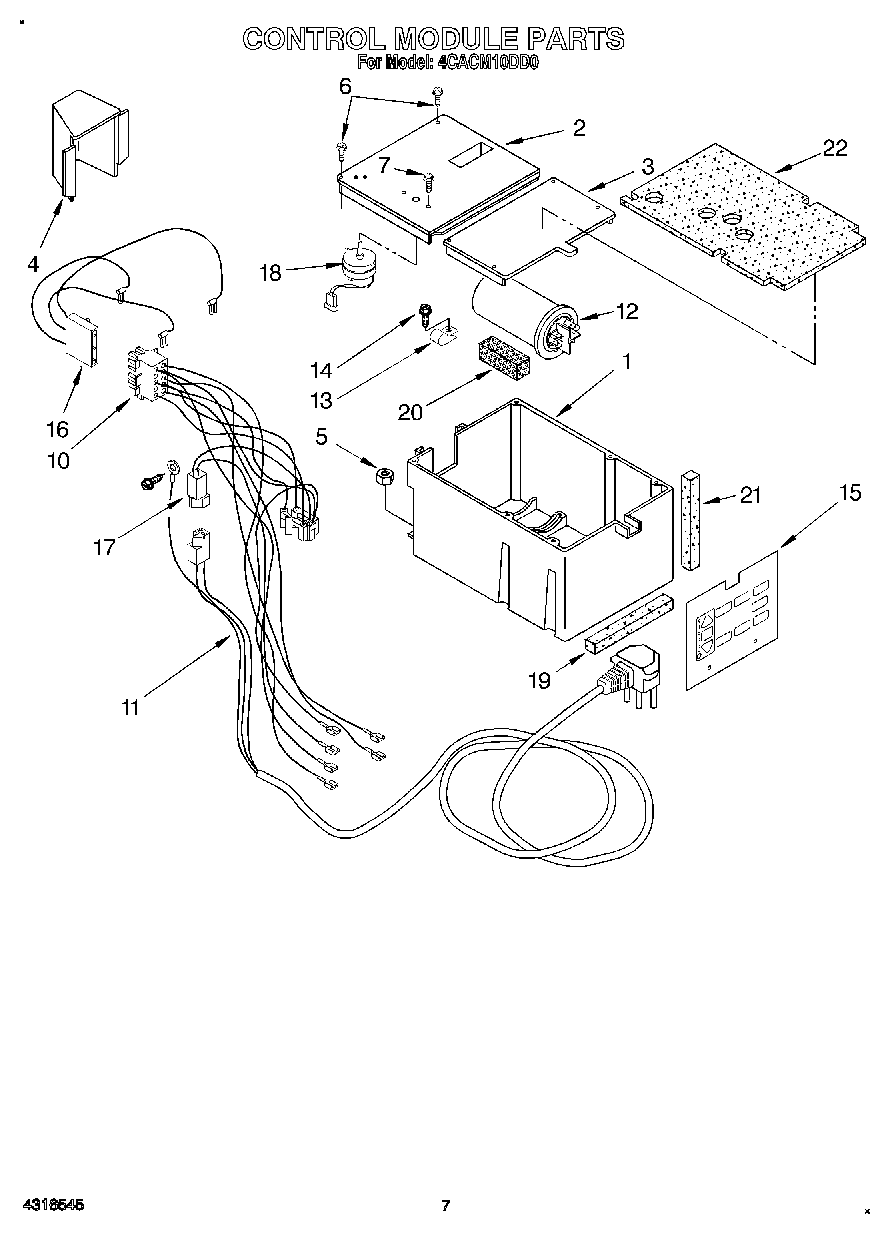

4CACM10DD0 04 – CONTROL MODULE

Written by

Products

Position	Product
1	Housing, Controls (Not Serviceable)
2	Lid, Capacitor
3	Lid, Controls
4	Shield, Rain
5	Nut, Hex 5MM
6	Screw (Tamper- Resistant)
7	489392 Whirlpool Refrigerator Screw
10	Harness, Wiring 10 Pin (Not Serviceable)
11	Cable, Appliance
12	Capacitor, Running
13	Relief, Strain
14	Screw No.8
15	Overlay (Chinese)
16	Harness, Wiring (Compressor)
17	Harness, Appliance Cable (Not Serviceable)
18	Motor, Air Swing (Not included in Complete Assembly)
19	Spacer
20	Spacer, Foam
21	WP854334 Whirlpool Air Conditioner Sealing Strip
22	Seal, Control Box
22	Control Box (Complete)
