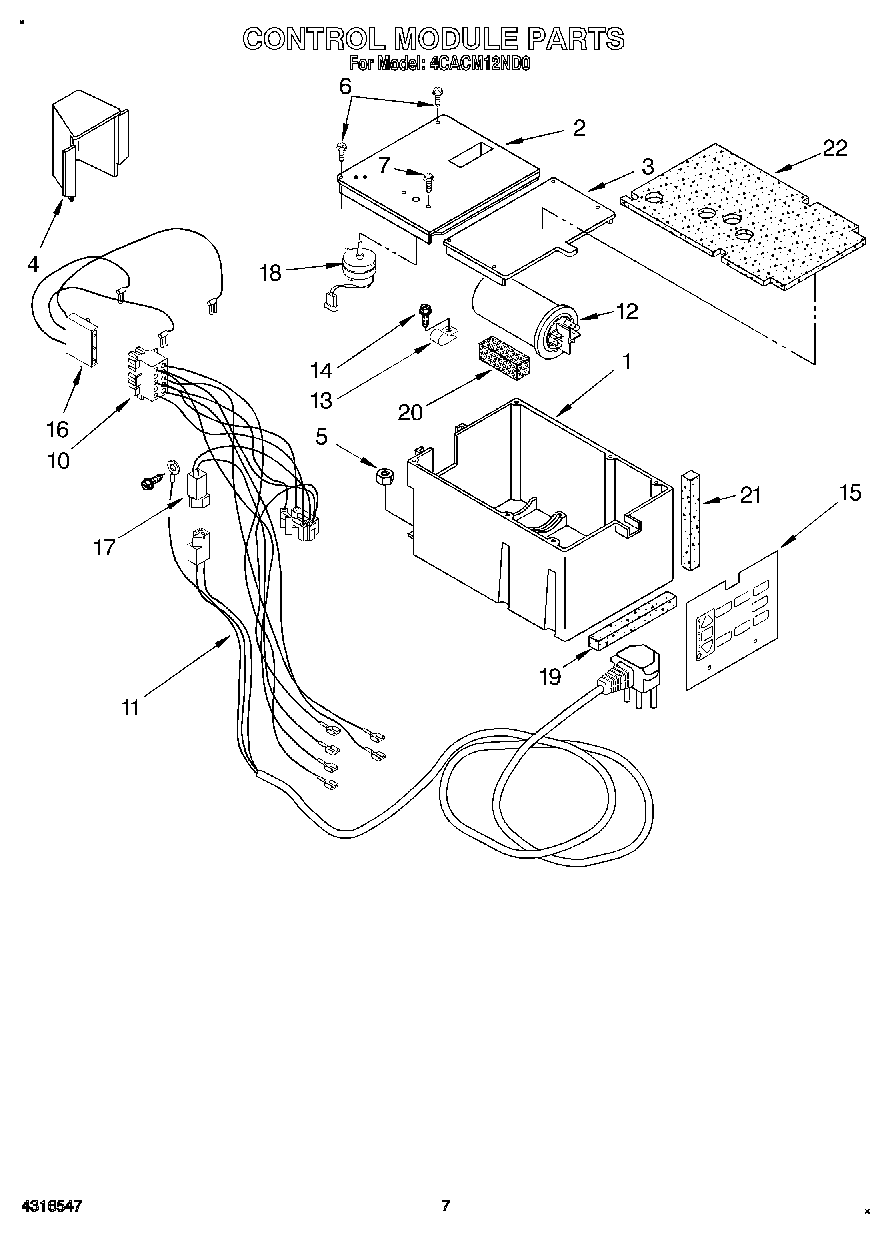

4CACM12ND0 04 – CONTROL MODULE

Products

PositionProduct
1Housing, Controls (Not Serviceable)
2Lid, Capacitor
3Lid, Controls
4Shield, Rain
5Nut, Hex 5MM
6Screw (Tamper- Resistant)
7489392 Whirlpool Refrigerator Screw
10Harness, Wiring 10 Pin (Not Serviceable)
11Cable, Appliance
12Capacitor, Running
13Relief, Strain
14Screw No.8
15Overlay (Chinese)
16Harness, Wiring (Compressor)
17Harness, Appliance Cable (Not Serviceable)
18Motor, Air Swing (Not included in Complete Assembly)
19Spacer
20Spacer, Foam
21WP854334 Whirlpool Air Conditioner Sealing Strip
22Seal, Control Box
22Control Box (Complete)
