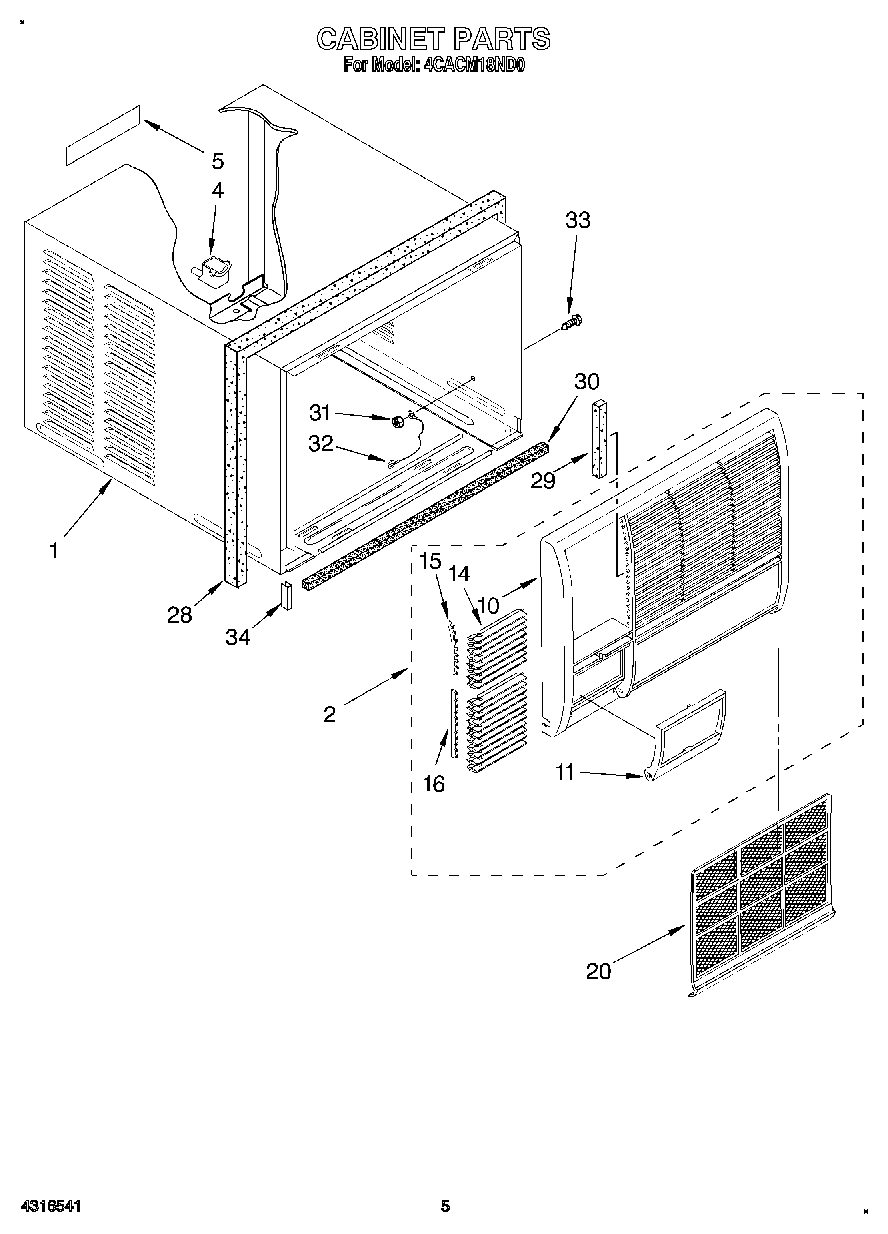

4CACM18ND0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Front (Complete)
4	Cup, Drip
5	Label, Cabinet
10	Frame, Front
11	Door, Control
14	Louver, Horizontal (15 Required)
15	Link, Horizontal Louver (Top)
16	Link, Horizontal Louver (Bottom)
20	Filter
28	Seal, Insulation
29	Seal, Front (Right Side)
29	Seal, Front (Left Side)
30	Seal, Cabinet (Side) (2)
30	WP854334 Whirlpool Air Conditioner Sealing Strip
31	WP486255 Whirlpool Air Conditioner Nut
32	Wire, Ground
33	WP488234 Whirlpool Air Conditioner Screw
34	Guard, Edge
