| Instruction Booklet |
| WPL LIT628371 |

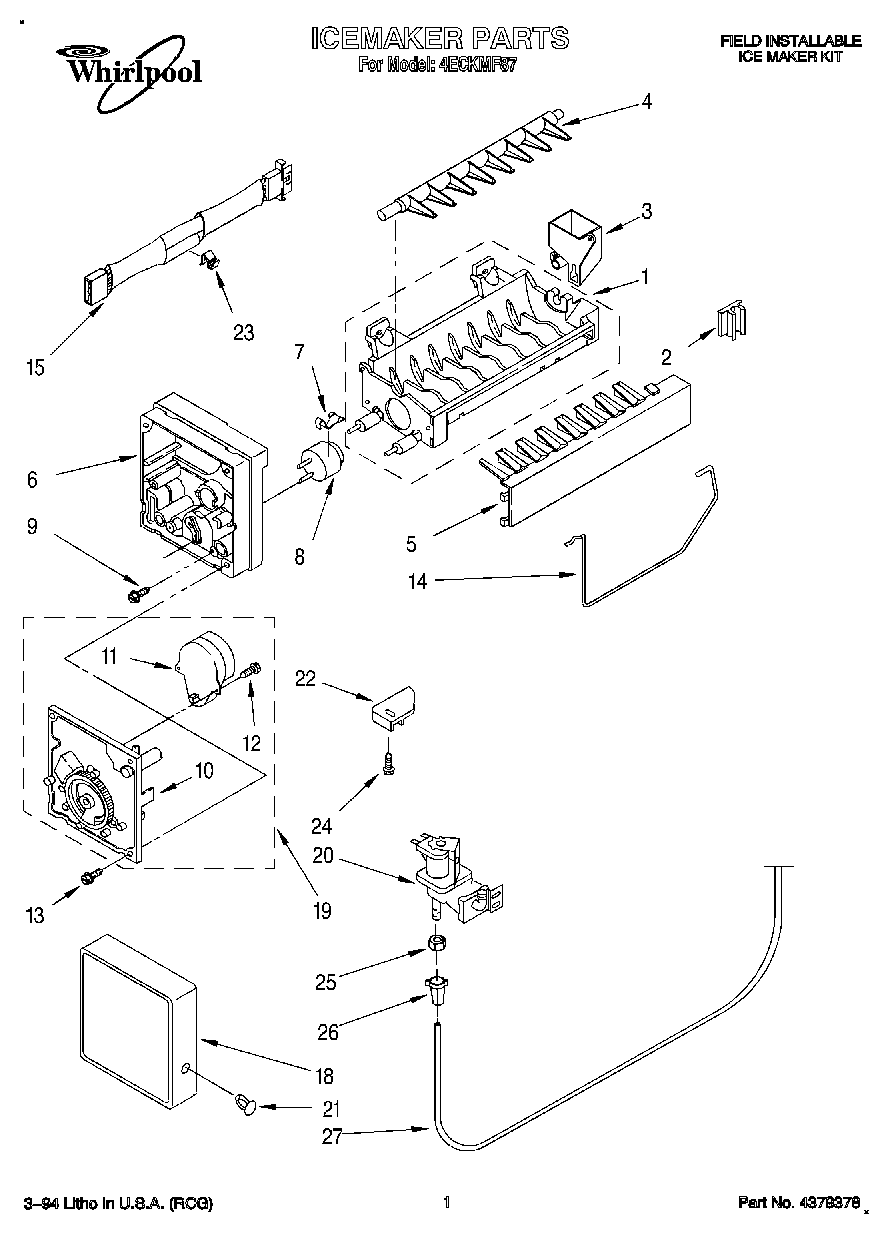

| 1 | WPW10122523 Whirlpool Refrigerator Ice Mold |
| 3 | WP628356 Whirlpool Refrigerator Fill Cup |
| 4 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 5 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 6 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 7 | WP2315522 Whirlpool Refrigerator Clip |
| 8 | Cement Alumilastic) |
| 8 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 9 | 8533917 Whirlpool Refrigerator Screw |
| 10 | Module, Assembly |
| 11 | W10190933 Whirlpool Refrigerator Motor Assembly |
| 12 | 489136 Whirlpool Refrigerator Screw |
| 13 | WP681249 Whirlpool Screw Assembly |
| 14 | WP627792 Whirlpool Refrigerator Shut Off Arm |
| 15 | WP2187464 Whirlpool Refrigerator Wire Harness |
| 18 | Cover |
| 20 | Valve, Solenoid |
| 21 | WP489115 Whirlpool Refrigerator Rivet |
| 22 | W11500948 Whirlpool Refrigerator Bracket |
| 23 | WP628379 Whirlpool Refrigerator Clip |
| 27 | Tube, Inlet |
| 27 | Washer |
| 27 | Nut, Valve |
| 27 | WP1106508 Whirlpool Refrigerator Gasket |
| 27 | Tube, Water Inlet |
| 27 | WP489069 Whirlpool Compactor Screw |
| 27 | WP627712 Whirlpool Refrigerator Mounting Clip |
| 27 | Accessory Bag, Inside Parts |
| 27 | W11501419 Whirlpool Refrigerator Clip |
| 27 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 27 | Clamp Tube |
| 27 | 549193 Whirlpool Refrigerator Power Clamp |
| 27 | 4387491 Whirlpool Refrigerator Insert |
| 27 | W10823511 Whirlpool Refrigerator Water Tube |
| 27 | WP627018 Whirlpool Refrigerator Nut |
| 27 | WP488366 Whirlpool Refrigerator Clamp |
| 27 | WP488163 Whirlpool Refrigerator Screw |
| 27 | WP2158826 Whirlpool Refrigerator Dampener |
| 27 | PAN-ICE |
| 27 | Trim Ice Cube Pan |
| 27 | WP488878 Whirlpool Refrigerator Tube Clamp |
| 27 | WP489478 Whirlpool Refrigerator Screw |
| 27 | WP2196157 Whirlpool Fill Tube |
| 27 | Accessory Bag, Outside Parts |
