4ED20ZKIFW00 08 – CONTROL, LIT/OPTIONAL

4ED20ZKIFW00 08 – CONTROL, LIT/OPTIONAL

Written by

in

4ED20ZKIFW00 08 – CONTROL, LIT/OPTIONAL

Products

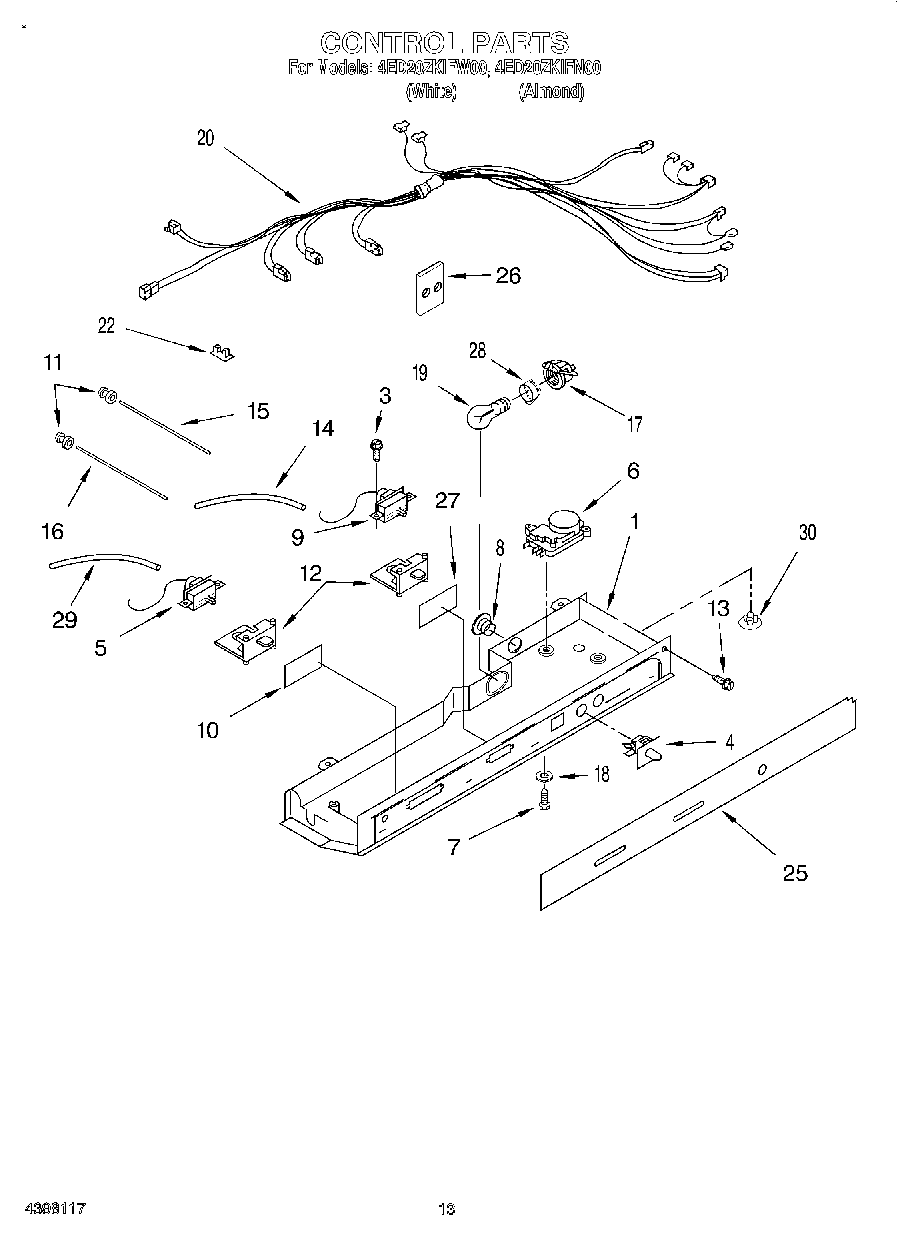

PositionProduct
WPL LIT2186926
LITERATURE PARTS (Use & Care Guide)
Torx Key
12200135 Whirlpool Refrigerator Control Box
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2182770 Whirlpool Refrigerator Thermostat
6WP2166867 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
13WP489478 Whirlpool Refrigerator Screw
15Fiber Optic
16Light Bar (FC)
174387478 Whirlpool Refrigerator Light Socket
18Washer
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
25Escutcheon, Control Box
262172931 Whirlpool Refrigerator Shield
27Window
28WP2175210 Whirlpool Refrigerator Shroud
29WP2196003 Whirlpool Refrigerator Bar Riser
30212643 Whirlpool Refrigerator Permagum Sealer
30Almond (Uncut)
30WP72107 Whirlpool Touchup
30799344 Whirlpool Refrigerator Paint
30350930 Whirlpool White Spray Paint
30Hole Plug
3072017 Whirlpool Appliance Touch-Up Paint White
30350956 Whirlpool Spray Assembly
30350942 Whirlpool Spray Paint
30511873 Whirlpool Refrigerator Paint
30Enamel, Black (1 Qt. Uncut)
30WPL 799833
30WPL 876029
30TAPE, VINYL (3/4 X 108“)
30285006 Whirlpool Spray
3072032 Whirlpool Touch Up Paint Black
30WP542638 Whirlpool Refrigerator Grease
30WP505587 Whirlpool Refrigerator Sealer
30WP503695 Whirlpool Refrigerator Sealer
30876370 Whirlpool Refrigerator Insulation
30833938 Whirlpool Refrigerator Terminal
30606755 Whirlpool Refrigerator Bag
30CEMENT, ALUMILASTIC (1 1/4 OZ.)
