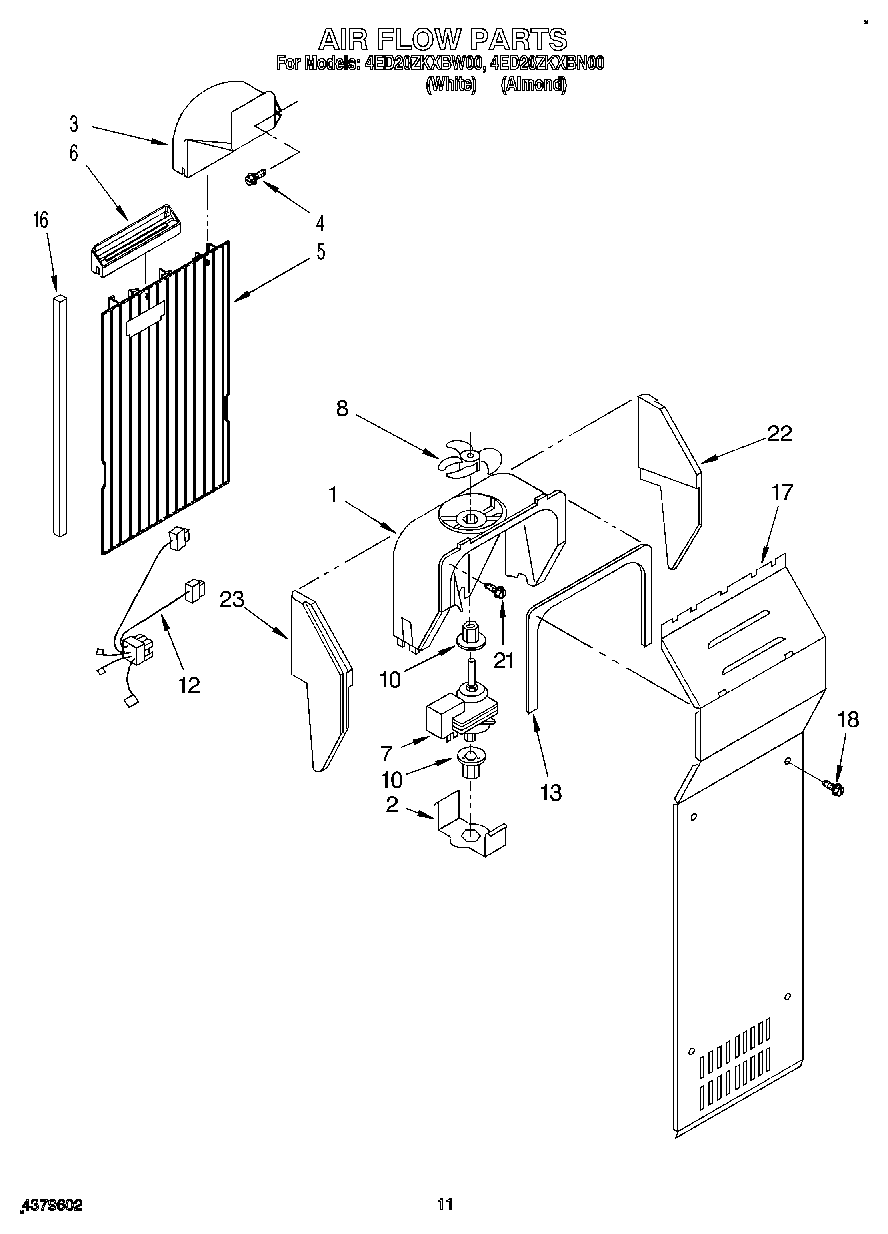

4ED20ZKXBW00 07 – AIR FLOW

4ED20ZKXBW00 07 – AIR FLOW

Written by

in

4ED20ZKXBW00 07 – AIR FLOW

Products

PositionProduct
1W11254898 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
54388357 Whirlpool Refrigerator Evaporator Cover
6Diffuser, Air Duct
7Fan Motor
8WP2169142 Whirlpool Fan Blade
10Grommet, Fan (2)
12Harness, Fan Evaporator, And Heater, Bi-Metal
13WP2155789 Whirlpool Refrigerator Gasket
16WP2304241 Whirlpool Refrigerator Gasket
18SCREW
21WP489478 Whirlpool Refrigerator Screw
224388358 Whirlpool Refrigerator Support Bracket
