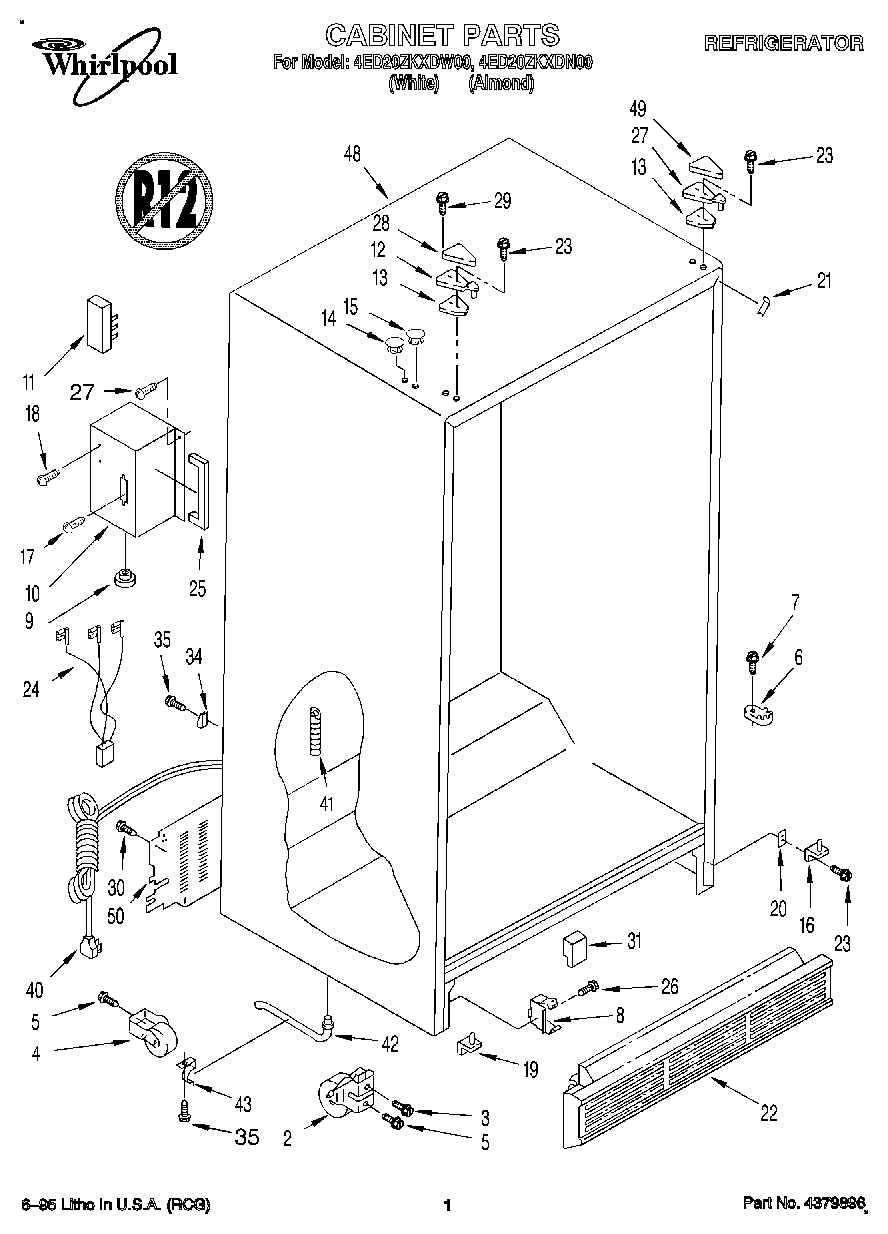

4ED20ZKXDN00 01 – CABINET

Products

Position	Product
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WPW10329686 Whirlpool Door Cam Black
7	WP489483 Whirlpool Screw
8	WP2155013 Whirlpool Refrigerator Clip
9	Bushing
10	Enclosure, Term.
11	Terminal Block
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Top
14	Hole Plug (Almond)
14	Hole, Plug (White)
15	Hole Plug (Almond)
15	Hole Plug (White)
16	Hinge Bottom (R.H) (Chrome)
17	WPW10272364 Whirlpool Refrigerator Screw
18	Screw
19	Hinge Bottom (L.H) (Chrome)
20	Shim, Bottom Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (White)
22	Grille (White)
22	Grille (Almond)
23	WP999367 Whirlpool Refrigerator Screw
24	Wiring Assembly, Terminal Block
25	Gasket
26	WP489478 Whirlpool Refrigerator Screw
27	WP489463 Whirlpool Refrigerator Screw
28	1119787 Whirlpool Refrigerator Hinge Cover
29	Screw
31	Insert, Air Baffle
34	489348 Whirlpool Refrigerator Tube Clamp
35	WP489464 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
48	Cabinet (Not A Serviceable Part)
49	WP1129262 Whirlpool Refrigerator Cover
50	Cover, Unit
