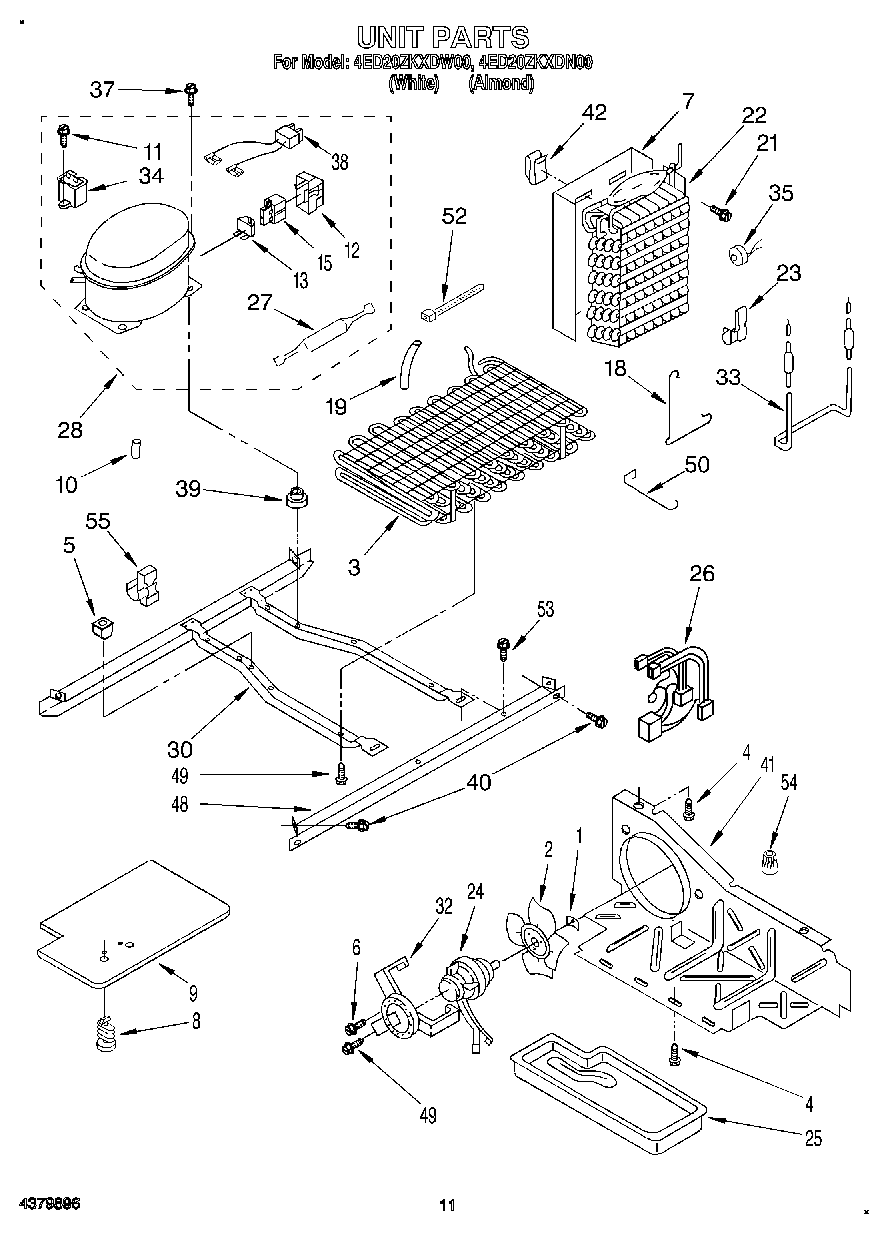

4ED20ZKXDN00 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Screw Grommet
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	489396 Whirlpool Refrigerator Clip
9	Cover-Unit Btm.
10	WP2158826 Whirlpool Refrigerator Dampener
11	W11693756 Whirlpool Screw Assembly
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2169412 Whirlpool Overload Relay
15	WP2262184 Whirlpool Refrigerator Start Relay
18	Clamp
19	SLEEVE
21	WP965173 Whirlpool Dishwasher Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	8201703 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Wiring Assy. Intermediate
27	W10843121 Whirlpool Refrigerator Tube
28	W10183407 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	Bracket, Motor
33	WP2313330 Whirlpool Refrigerator Heater
34	WP2201147 Whirlpool Refrigerator Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
52	Strap
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	VALVE, ACCESS (5/8“)
55	Clip, Wire
55	876764 Whirlpool Refrigerator Primary Valve
55	VALVE, ACCESS (1/2“)
55	978026 Whirlpool Refrigerator Primary Valve
55	978027 Whirlpool Refrigerator Primary Valve
55	978030 Whirlpool Refrigerator Valve
55	WP978025 Whirlpool Refrigerator Valve
