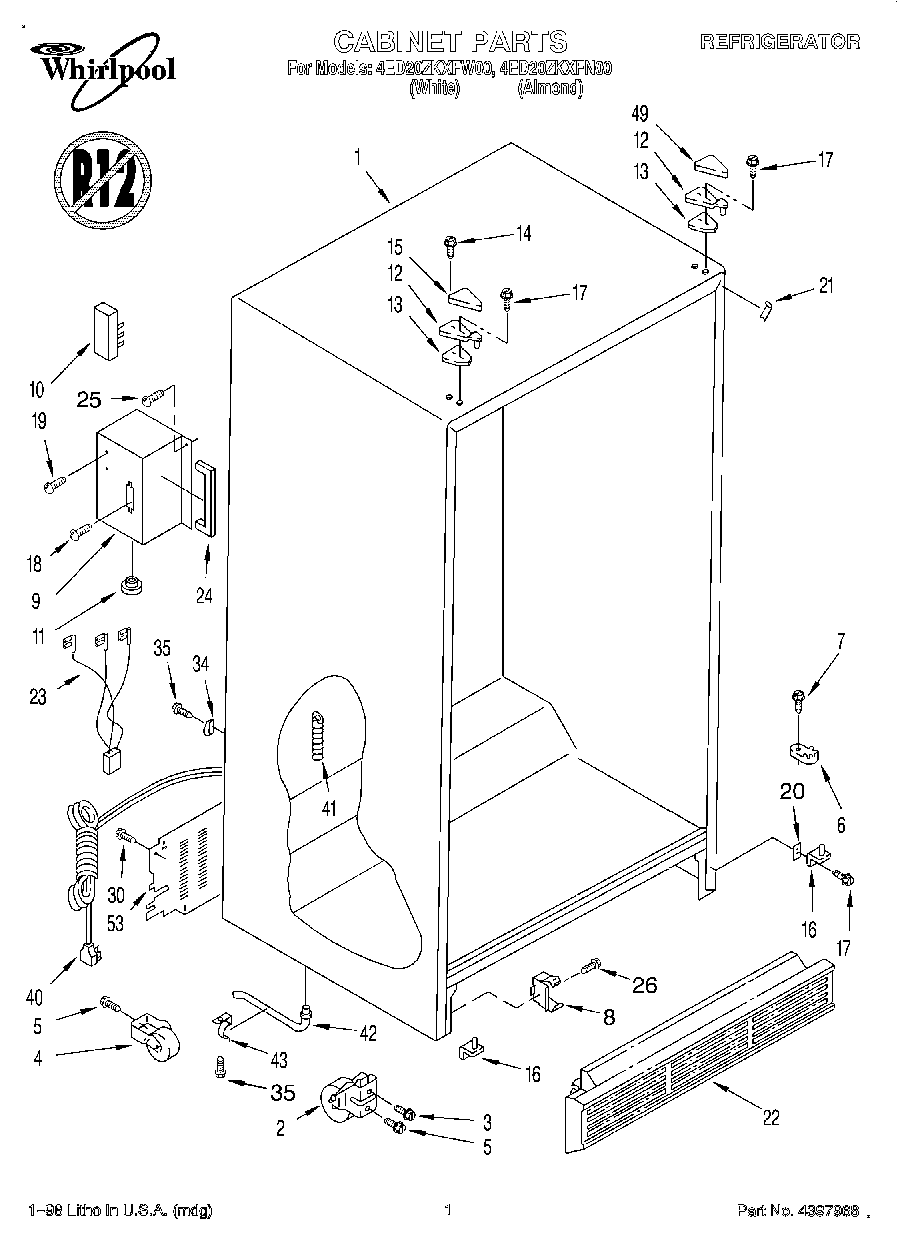

4ED20ZKXFW00 01 – CABINETadmin2025-04-26T13:06:07+00:004ED20ZKXFW00 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WPW10329686 Whirlpool Door Cam Black7WP489483 Whirlpool Screw8WP2155013 Whirlpool Refrigerator Clip9Enclosure, Term.10Terminal Block11Bushing12WP2196046 Whirlpool Refrigerator Door Hinge13Shim, Hinge Top14Screw15WP1129262 Whirlpool Refrigerator Cover168201707 Whirlpool Door Hinge17WP489497 Whirlpool Screw18WPW10272364 Whirlpool Refrigerator Screw19WP489399 Whirlpool Refrigerator Screw20WP2181911 Whirlpool Refrigerator Shim21Filler, Wrapper (White)21Filler, Wrapper (Almond)22Grille (White)22Grille (Almond)23Wiring Assembly, Terminal Block24Gasket25WP489463 Whirlpool Refrigerator Screw26WP489478 Whirlpool Refrigerator Screw34489348 Whirlpool Refrigerator Tube Clamp35WP489464 Whirlpool Refrigerator Screw40Service Cord41W11566763 Whirlpool Fitting42WP1108438 Whirlpool Refrigerator Extension43WP1108439 Whirlpool Refrigerator Clip491119787 Whirlpool Refrigerator Hinge Cover53Cover, Unit
