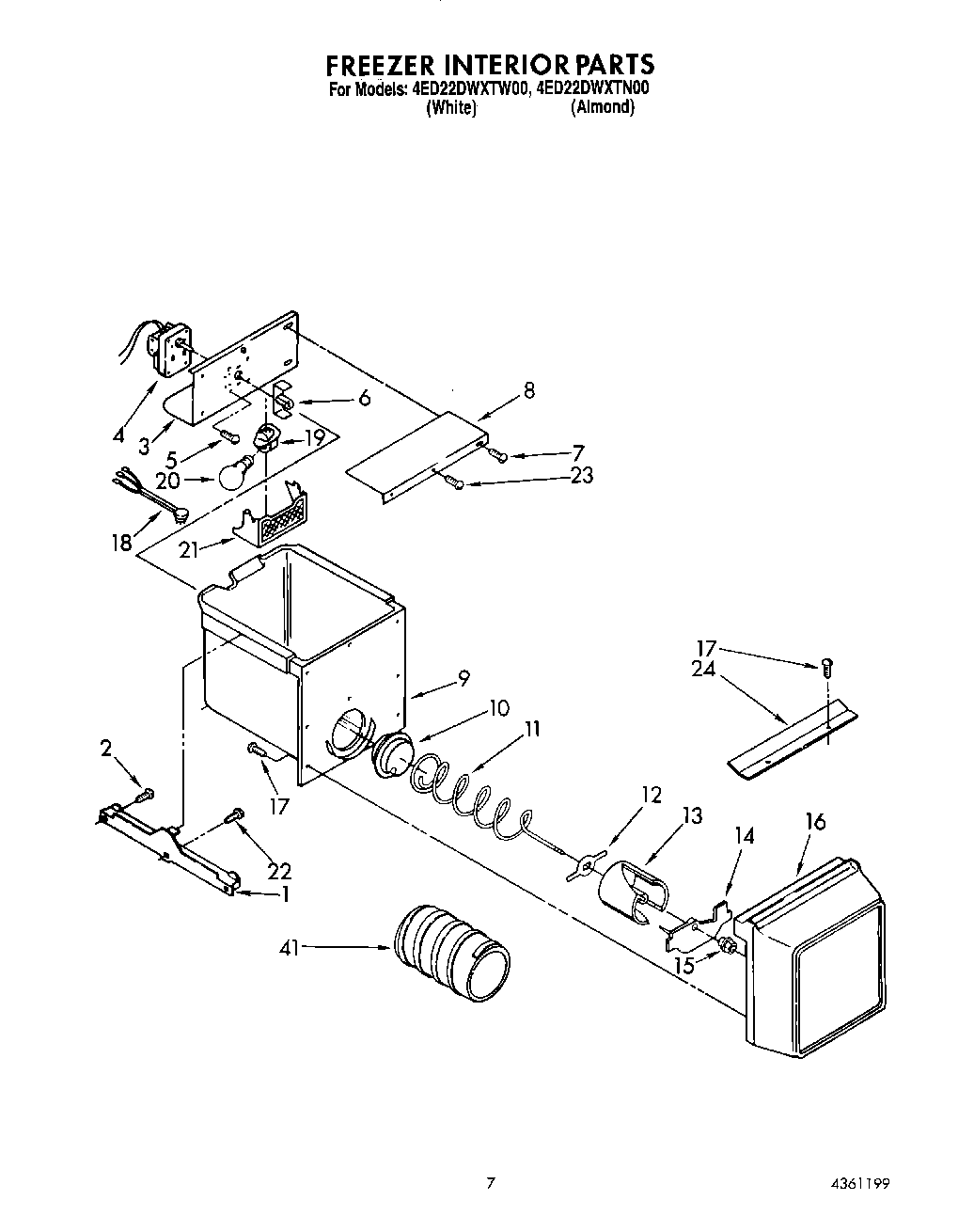

4ED22DWXTW00 06 – FREEZER INTERIOR

Products

Position	Product
1	W10845583 Whirlpool Refrigerator Track
1	W10845585 Whirlpool Refrigerator Track
2	718257 Whirlpool Dishwasher Screw
3	WPW10284487 Whirlpool Refrigerator Bracket
4	Motor
5	303776 Whirlpool Dishwasher Screw
6	COUPLING AUGER MOTOR
7	WP489478 Whirlpool Refrigerator Screw
9	WP2196089 Whirlpool Refrigerator Container
10	W10749708 Whirlpool Refrigerator Coupling
11	Conveyor
12	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
14	Baffle
15	Nut, Bearing
16	Front Cover
17	WP488787 Whirlpool Refrigerator Screw
18	Wiring Assembly, Ice Dispenser
19	4387478 Whirlpool Refrigerator Light Socket
20	RANGE ONLY 40W 120V APPL BULB
21	Lens, Dispenser Light
22	W11693756 Whirlpool Screw Assembly
23	WP489128 Whirlpool Refrigerator Screw
24	Deflector, Ice Container
41	4317870 Whirlpool Refrigerator Auger Sleeve
