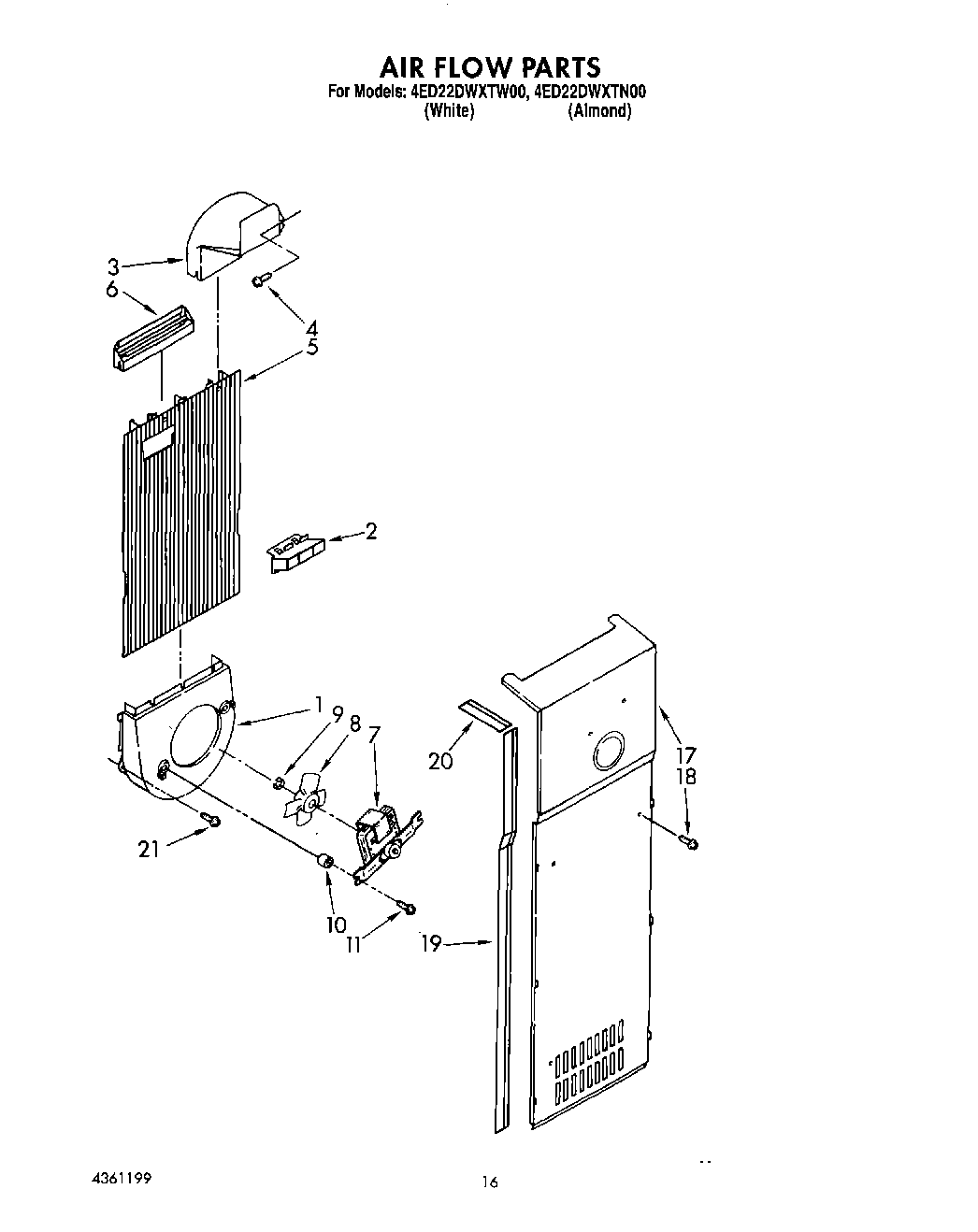

4ED22DWXTW00 12 – AIR FLOW

Products

PositionProduct
1Fan Scroll
22182146 Whirlpool Refrigerator Duct
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
6Diffuser, Air Duct
7Fan Motor
8Blade, Fan
9Ring, Compression
10Fan Grommet (2)
11Screw (2)
17Gasket, Evaporator Cover (2)
18SCREW
19Gasket, Evaporator Cover (2)
20Gasket, Evaporator Cover Top (2)
21WP489478 Whirlpool Refrigerator Screw
