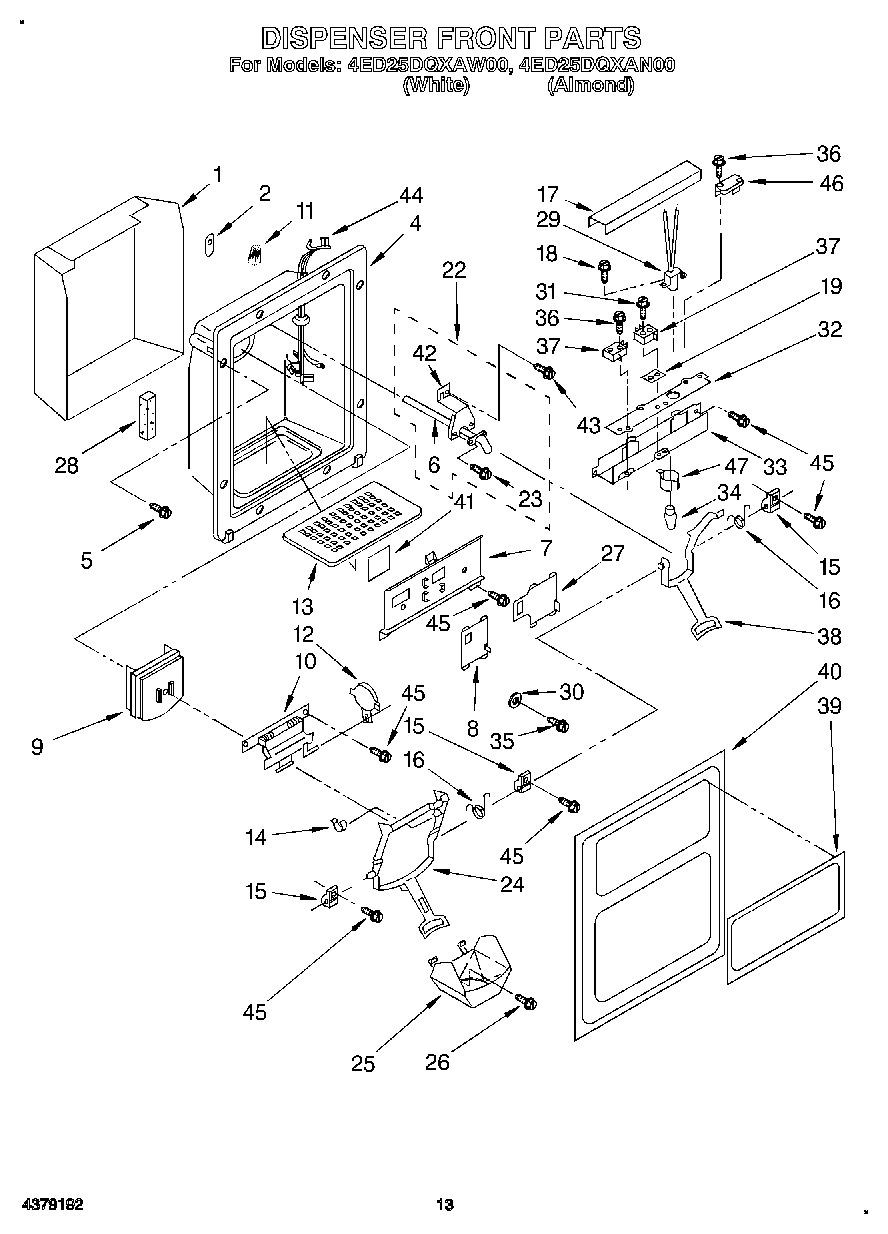

4ED25DQXAW00 08 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
7	Frame, Slides (Almond)
7	Frame, Slides
8	Slide, Cube/Crush Switch
8	Slide, Cube/Crush Switch (Almond)
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
19	Spacer, Switch (2)
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser
25	Guide, Ice (Almond)
25	Guide, Ice
26	Screw
27	Slide, Light Switch (Almond)
27	Slide, Light Switch
28	Seal
29	Lamp Holder
30	Washer
31	Screw, 4-40 x 1
32	Insulator, Control Bracket
33	Bracket, Control
34	Bulb, Light
35	Screw
36	Screw,
37	814037 Whirlpool Microwave Switch
38	WPL 2159198
38	WPL 2159197
39	Plaque, Fr
39	WPL 2162690
40	WPL 2150313
40	WPL 2162702
41	Heat Shield, Frame
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
46	WP2162361 Whirlpool Switch
47	Shroud, Bracket
