4ED25PWXWN00 12 – AIRFLOW

4ED25PWXWN00 12 – AIRFLOW

Written by

in

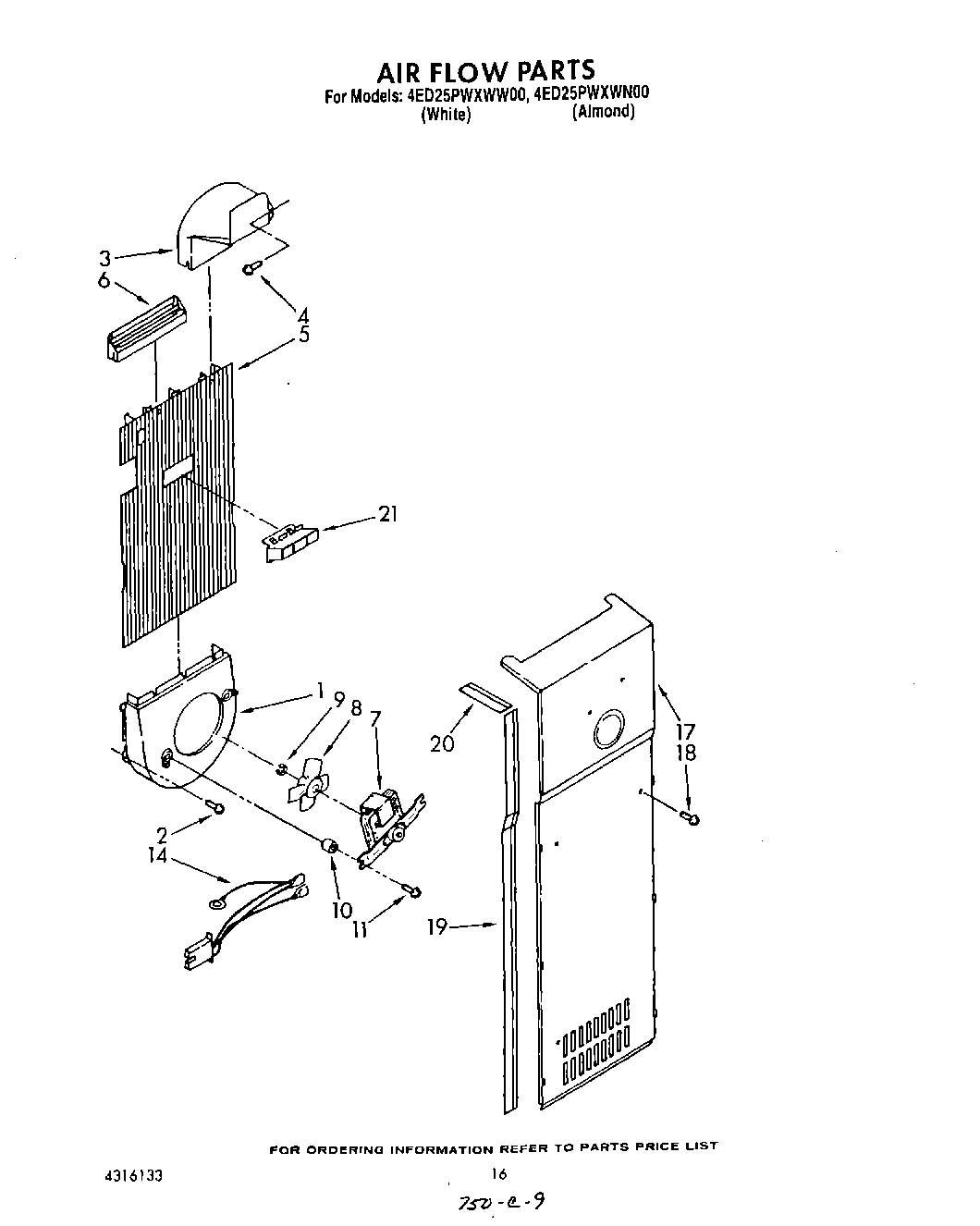

4ED25PWXWN00 12 – AIRFLOW

Products

PositionProduct
1Fan Scroll
2WP489478 Whirlpool Refrigerator Screw
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
6Diffuser Air Duct
7Fan Motor
8Blade, Fan
9Ring, Compression
10Fan Grommet (2)
11Screw (2)
14Wiring, Fan Motor
17Cover, Evaporator
19Gasket, Evaporator Cover (2)
20Gasket, Evaporator Cover Top (2)
212182146 Whirlpool Refrigerator Duct
