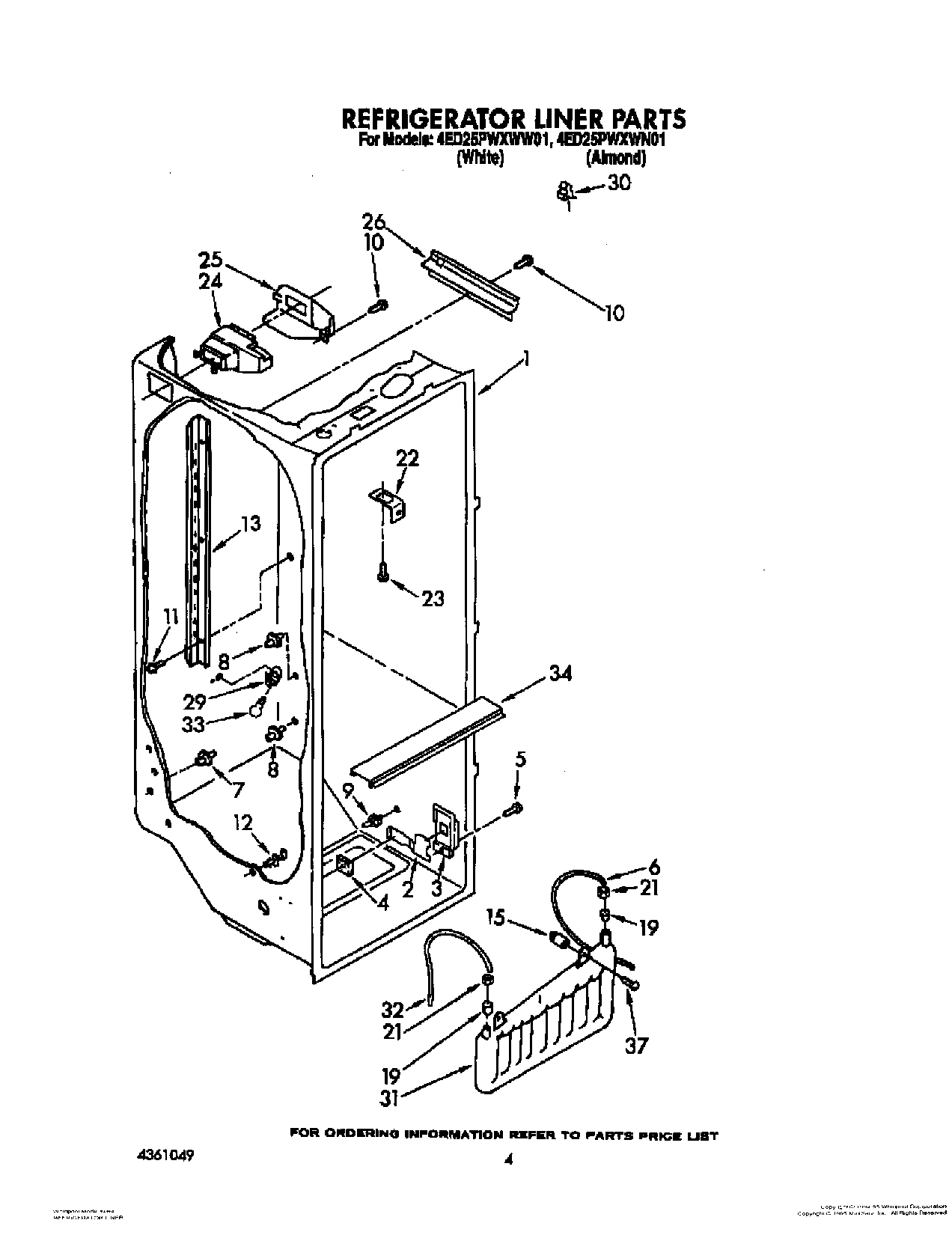

4ED25PWXWW01 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide, Meat Pan Control
4	Pad, Foam
5	Screw, 8-15 x 1/2 (4)
6	W10823511 Whirlpool Refrigerator Water Tube
7	WP2149540 Whirlpool Shelf Support
8	4388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9	Stud (2)
10	WP489478 Whirlpool Refrigerator Screw
11	WP488729 Whirlpool Refrigerator Door Screw
13	Shelf Ladder
15	Stud, Spacer (2)
19	Insert, Tube
21	Nut, Compression
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP488488 Whirlpool Refrigerator Screw
24	WPW10151374 Whirlpool Refrigerator Diffuser
25	2152019 Whirlpool Refrigerator Cover
26	2150331 Whirlpool Refrigerator Wire Cover
29	4387478 Whirlpool Refrigerator Light Socket
30	2215823 Whirlpool Refrigerator Clip
31	WP2256126 Whirlpool Refrigerator Reservoir
32	Tube
33	RANGE ONLY 40W 120V APPL BULB
34	Light Lens
37	Screw (2)
