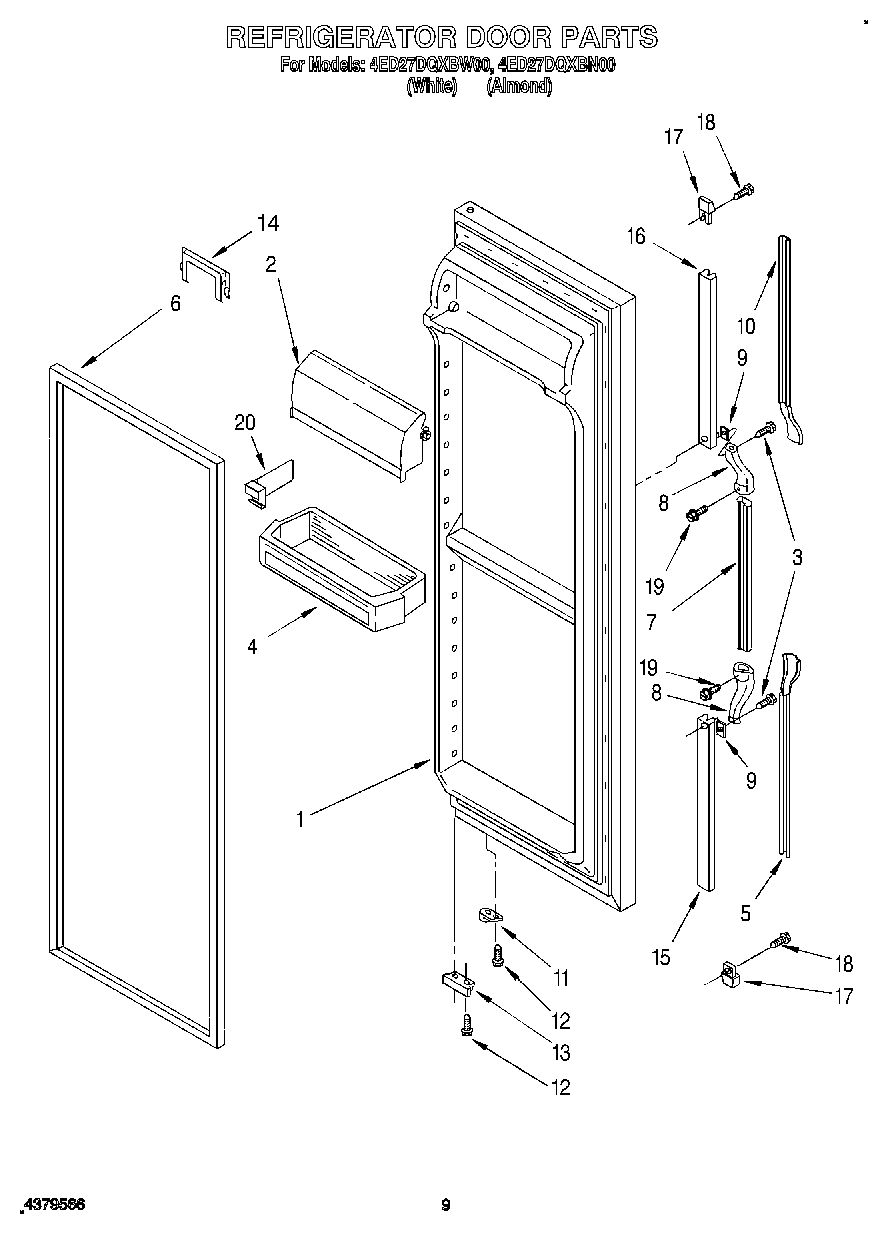

4ED27DQXBW00 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item No.8) (Almond)
2	WP2256101 Whirlpool Dairy Door
3	WP489128 Whirlpool Refrigerator Screw
4	Shelf Bin (4)
5	Insert, Handle (White)
5	Insert, Handle (Almond)
6	2159075 Whirlpool Door Gasket Seal
7	Handle, Center (White)
7	Handle, Center (Almond)
8	End Cap, Center Handle
9	Shim
10	Insert, Handle (Almond)
10	Insert, Handle (White)
11	4318165 Whirlpool Refrigerator Door Closure Cam Kit
12	WP999367 Whirlpool Refrigerator Screw
13	Bracket, Door Stop (Chrome)
14	Retainer, Bottle
15	Retainer, Insert (Bottom)
16	Retainer, Insert
17	End Cap (2)
18	Screw
19	Screw
20	Divider (3)
