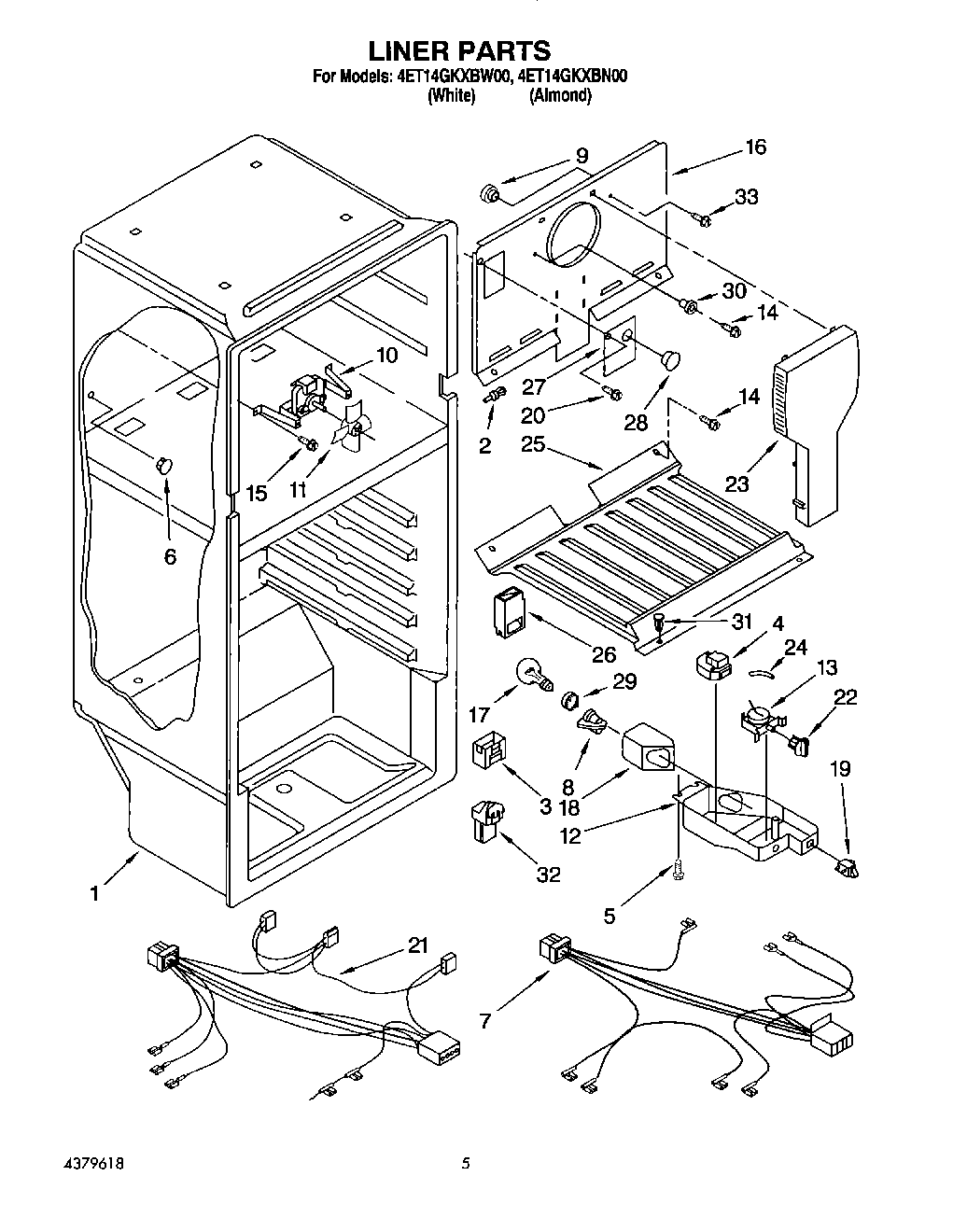

4ET14GKXBN00 03 – LINER, LIT/OPTIONAL

4ET14GKXBN00 03 – LINER, LIT/OPTIONAL

Written by

in

4ET14GKXBN00 03 – LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2174929
	WPL LIT2169465
	Torx Key
	WPW10190943 Whirlpool Refrigerator Icemaker
1	Liner (Not A Serviceable Part)
2	939962 Whirlpool Refrigerator Rivet
3	Diffuser-Air
4	WP2166867 Whirlpool Refrigerator Defrost Timer
5	WP489174 Whirlpool Refrigerator Screw
6	WP941839 Whirlpool Refrigerator Button Plug
7	2176927 Whirlpool Refrigerator Wire Harness
8	4387478 Whirlpool Refrigerator Light Socket
9	Grommet
10	Fan Motor & Bracket Assy.
11	Fan Blade
12	2215213 Whirlpool Refrigerator Control Box
13	Thermostat
14	WP488163 Whirlpool Refrigerator Screw
15	WP489478 Whirlpool Refrigerator Screw
16	Cover-Evaporator
17	WP67002552 Whirlpool Refrigerator Light Bulb
18	W11034434 Whirlpool Refrigerator Light Lens
19	W11384469 Whirlpool Door Switch
20	WP488729 Whirlpool Refrigerator Door Screw
21	Wiring, Freezer
22	WP2202885 Whirlpool Refrigerator Thermal Knob
23	Air Tower
24	WP2196003 Whirlpool Refrigerator Bar Riser
25	Freezer Floor
26	Air Diffuser
27	WP2217784 Whirlpool Refrigerator Cover
28	Hole Plug
29	WP2175210 Whirlpool Refrigerator Shroud
30	Sleeve
31	WP489115 Whirlpool Refrigerator Rivet
32	Hood & Foil Assembly
33	212643 Whirlpool Refrigerator Permagum Sealer
33	350942 Whirlpool Spray Paint
33	CEMENT, ALUMILASTIC (1 1/4 OZ.)
33	Almond (Uncut)
33	WP72107 Whirlpool Touchup
33	799344 Whirlpool Refrigerator Paint
33	72017 Whirlpool Appliance Touch-Up Paint White
33	511873 Whirlpool Refrigerator Paint
33	Door Reversal Instructions
33	WPL 799832
33	WPL 799833
33	WPL 876029
33	WP542638 Whirlpool Refrigerator Grease
33	WP505587 Whirlpool Refrigerator Sealer
33	285006 Whirlpool Spray
33	72032 Whirlpool Touch Up Paint Black
33	WP503695 Whirlpool Refrigerator Sealer
33	876370 Whirlpool Refrigerator Insulation
33	TAPE, VINYL (3/4 X 108“)
33	833938 Whirlpool Refrigerator Terminal
33	WP489474 Whirlpool Refrigerator Screw
33	350930 Whirlpool White Spray Paint
33	606755 Whirlpool Refrigerator Bag
33	350956 Whirlpool Spray Assembly
