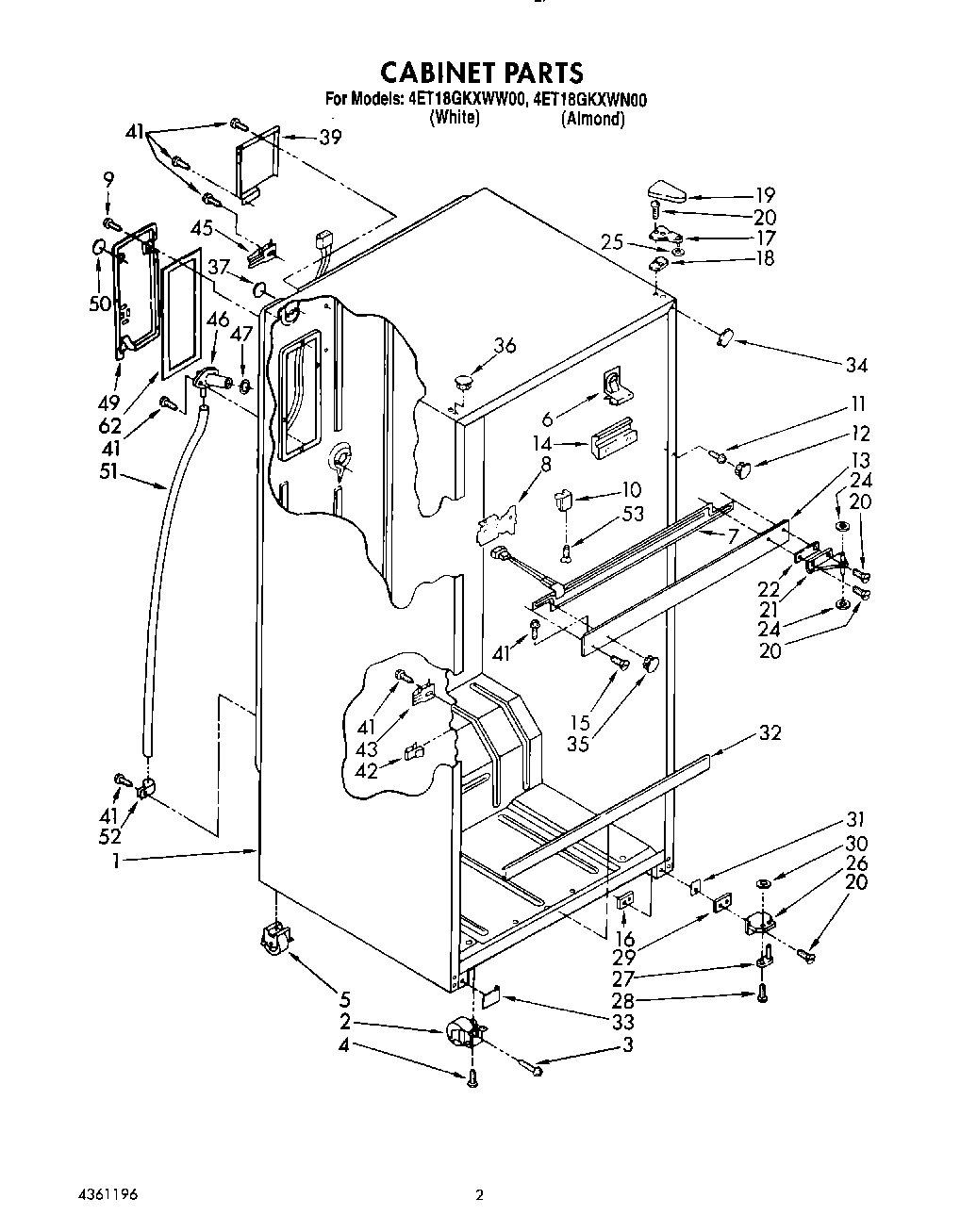

4ET18GKXWN00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
4	Screw, 10-32 x 1/2
5	Roller, Rear
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Spacer (3)
11	Screw, 8-32 x 1/2 (2)
12	Hole Plug (2) (White)
12	Hole Plug (2) (Almond)
13	Center Rail (Almond)
13	Center Rail (White)
14	Center, Rail Shim (2)
15	Screw
16	Tap Plate (2)
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
24	WP489467 Whirlpool Hinge Shim
25	WP487576 Whirlpool Washer
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (White)
33	WPL 944831
33	WPL 943552
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (Almond)
35	Hole Plug (White)
36	Hole Plug (6) (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
37	Hole Seal
39	WPL 942845
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
50	WPL 1120224
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
53	WP488163 Whirlpool Refrigerator Screw
62	WPL 1106510
