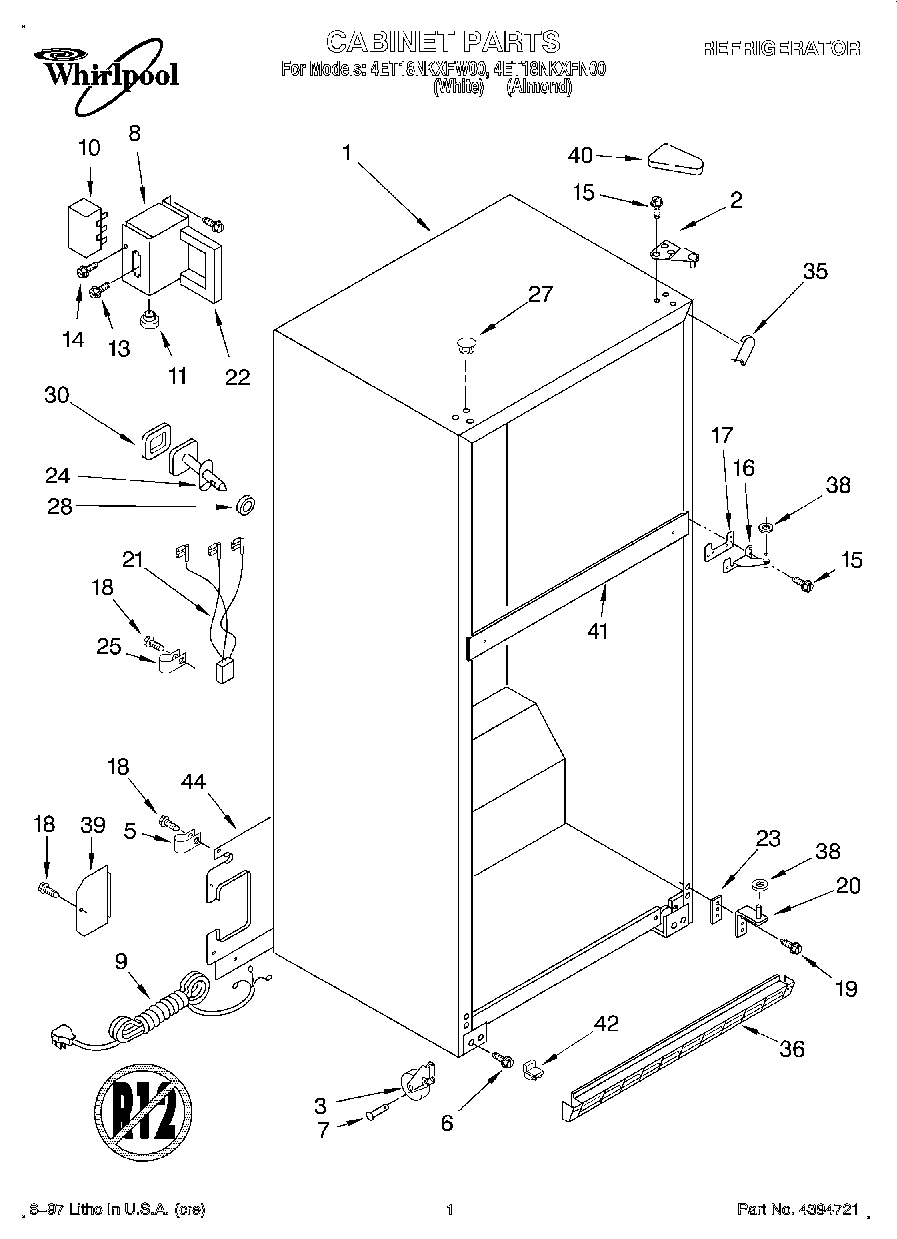

4ET18NKXFN00 01 – CABINET

4ET18NKXFN00 01 – CABINET

Written by

in

4ET18NKXFN00 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
5WP488366 Whirlpool Refrigerator Clamp
6Screw
7W11594405 Whirlpool Axle
8Enclosure, Term.
9Service Cord
10Terminal Block
11Bushing
13WPW10272364 Whirlpool Refrigerator Screw
14WP489399 Whirlpool Refrigerator Screw
15WP999367 Whirlpool Refrigerator Screw
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
19WP489497 Whirlpool Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
21Wire Assembly, Terminal Box
22Gasket
23Shim, Bottom Hinge
24Fitting, Water Tube (Not Serviced)
25489348 Whirlpool Refrigerator Tube Clamp
26WP489467 Whirlpool Hinge Shim
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
36Grille (Almond)
36Grille (White)
38WP487576 Whirlpool Washer
39Cover, Water Valve
40WP2213360 Whirlpool Refrigerator Cover
40Cover, Hinge (Almond)
41Rail Center (Not Serviced)
42Corner Filler, Grille (Almond)
42Corner Filler, Grille (White)
44WP2189475 Whirlpool Refrigerator Unit Cover
