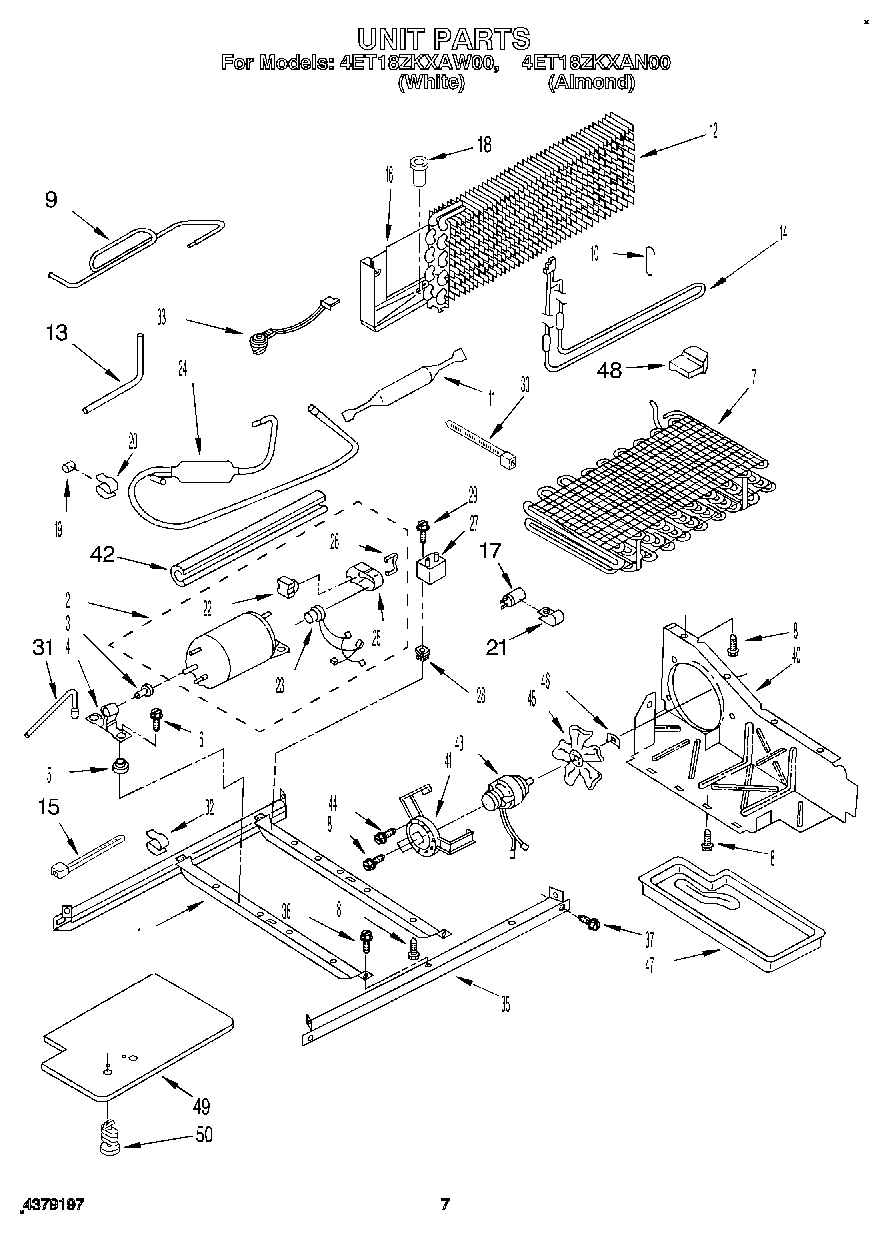

4ET18ZKXAW00 06 – UNIT

Products

Position	Product
1	Unit, Frame
2	Compressor Kit (Includes Items 11, 22, 23, 25, 26, 27 & 51)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser Assembly
8	WP489464 Whirlpool Refrigerator Screw
9	Tube, Discharge
10	Support, Heater
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Tube, Condenser To Heat Loop
14	Heater, Defrost
16	Drain Pan & Heat Shield
17	Capacitor, Start
18	Drain Fitting
19	WP2158826 Whirlpool Refrigerator Dampener
20	W10169512 Whirlpool Clip
21	Clamp
22	Relay
23	Overload
24	Muffler
25	Terminal Cover
26	Strap, Cover
27	Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	WPW10339879 Whirlpool Wire Tie
31	Tube, Process
32	Clip, Wire (2)
33	WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
35	Unit, Rail
36	WP489427 Whirlpool Refrigerator Screw
37	489340 Whirlpool Refrigerator Screw
40	Air, Baffle
41	Fan, Motor Bracket
42	WP2002171 Whirlpool Refrigerator Sleeve
43	8201703 Whirlpool Refrigerator Condenser Motor
44	681390 Whirlpool Refrigerator Screw
45	Fan Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Tray, Evaporator
48	Wedge, Air Baffle
49	Cover, Unit Bottom
50	VALVE, ACCESS (1/2“)
50	489396 Whirlpool Refrigerator Clip
50	WP978025 Whirlpool Refrigerator Valve
50	978030 Whirlpool Refrigerator Valve
50	978027 Whirlpool Refrigerator Primary Valve
50	978026 Whirlpool Refrigerator Primary Valve
50	VALVE, ACCESS (5/8“)
50	876764 Whirlpool Refrigerator Primary Valve
