4ET20ZKXDW01 05 – SHELF, LIT/OPTIONAL

4ET20ZKXDW01 05 – SHELF, LIT/OPTIONAL

Written by

in

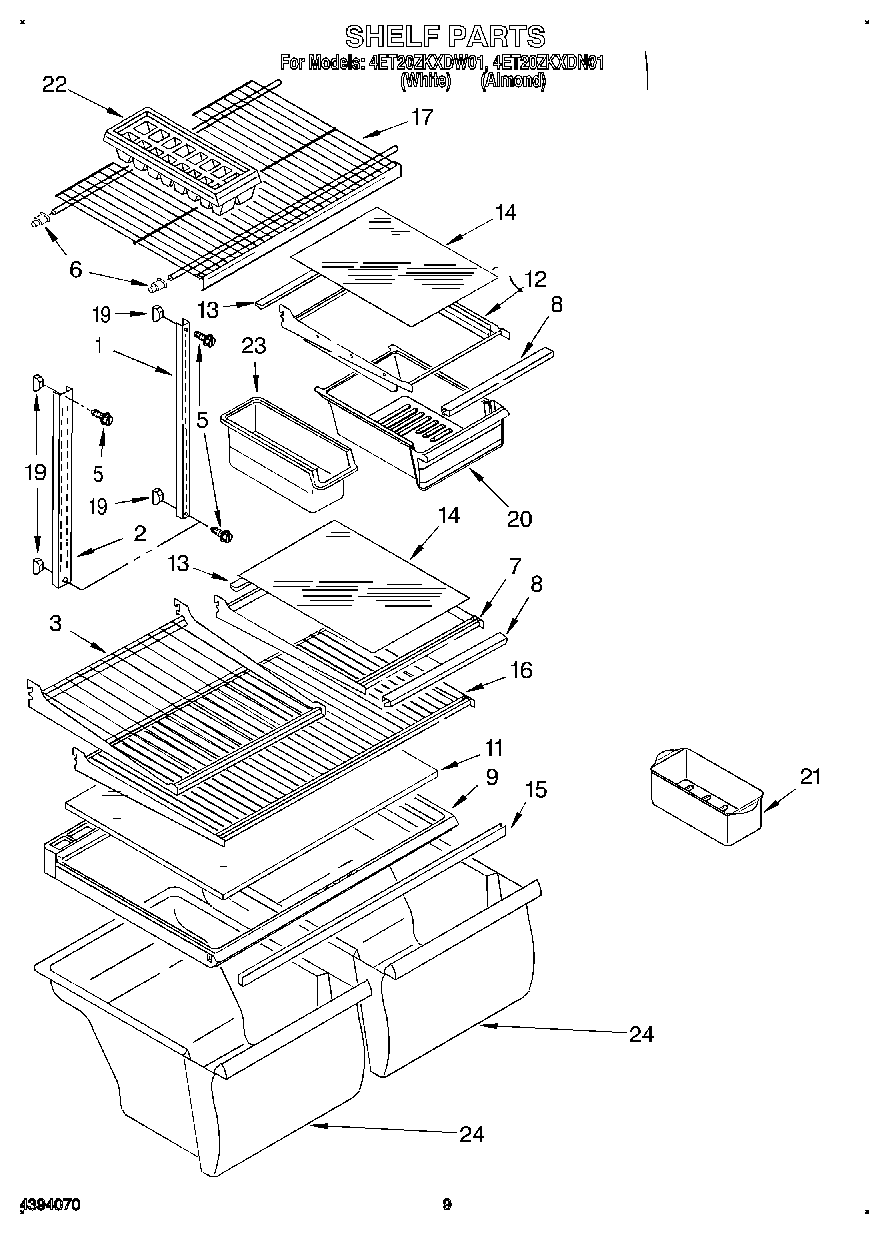

4ET20ZKXDW01 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2166928
Torx Key
WPL LIT2170417
1Shelf, Ladder (2)
2Shelf, Ladder Center
3Shelf, Half Cantilever
5W11544659 Whirlpool Refrigerator Screw
62163762 Whirlpool Refrigerator Cup Assembly
7Shelf, Cantilever
8Trim, Shelf
9WP2314549 Whirlpool Refrigerator Cover
11WP2176225 Whirlpool Glass Shelf
12Pan Shelf, Cantilever
13Retainer, Glass
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Shelf, Full Cantilever
17Shelf, Freezer
19520965 Whirlpool Refrigerator Support
20WP2218132K Whirlpool Crisper Meat Pan
21W10136387A Whirlpool Refrigerator Egg Container
22WP841180A Whirlpool Microwave Glass Turntable Tray
23WP982704 Whirlpool Refrigerator Container
24285006 Whirlpool Spray
24350942 Whirlpool Spray Paint
24212643 Whirlpool Refrigerator Permagum Sealer
24WP72107 Whirlpool Touchup
24350930 Whirlpool White Spray Paint
24WPL 876029
2472017 Whirlpool Appliance Touch-Up Paint White
24350956 Whirlpool Spray Assembly
24CEMENT, ALUMILASTIC (1 1/4 OZ.)
24511873 Whirlpool Refrigerator Paint
24606755 Whirlpool Refrigerator Bag
24876370 Whirlpool Refrigerator Insulation
2472032 Whirlpool Touch Up Paint Black
24WP505587 Whirlpool Refrigerator Sealer
24WP503695 Whirlpool Refrigerator Sealer
24WPL 799833
24WP542638 Whirlpool Refrigerator Grease
24W10854037 Whirlpool Refrigerator Crisper Pan
24TAPE, VINYL (3/4 X 108“)
24Door Reversal Instructions
24WPL 799832
