4ET20ZKXDW02 04 – UNIT

4ET20ZKXDW02 04 – UNIT

Written by

in

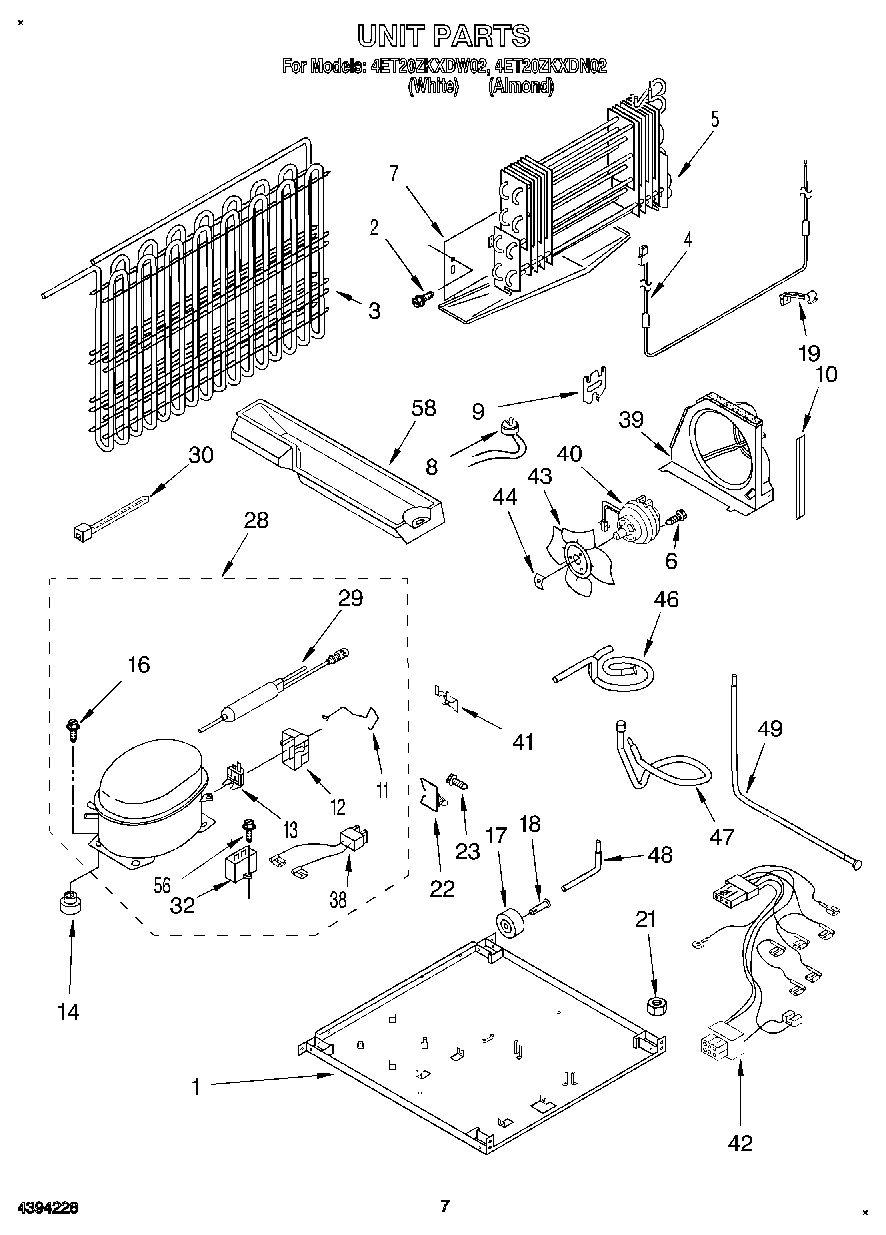

4ET20ZKXDW02 04 – UNIT

Products

PositionProduct
1Plate, Unit Mounting
2WP489478 Whirlpool Refrigerator Screw
3Condenser
4Heater, Defrost
5Evaporator Assy.
6Screw
7Drain Pan
8WP2182381 Whirlpool Refrigerator Bimetallic Defrost
9Bracket, Heater
10Extension, Air Baffle
11Clamp (Production Only)
12WP2162358 Whirlpool Refrigerator Terminal Cover
132169410 Whirlpool Refrigerator Overload
14W11661108 Whirlpool Grommet
14876811 Whirlpool Grommet
16SCREW
17Roller (2)
18W11594405 Whirlpool Axle
19Clip, Heater
21Nut (Not Serviced)
22Clip, Wire
23W11693756 Whirlpool Screw Assembly
28876765 Whirlpool Primary Mounting Kit Refrigerator
28Compressor (Includes Items 11, 12, 13, 14, 15, 21, 29, 32, 38 And 56) (Also Order)
28Installation Kit
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
32WP2201147 Whirlpool Refrigerator Capacitor
32Capacitor
38WP2172890 Whirlpool Refrigerator Wire
39Air Baffle
408201703 Whirlpool Refrigerator Condenser Motor
41Clip, Capacitator
42Wire Assy. Unit
43Fan, Blade
44WP486692 Whirlpool Refrigerator Nut
46Tube, Discharge
47Tube, Suction
482154109 Whirlpool Refrigerator Tube
49Tube, Condenser To Heat Loop
58VALVE, ACCESS (5/8“)
58876764 Whirlpool Refrigerator Primary Valve
58Evap. Tray
58VALVE, ACCESS (1/2“)
58WP978025 Whirlpool Refrigerator Valve
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58Start Kit
