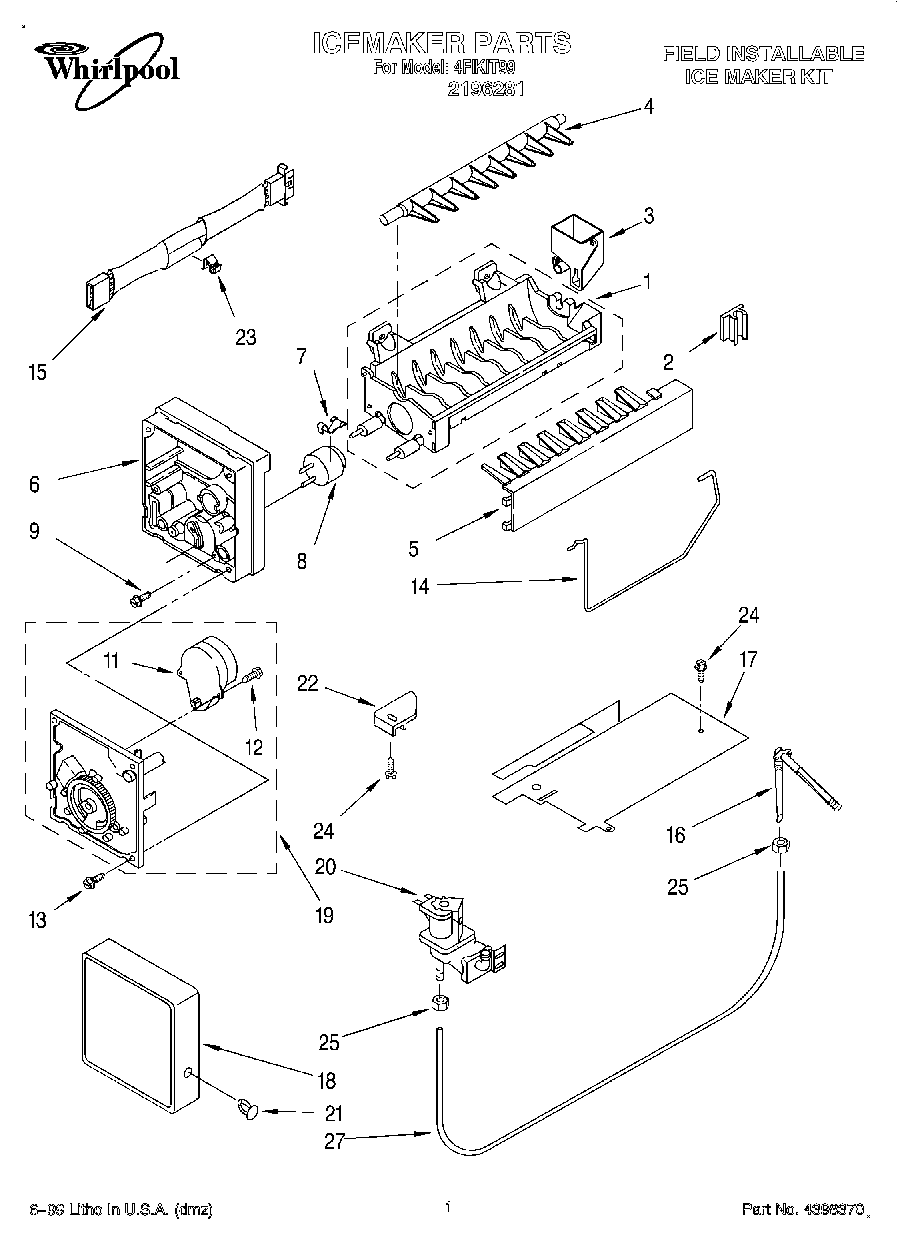

4FIKIT99 01 – SECTION

4FIKIT99 01 – SECTION

Written by

in

4FIKIT99 01 – SECTION

Products

Position	Product
	WPL LIT628371
	Instruction Booklet
1	WPW10122523 Whirlpool Refrigerator Ice Mold
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Cement Alumilastic)
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	8533917 Whirlpool Refrigerator Screw
11	W10190933 Whirlpool Refrigerator Motor Assembly
12	489136 Whirlpool Refrigerator Screw
13	WP681249 Whirlpool Screw Assembly
14	WP627792 Whirlpool Refrigerator Shut Off Arm
15	WP2187464 Whirlpool Refrigerator Wire Harness
16	WP2196157 Whirlpool Fill Tube
17	2256178 Whirlpool Shield Assembly
18	WPW10289690 Whirlpool Ice Maker Cover
20	Valve, Solenoid
21	WP489115 Whirlpool Refrigerator Rivet
22	W11500948 Whirlpool Refrigerator Bracket
23	WP628379 Whirlpool Refrigerator Clip
27	Tube, Water Inlet
27	Accessory Bag, Outside Parts
27	WPW10141625 Whirlpool Refrigerator Screw Assembly
27	Washer
27	Accessory Bag, Inside Parts
27	W11501419 Whirlpool Refrigerator Clip
27	Nut, Valve
27	WP627712 Whirlpool Refrigerator Mounting Clip
27	Tube, Inlet
27	Clamp Tube
27	Trim Ice Cube Pan
27	WP489069 Whirlpool Compactor Screw
27	WP1106508 Whirlpool Refrigerator Gasket
27	WP489478 Whirlpool Refrigerator Screw
27	WP2158826 Whirlpool Refrigerator Dampener
27	WP488163 Whirlpool Refrigerator Screw
27	WP488366 Whirlpool Refrigerator Clamp
27	549193 Whirlpool Refrigerator Power Clamp
27	4387491 Whirlpool Refrigerator Insert
27	W10823511 Whirlpool Refrigerator Water Tube
27	WP627018 Whirlpool Refrigerator Nut
27	WP488878 Whirlpool Refrigerator Tube Clamp
27	PAN-ICE
100	WPL 2196281
