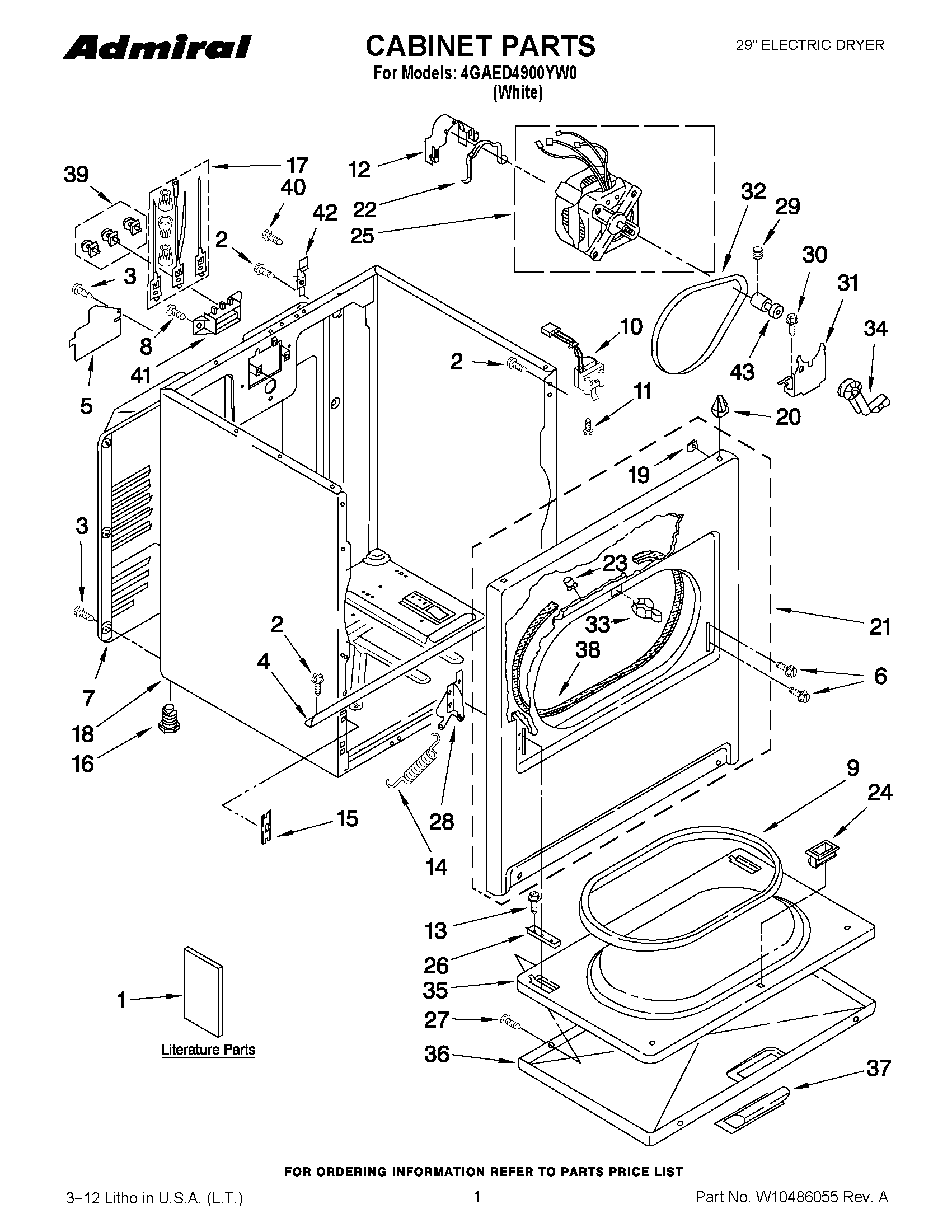

4GAED4900YW0 01 – CABINET PARTSadmin2025-04-26T09:13:48+00:004GAED4900YW0 01 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY W10396180 |
| 1 | MAY W10454274 |
| 1 | MAY W10462985 |
| 2 | SCREW |
| 3 | Screw |
| 4 | MAY W10236073 |
| 5 | MAY 3396795 |
| 6 | MAY 342043 |
| 7 | MAY 3396805 |
| 8 | SCREW, 10-16 X 1/2 |
| 9 | MAY 3390731 |
| 10 | MAY 3406109 |
| 11 | SCREW |
| 12 | Clamp, Motor (With Shield) |
| 13 | SCREW |
| 14 | MAY W10041960 |
| 15 | MAY 3394083 |
| 16 | MAY 3392100 |
| 17 | TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT) |
| 18 | CABINET (WHITE) |
| 19 | Clip, Ground |
| 20 | MAY 8066092 |
| 21 | PANEL, FRONT (WHITE) |
| 22 | CLAMP, MOTOR MOUNT |
| 23 | Clip, Felt Pad |
| 24 | DOOR CATCH ASSEMBLY |
| 25 | ASSEMBLY, MOTOR (50 HZ) |
| 26 | MAY 337189 |
| 27 | MAY 342055 |
| 28 | HINGE ASSEMBLY (RIGHT SIDE) |
| 28 | HINGE ASSEMBLY (LEFT SIDE) |
| 29 | Screw, Set |
| 30 | BOLT |
| 31 | MAY 348780 |
| 32 | MAY W10131364 |
| 33 | MAY 696144 |
| 34 | IDLER ASSEMBLY |
| 35 | MAY 695737 |
| 36 | Door, Front (White) |
| 37 | MAY W10095180 |
| 38 | MAY 3406129 |
| 39 | MAY 279393 |
| 40 | SCREW |
| 41 | MAY 3397659 |
| 42 | Hinge, Top |
| 43 | PULLEY, MOROR 60 HZ. |
