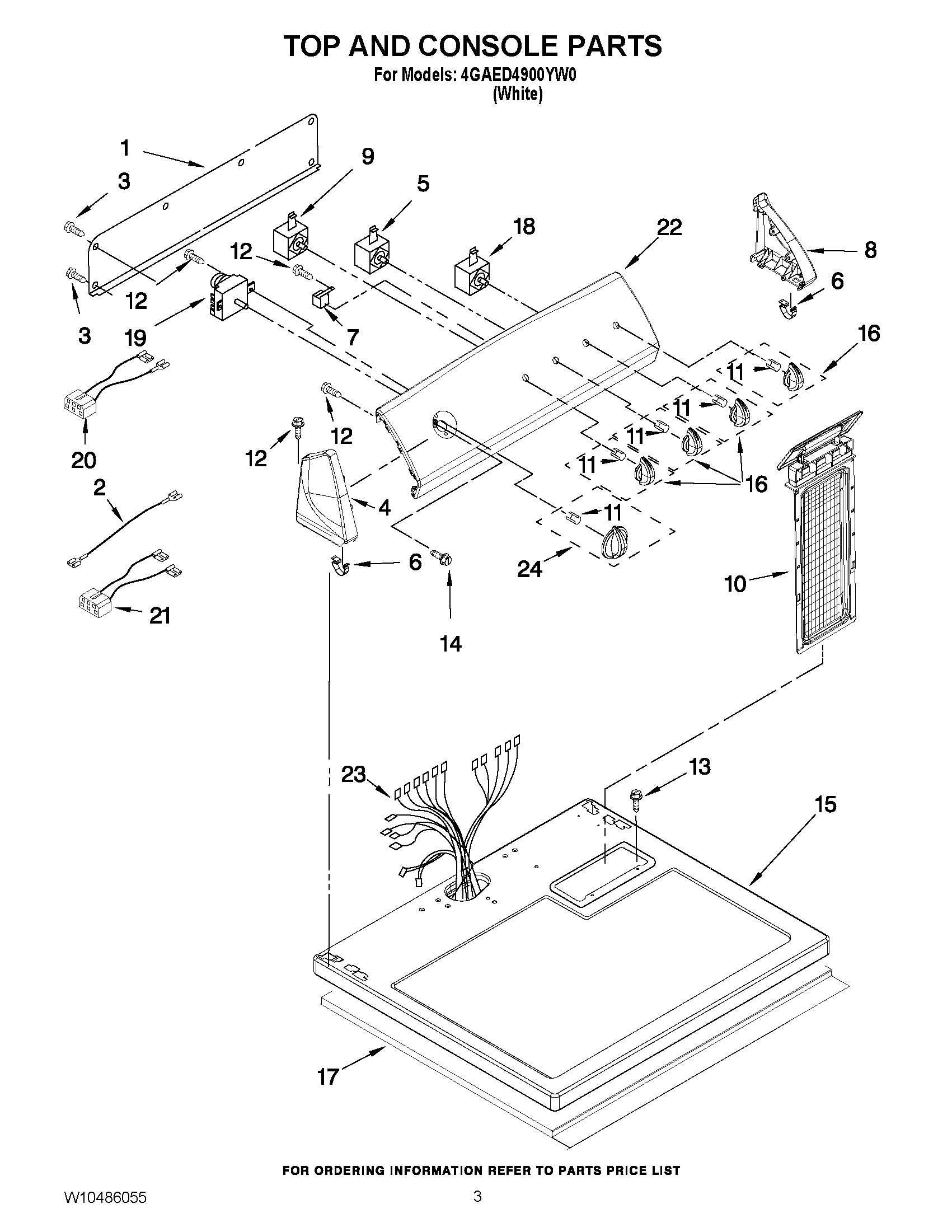

4GAED4900YW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	WIRE, JUMPER (BUZZER)
3	Screw
4	MAY W10251358
5	MAY 3405156
6	MAY 8312709
7	MAY 3952439
8	MAY W10251355
9	Switch, Temperature
10	LINT SCREEN WHITE
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	MAY 8533974
15	MAY 8559800
16	MAY W10196503
17	MAY W10123956
18	MAY W10112668
19	MAY 3979618
20	Jumper, Gaurd On/Off
21	Jumper, Three Temperature
22	MAY W10484642
23	MAY W10386312
24	Timer Knob Assembly
