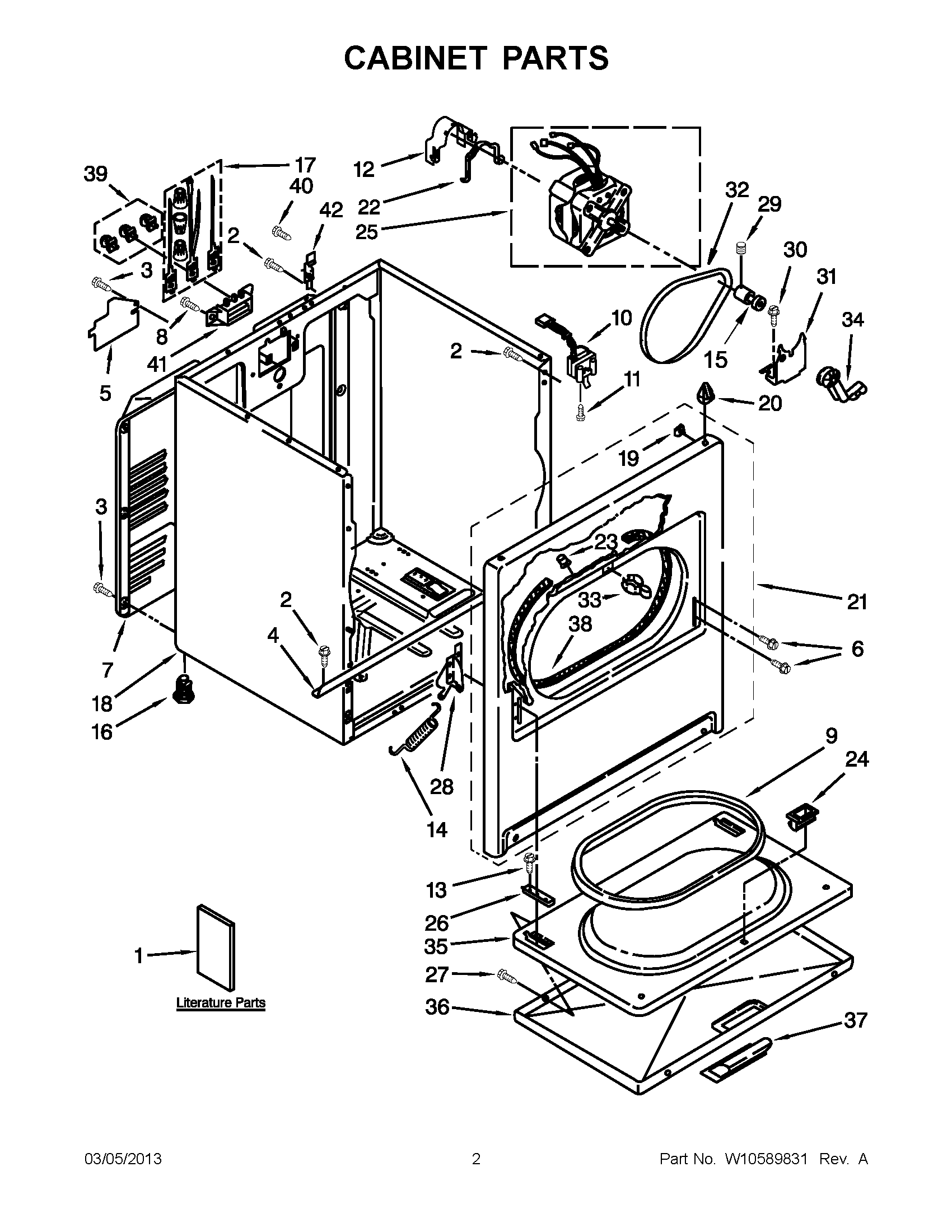

4GAED4900YW1 01 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY W10462985
1	MAY W10396180
1	MAY W10454274
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	MAY 342043
7	MAY 3396805
8	SCREW, 10-16 X 1/2
9	MAY 3390731
10	MAY 3406109
11	SCREW
12	Clamp, Motor (With Shield)
13	SCREW
14	MAY W10041960
15	PULLEY, MOROR 60 HZ.
16	MAY 3392100
17	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	PANEL, FRONT (WHITE)
22	CLAMP, MOTOR MOUNT
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	ASSEMBLY, MOTOR (50 HZ)
26	MAY 337189
27	MAY 342055
28	HINGE ASSEMBLY (RIGHT SIDE)
28	HINGE ASSEMBLY (LEFT SIDE)
29	Screw, Set
30	BOLT
31	MAY 348780
32	MAY W10131364
33	MAY 696144
34	IDLER ASSEMBLY
35	MAY 695737
36	Door, Front (White)
37	MAY 8559777
38	MAY 3406129
39	MAY 279393
40	SCREW
41	MAY 3397659
42	Hinge, Top
