4GAED4900YW2 02 – TOP AND CONSOLE PARTS

4GAED4900YW2 02 – TOP AND CONSOLE PARTS

Written by

in

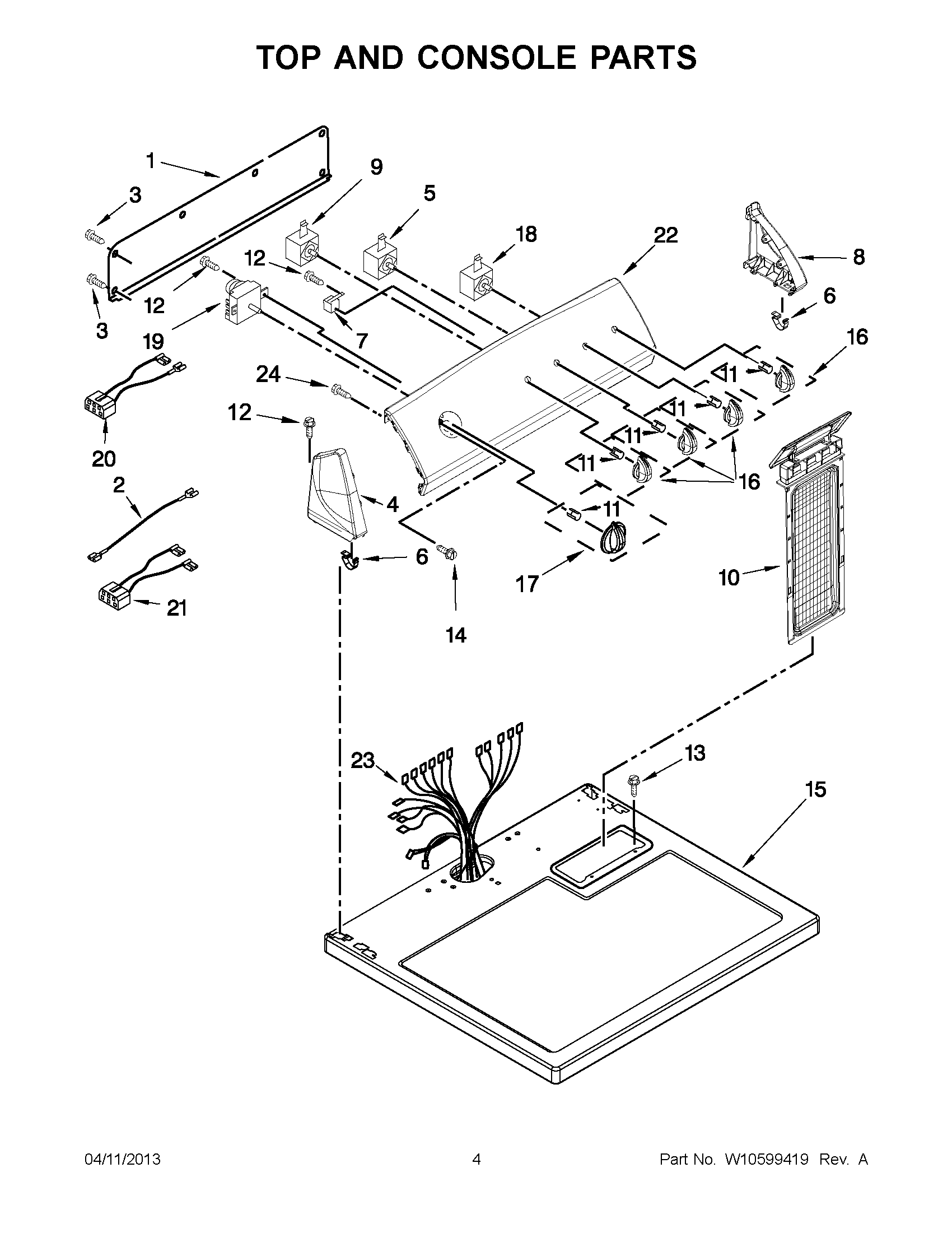

4GAED4900YW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	WIRE, JUMPER (BUZZER)
3	Screw
4	MAY W10251358
5	MAY 3405156
6	MAY 8312709
7	MAY 3952439
8	MAY W10251355
9	Switch, Temperature
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	MAY 3348629
13	SCREW
14	MAY 8533974
15	MAY 8559800
16	MAY W10327523
17	MAY W10327522
18	MAY W10112668
19	MAY 3979618
20	MAY W10521801
21	Jumper, Three Temperature
22	MAY W10484642
23	MAY W10386312
24	SCREW
