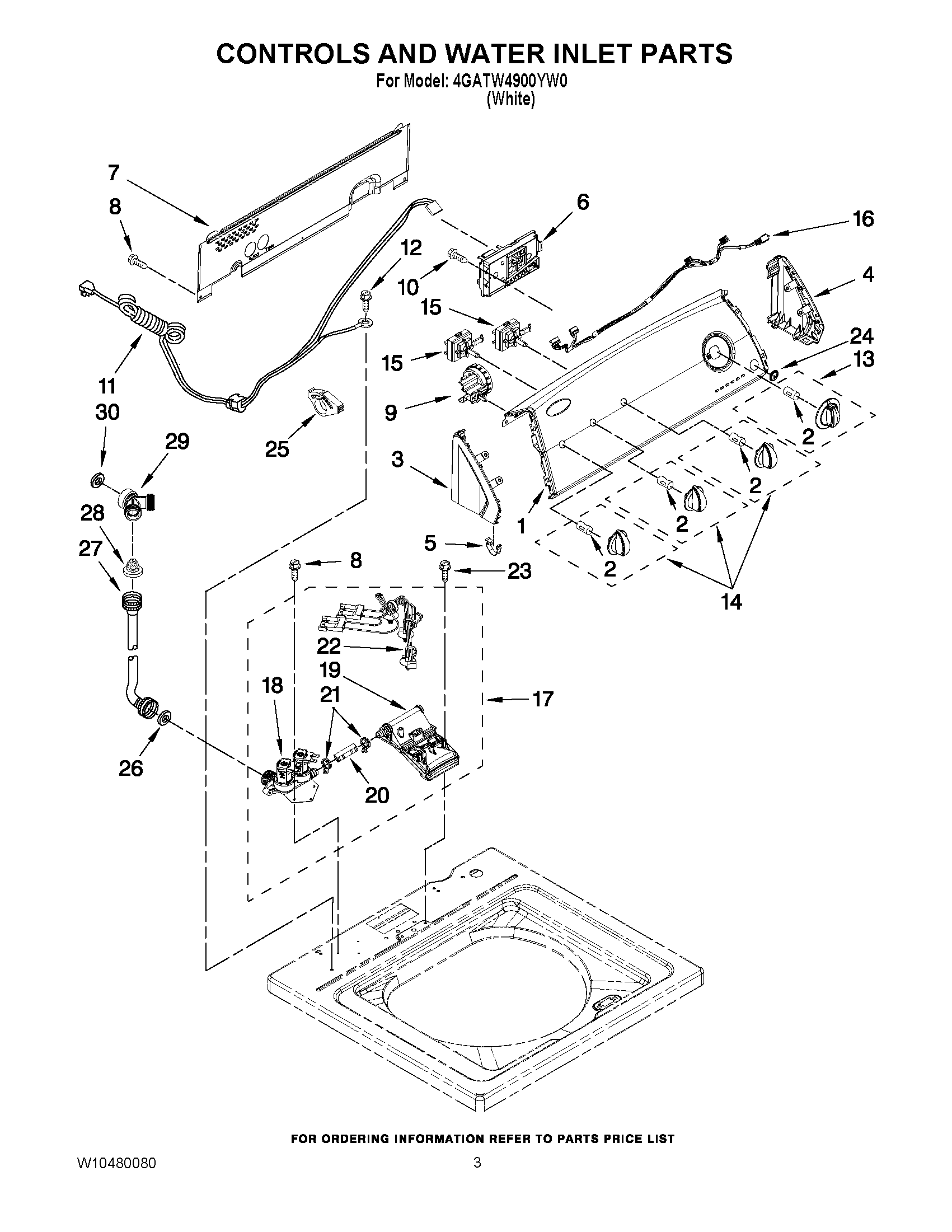

4GATW4900YW0 02 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	CONSOLE
2	CLIP, SPRING
3	MAY W10251358
4	MAY W10251355
5	MAY 8312709
6	MAY W10455313
7	MAY W10420985
8	MAY 1157158
9	MAY W10268912
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	Timer Knob Assembly
14	MAY W10196503
15	SWITCH, ROTARY ENCODER
16	MAY W10291174
17	MAY W10337066
18	MAY W10336726
19	MAY W10441423
20	MAY W10238347
21	MAY W10117298
22	MAY W10344775
23	Screw
24	MAY W10251309
25	CLAMP, HOSE
26	ACCESSORY PARTS, WASHER, HOSE
27	MAY W10194210
27	HOSE, INLET (HOT)
28	MAY 353362
29	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
30	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
